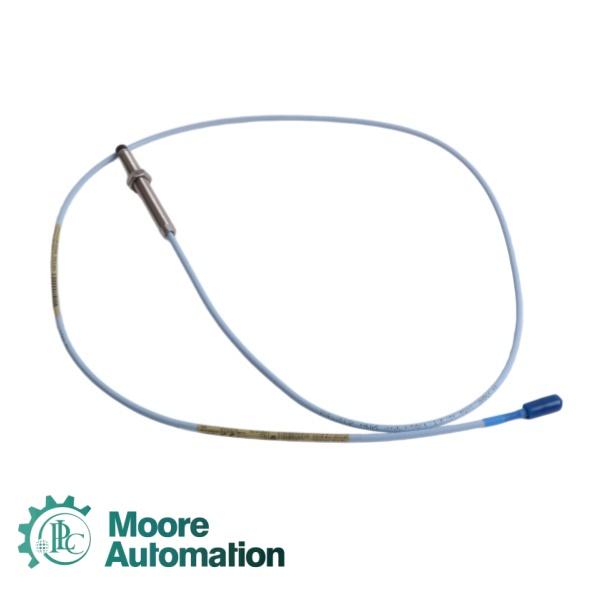

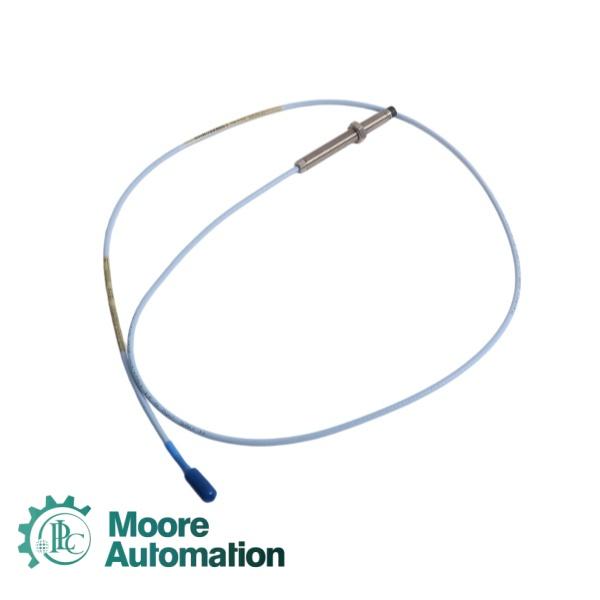

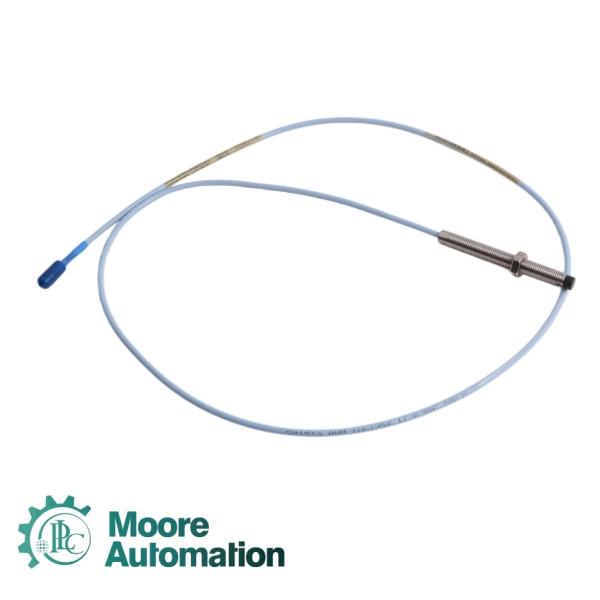

Bently Nevada 330101-00-32-05-01-05 3300 XL 8 mm Proximity Probes

Item Overview

This module 330101-00-32-05-01-05 is a 3300 XL 8 mm Proximity Probe from Bently Nevada. It features a 3/8-24 UNF thread and is supplied without armor. The 3-meter total length option is only available on 330101 probes and is designed for use with the 9-meter Proximitor sensor only. However, this specific model has a 0.5 meter total length, which is intended for use with a 5-meter system Proximitor sensor.

Performance Specifications

Unthreaded Length:

0 0

0.0 in

Overall Case Length:

3 2

3.2 in

Total Length:

0 5

0.5 meter (1.6 feet)

Connector and Cable-Type:

0 1

Miniature coaxial ClickLoc connector with connector protector, standard cable

Agency Approval:

0 5

CSA, ATEX, IECEx  Approvals

Output Resistance:

   50 Ω

Current Consumption:

   ≤12 mA

Frequency Response:

   0 to 10 kHz (+0, -3 dB)

Application

 Radial shaft vibration monitoring – Measures vibration on fluid-film bearing machines such as steam turbines, gas turbines, compressors, and large pumps.

 Axial (thrust) position measurement – Monitors rotor axial displacement to detect thrust bearing wear and prevent rotor-to-stator rub.

 Shaft eccentricity measurement – Detects rotor bow during startup or shutdown of large turbines.

 Differential expansion monitoring – Measures relative thermal growth between rotor and stator in steam turbines and compressors.

 Bearing wear detection – Enables early identification of bearing degradation and shaft misalignment.

 Condition monitoring of critical assets – Integrates into API 670 compliant machinery protection systems for predictive maintenance.

 0.5 meter total length – Ideal for compact installations where the Proximitor sensor is mounted close to the measurement point.

 3/8-24 UNF thread – Standard imperial thread for North American machine casings.

FAQ

Question

Answer

Q1：What hazardous area approvals does it have?

A1: CSA, ATEX, and IECEx (Option 05).

Q2：Does it have a connector protector?

A2: Yes, Option 01 includes a connector protector.

Q3：What is the linear range?

A3: 2 mm (80 mils) from 0.25 mm to 2.3 mm.

Q4：What type of connector does it use?

A4: ClickLoc miniature coaxial connector.

Q5：What is the minimum target shaft diameter?

A5: 50.8 mm (2.0 in) minimum; 76.2 mm (3.0 in) recommended.
