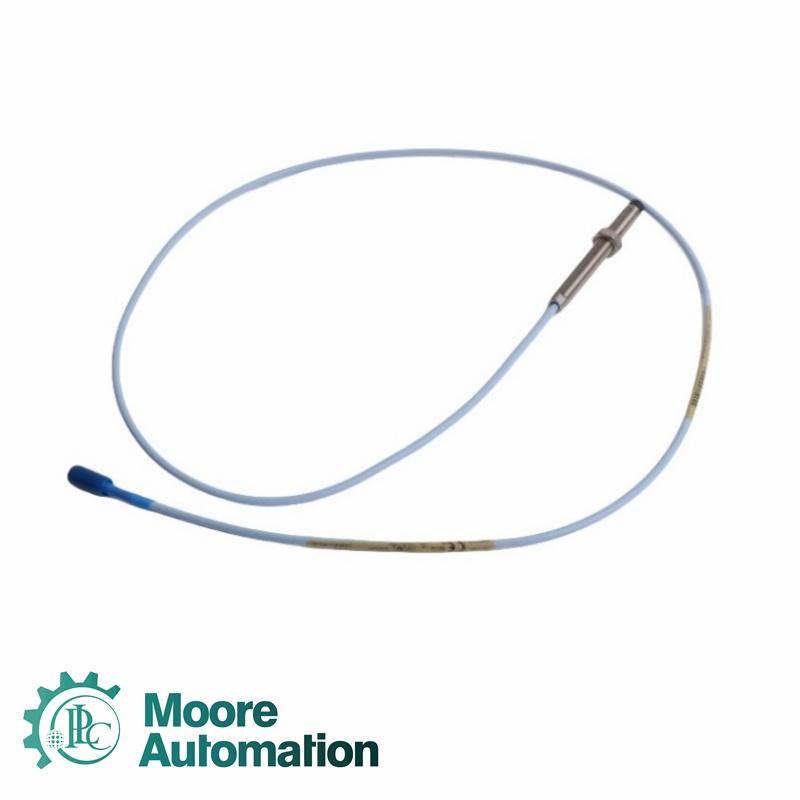

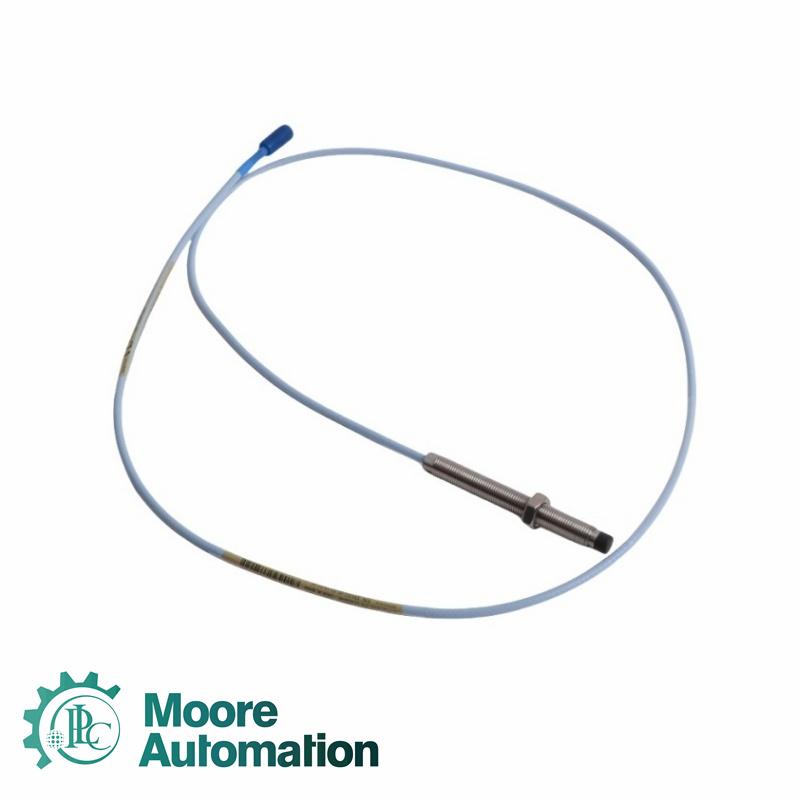

Bently Nevada 330101-00-31-15-02-05 3300 XL 8mm Proximity Probe

Sale Manager: John Yang
Email: sales3@askplc.com
Mobile(WhatsApp):  86-18150117685

Part Number: 330101-00-31-15-02-05

Unthreaded Length Option(Minimum unthreaded length): 0.0 in
Overall Case Length Option(Minimum case length): 3.1 in
Total Length Option: 1.5 meter (4.9 feet)
Connector and Cable-Type Option: Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option: CSA, ATEX, IECEx  Approvals
Probe Case Thread: 3/8-24 UNF thread
Maximum Length of Thread Engagement: 0.563 in
Dimension: 1.8x1.6x122cm
Weight: 0.08kg
Operating and Storage Temperature: -52°C to +177°C (-62°F to +350°F)
Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
Output Resistance: 50 Ω
Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
Field Wiring: 0.2 to 1.5 mm2 (16 to 24 AWG)
Linear Range: 2 mm (80 mils)

Long Description about 330101-00-31-15-02-05:

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.

1.Is this product brand new?

Yes, Bently Nevada 330101-00-31-15-02-05 is brand new, original, unused, and factory sealed

2.Do you have it in stock?

Yes, right now we have Bently Nevada 330101-00-31-15-02-05 in stock ready for shipment, we can support video inspection.

3.Why can't I see a price for this 330101-00-31-15-02-05?

In addition to "new original" " units.we also specialize in the selling "discontinued" and hard to find industrial automation parts which tend to have a fluctuating market value. These fluctuations may make it difficult for us to provide accurate daily prices for parts on our website. Therefore, in an effort to ensure that we always provide you with the best and most accurate price available, our team will source and price your part on an enquiry-by-enquiry basis.
