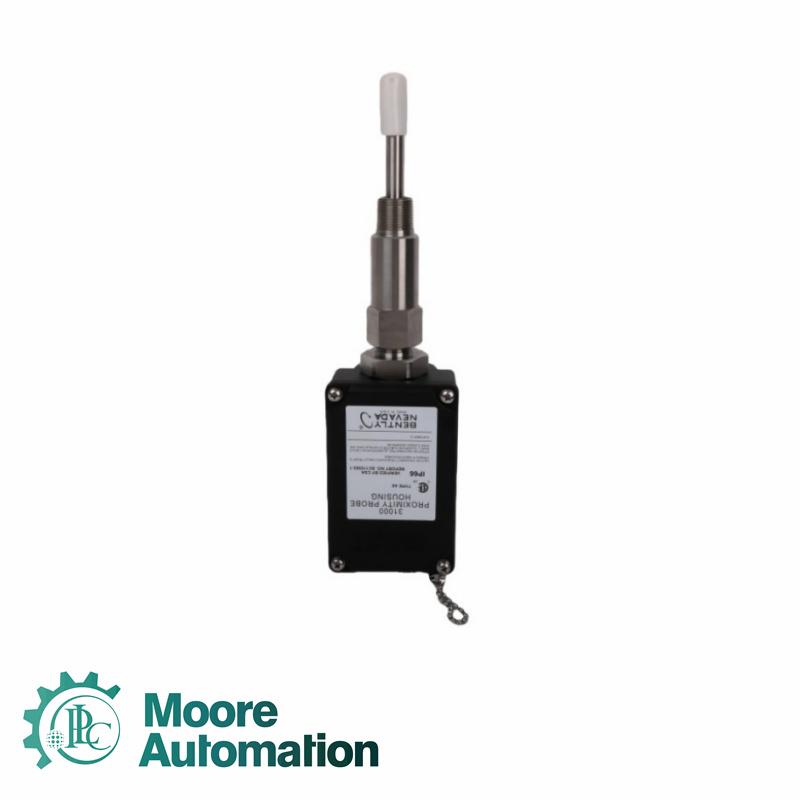

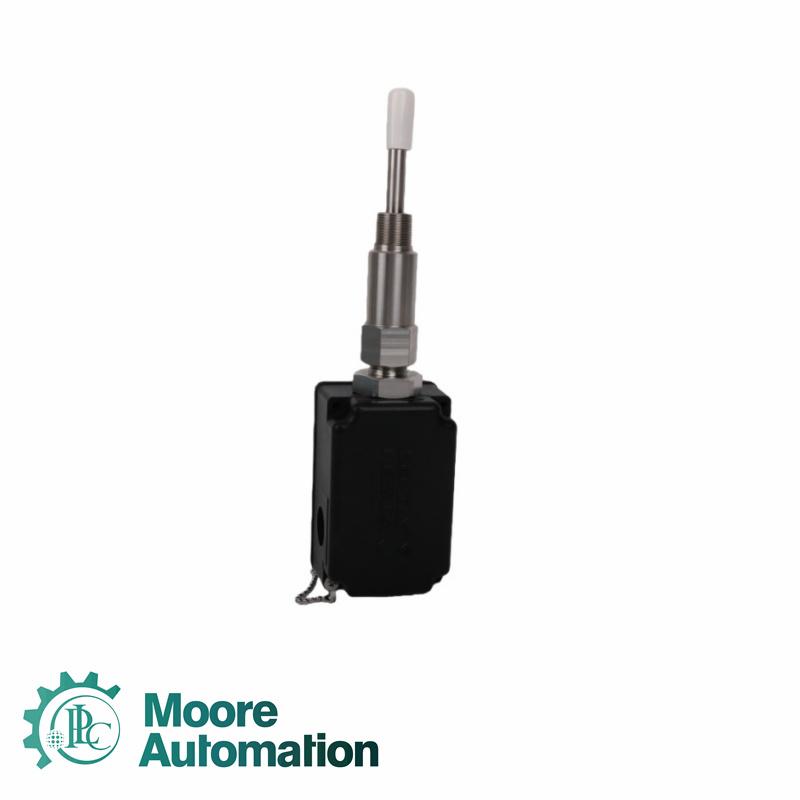

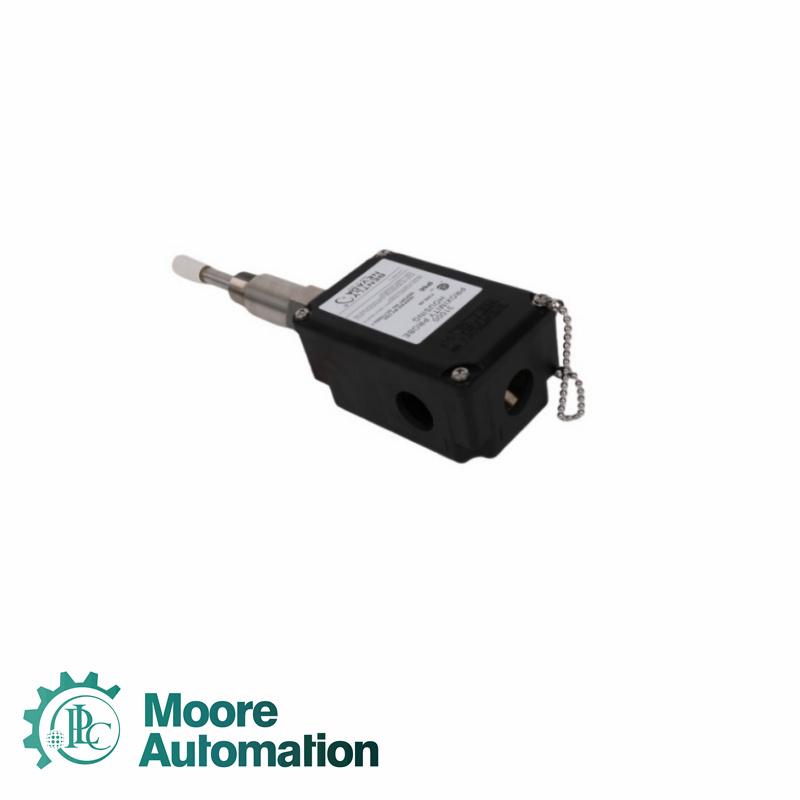

BENTLY NEVADA 31000-31-05-20-080-00-02 Proximity Probe Housing Assemblies

5-star Sale Manager--John Yang

Email

Mobile(WhatsApp)

sales3@askplc.com

86-18150117685

Long Description

31000-31-05-20-080-00-02

The 31000/32000 Proximity Probe Housing Assemblies are recommended when mounting proximity probes through the machine case and are typically used for radially mounted transducers, whether vibration or Keyphasor measurements. Use of a Proximity probe housing allows external access to the proximity probe and its extension cable, permitting gap adjustment or probe replacement without disassembly of the machine. The 31000/32000 Proximity Probe Housing Assembly is made of polyphenylene sulfide (PPS), an advanced, high-strength, thermoplastic with excellent corrosion resistance. Other elements of the housing assembly are made of corrosion-resistant stainless steel. The housing can be ordered with installed 3300 XL Proximity Probes and a variety of conduit fittings. The 31000/32000 Proximity Probe Housing Assembly is fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings. When installed in conjunction with an approved transducer system and appropriate I.S. barriers, the 31000/32000 Proximity Probe Housing Assembly can be used in intrinsically safe hazardous area applications.

Contact John Yang sales3@askplc.com , know more information.

Technical Specifications

31000-31-05-20-080-00-02

Probe with Connector:3300 XL NSv probe with connector protector
Probe Cable Length:0.5 m (20 in)
Standoff Adapter Length (Option C Dimension):2.0 in
Probe Penetration Option (Option D Dimension):8.0 in
Fittings:Without fittings
Mounting Thread Option:3/4-14 NPT (Required if ordering Standoff Adapter Option)
Dimension:37x9x8cm
Weight:1.5kg
Protection Ratings:Type 4X rating certified by Canadian Standards Association (CSA)
Housing Material:Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers
Sleeve Material and Retaining Chain:AISI 304 stainless steel
Outer Sleeve and Exterior Screws:AISI 303 stainless steel
O-Ring Material:Neoprene
Recommended Torque(retaining nut):29.4 N·m (260 in·lb)
Housing Strength (typical):Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole
Housing Impact Strength:Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F)

FAQ

Q: What are your packaging conditions of 31000-31-05-20-080-00-02?
A: Generally speaking, we pack the goods in cartons with foam padding to prevent damage to the goods.

Q: What are your payment terms of 31000-31-05-20-080-00-02?
A: 100% T/T before shipment. Western Union, credit cards are also acceptable

Q: What about your delivery time of 31000-31-05-20-080-00-02?
A: Generally 1-3 days after receiving your payment. The specific delivery time depends on the type and quantity of the order.

Q: How long is the warranty period of 31000-31-05-20-080-00-02?
A: We offer a standard one-year warranty for all new and original products.
