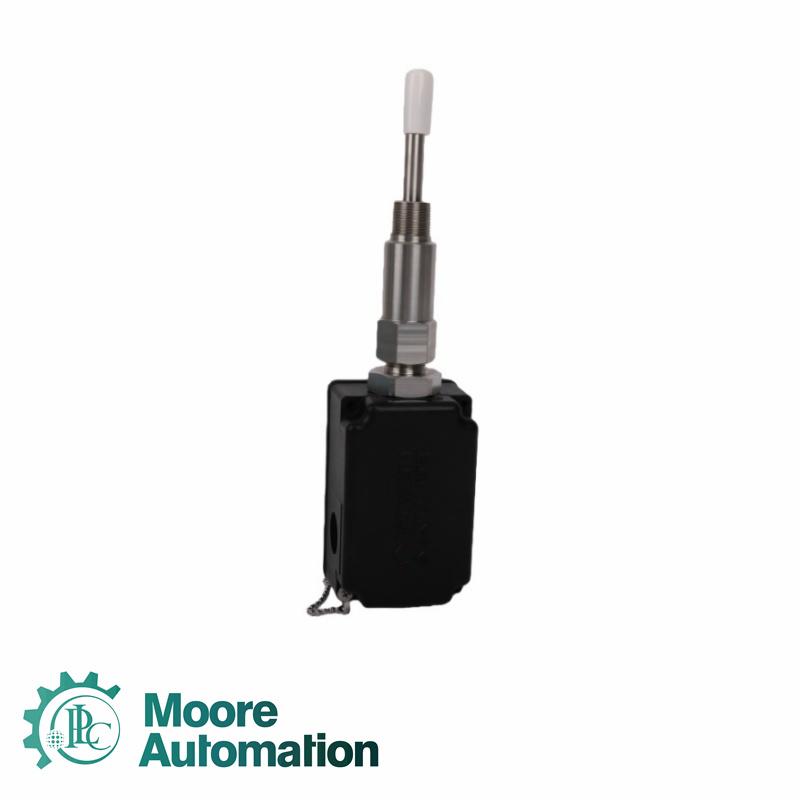

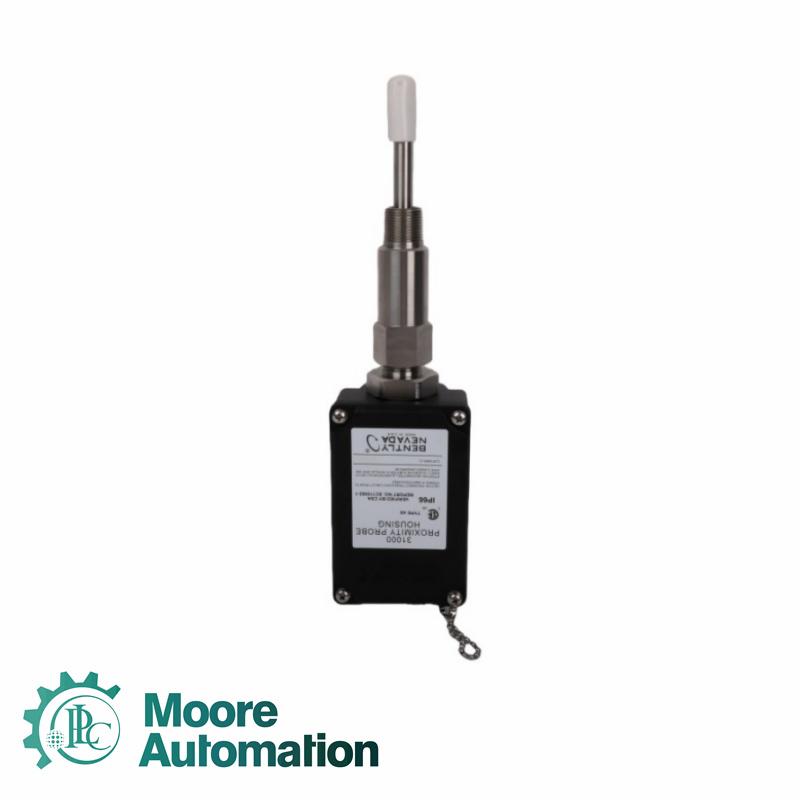

Bently Nevada 31000-29-05-15-033-03-02 Proximity Probe Housing Assemblies

Bently Nevada 31000-29-05-15-033-03-02 Proximity Probe Housing Assemblies

100% Full New
12 Months Warranty
Worldwide Shipping
Email: sales3@askplc.com

Brand:
Bently Nevada
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

31000-29-05-15-033-03-02--Contact me for a discount

Sale Manager: John Yang

Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685

31000-29-05-15-033-03-02--Quick Details

Manufacturer: Bently Nevada

Item number: 31000-29-05-15-033-03-02

Lead Time: In stock

After-Sales Support: 12-months

Product Packaging: Brand New Original

31000-29-05-15-033-03-02--100% Original New Product Specification

Probe with Connector: 3300 XL 8 mm probe, with connector protector
Probe Cable Length: 0.5 m (20 in)
Standoff Adapter Length (C Dimension): Minimum 1.5 in (38 mm)
Probe Penetration Option (D Dimension): 3.3 in
Fittings: Two plugs, one 3/4-14 NPT fitting
One 3/4-14 to 1/2-14 NPT SST reducer
One cable seal grip with grommets for
the following cable sizes:
• 1/8 to 3/16 inches
• 1/4 to 5/16 inches
• 5/16 to 3/8 inches
Mounting Thread Option: 3/4-14 NPT
Dimensions: 37x9x8cm
Weight: 1.5kg
Protection Ratings: Type 4X certified by CSA
Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers
Sleeve Material and Retaining Chain: AISI 304 stainless steel
Outer Sleeve and Exterior Screws: AISI 303 stainless steel
O-Ring Material: Neoprene
Recommended Torque (Retaining Nut): 29.4 N·m (260 in·lb)
Housing Strength: Outer sleeve mounted on test stand with axis parallel to horizontal; housing mounted through end hole
Housing Impact Strength: Certified by BASEEFA to withstand two separate 4 J (3.0 ft·lb) impacts at -39 °C (-38 °F) and +115 °C (239 °F)

31000-29-05-15-033-03-02--Product Description

Description The 31000/32000 Proximity Probe Housing Assemblies are recommended when mounting proximity probes through the machine case and are typically used for radially mounted transducers, whether vibration or Keyphasor measurements. Use of a Proximity probe housing allows external access to the proximity probe and its extension cable, permitting gap adjustment or probe replacement without disassembly of the machine. The 31000/32000 Proximity Probe Housing Assembly is made of polyphenylene sulfide (PPS), an advanced, high-strength, thermoplastic with excellent corrosion resistance. Other elements of the housing assembly are made of corrosion-resistant stainless steel. The housing can be ordered with installed 3300 XL Proximity Probes and a variety of conduit fittings. The 31000/32000 Proximity Probe Housing Assembly is fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings. When installed in conjunction with an approved transducer system and appropriate I.S. barriers, the 31000/32000 Proximity Probe Housing Assembly can be used in intrinsically safe hazardous area applications.
