Bently Nevada 31000-28-05-00-061-01-02 Proximity Probe Housing Assemblies

Sale Manager: John Yang

Email: sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

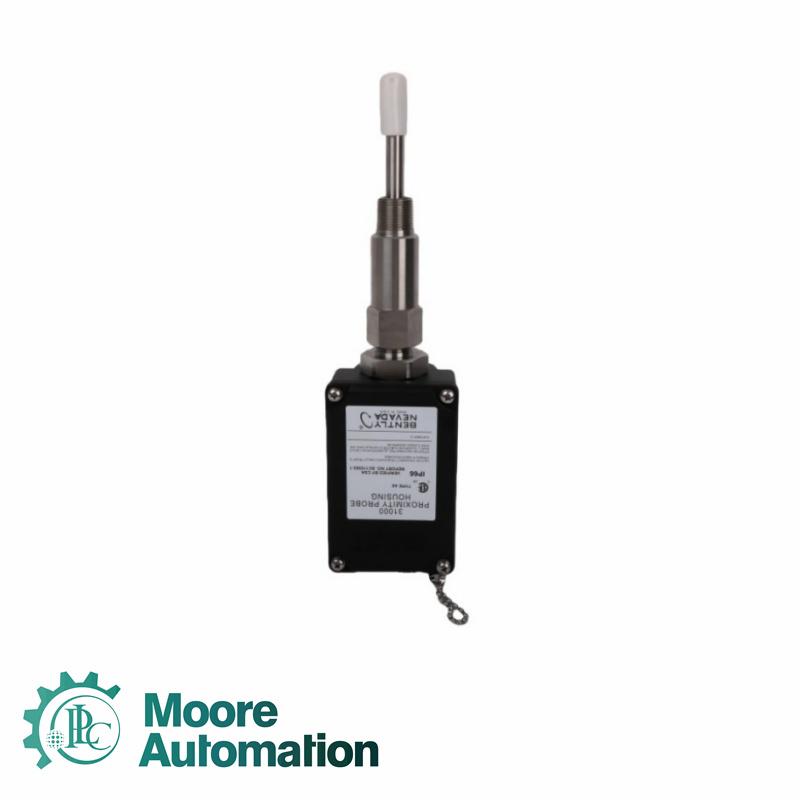

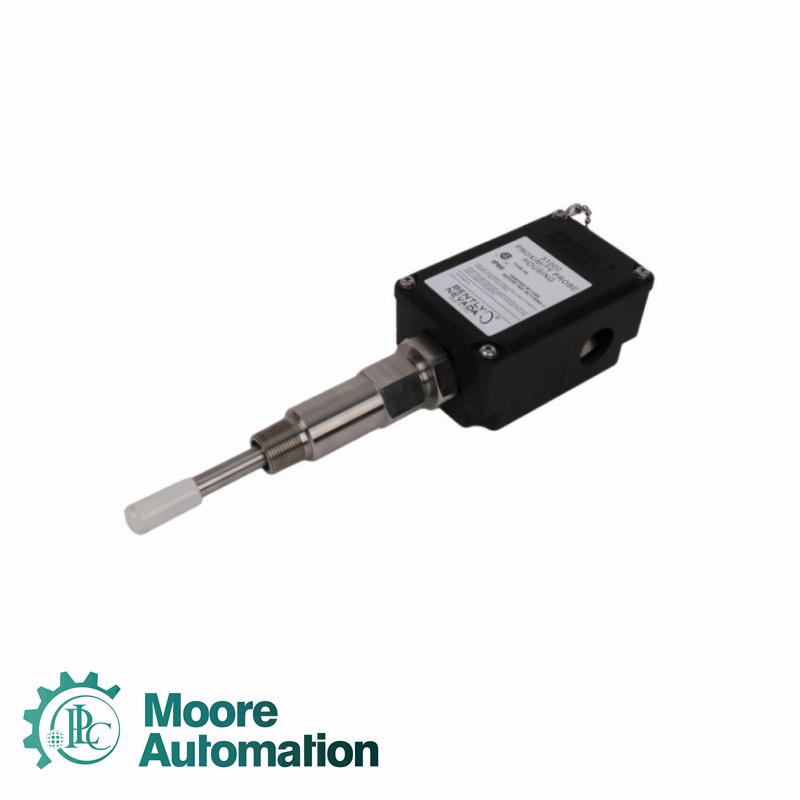

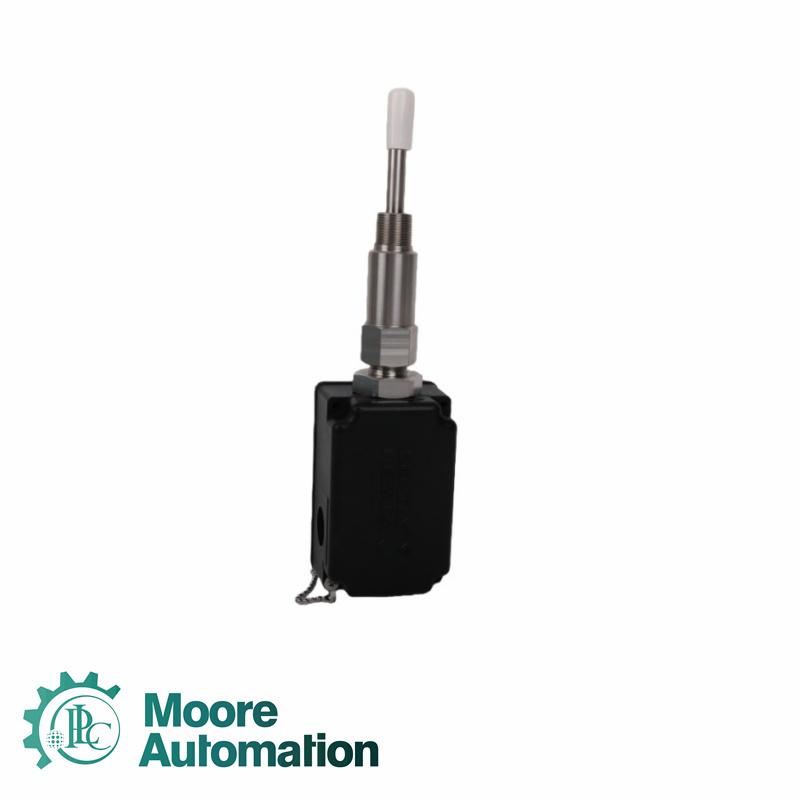

Description The 31000/32000 Proximity Probe Housing Assemblies are recommended when mounting proximity probes through the machine case and are typically used for radially mounted transducers, whether vibration or Keyphasor measurements. Use of a Proximity probe housing allows external access to the proximity probe and its extension cable, permitting gap adjustment or probe replacement without disassembly of the machine. The 31000/32000 Proximity Probe Housing Assembly is made of polyphenylene sulfide (PPS), an advanced, high-strength, thermoplastic with excellent corrosion resistance. Other elements of the housing assembly are made of corrosion-resistant stainless steel. The housing can be ordered with installed 3300 XL Proximity Probes and a variety of conduit fittings. The 31000/32000 Proximity Probe Housing Assembly is fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings. When installed in conjunction with an approved transducer system and appropriate I.S. barriers, the 31000/32000 Proximity Probe Housing Assembly can be used in intrinsically safe hazardous area applications.

Probe with Connector:3300 XL 8 mm probe, multiple approvals
Probe Cable Length:0.5 m (20 in)
Standoff Adapter Length (Option C Dimension):No standoff adapter
Probe Penetration Option (Option D Dimension):6.1 in
Fittings:One 3/4-14 NPT fitting, two plugs
Mounting Thread Option:3/4-14 NPT (Required if ordering Standoff Adapter Option)
Protection Ratings:Type 4X rating certified by Canadian Standards Association (CSA)
Housing Material:Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers
Sleeve Material and Retaining Chain:AISI 304 stainless steel
Outer Sleeve and Exterior Screws:AISI 303 stainless steel
O-Ring Material:Neoprene
Recommended Torque(retaining nut):29.4 N·m (260 in·lb)
Housing Strength (typical):Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole
Housing Impact Strength:Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F)

Is this product brand new?
Yes, Bently Nevada 31000-28-05-00-061-01-02 is brand new, original, unused, and factory sealed

Do you have it in stock?
Yes, right now we have Bently Nevada 31000-28-05-00-061-01-02 in stock ready for shipment, we can support video inspection.

Why can't I see a price for this Bently Nevada 31000-28-05-00-061-01-02?
In addition to "new original" " units.
we also specialize in the selling "discontinued" and hard to find industrial automation parts which tend to have a fluctuating market value. These fluctuations may make it difficult for us to provide accurate daily prices for parts on our website. Therefore, in an effort to ensure that we always provide you with the best and most accurate price available, our team will source and price your part on an enquiry-by-enquiry basis.
