Specification Highlights |
|
|
Dimension |
37 × 9 × 8 cm |
|
Weight |
1.5 kg |
|
Probe with Connector |
Probe not required |
|
Probe Cable Length |
Probe cable not required (Option A must also be 00) |
|
Standoff Adapter Length (Option C Dimension) |
Minimum length 1.5 in (38 mm) |
|
Probe Penetration Option (Option D Dimension) |
3.5 in |
|
Fittings |
One 3/4-14 NPT fitting, two plugs |
|
Mounting Thread Option |
3/4-14 NPT (Required if ordering Standoff Adapter Option) |
|
Protection Ratings |
Type 4X rating certified by Canadian Standards Association (CSA) |
|
Housing Material |
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
|
Sleeve Material and Retaining Chain |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws |
AISI 303 stainless steel |
|
O-Ring Material |
Neoprene |
|
Recommended Torque (Retaining Nut) |
29.4 N·m (260 in·lb) |
|
Housing Strength (Typical) |
Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole |
|
Housing Impact Strength |
Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F) |
Overview of the Product

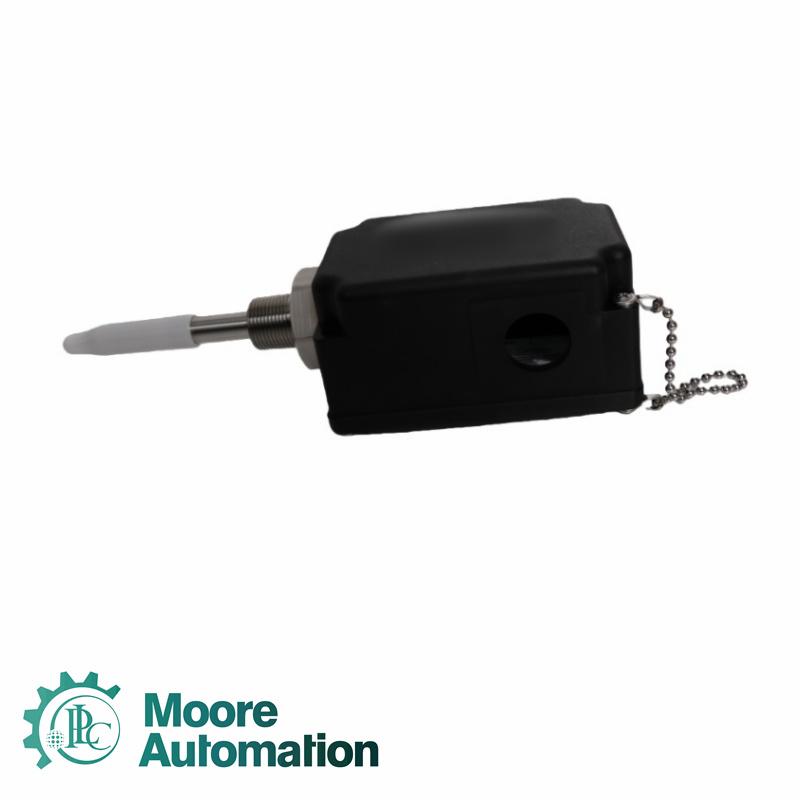

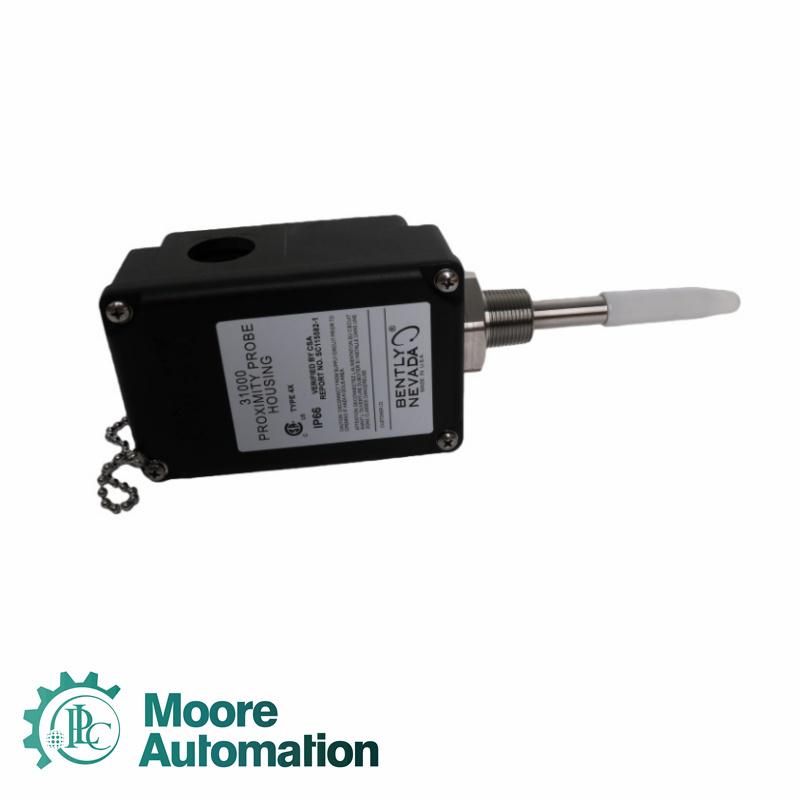

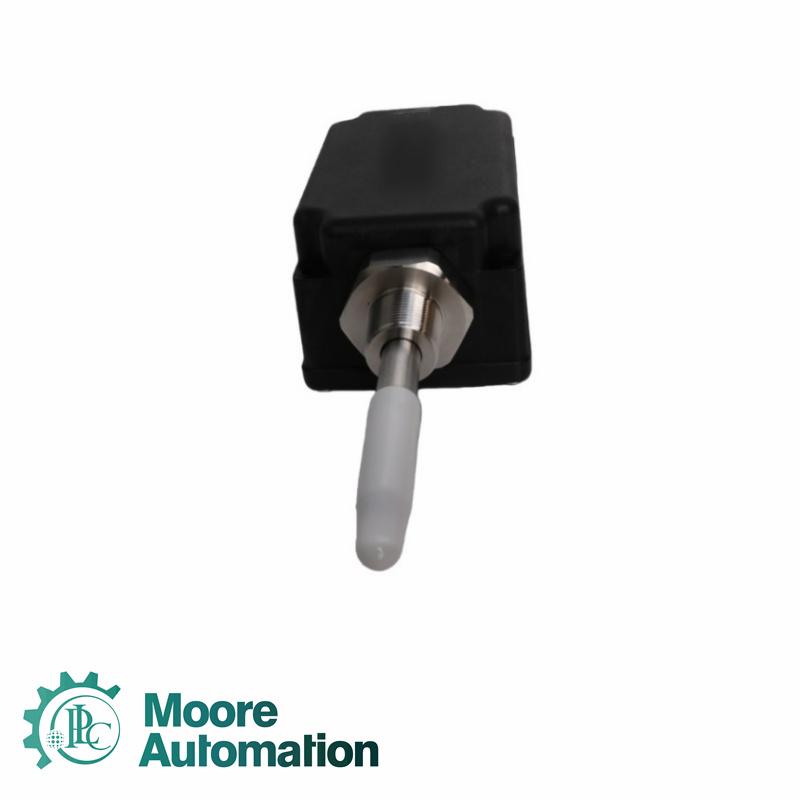

The 31000/32000 Proximity Probe Housing Assemblies are recommended when mounting proximity probes through the machine case and are typically used for radially mounted transducers, whether vibration or Keyphasor measurements. Use of a Proximity probe housing allows external access to the proximity probe and its extension cable, permitting gap adjustment or probe replacement without disassembly of the machine. The 31000/32000 Proximity Probe Housing Assembly is made of polyphenylene sulfide (PPS), an advanced, high-strength, thermoplastic with excellent corrosion resistance.
|
◆Best Price,Good price within limited time |
John Yang Email: sales3@askplc.com Mobile(WhatsApp): 86-18150117685 |
|
◆Fast Delivery&One Year Warranty |
|
|
◆24/7Service & Free Online Quotes |
Applicaiton
Oil Refining Plants: Used on compressors and blowers; PPS housing resists oil gas and H₂S corrosion.
Hydropower Plants: Installed on turbine bearing housings to block oil and moisture contamination.
Steel Plants: Applied to heavy-duty bearing housings to protect probes from dust, heat, and impact.
Offshore Oil Platforms: PPS housing provides long-term salt spray corrosion resistance for pump monitoring.
Coal-to-Liquid Gasification Plants: Protects sensors on compressors and rotating equipment from dust and heat damage.
Frequently Asked Questions
Q: What type of wiring conduit fittings are configured for this 31000-00-00-15-035-01-02 protective box?
A: Code "01" represents a single M25×1.5 threaded interface with two plugs for sealing external leads
Q: After installing a reverse-mounted probe inside 31000-00-00-15-035-01-02, how is leakage of lubricating oil along the sleeve prevented?
A: The component's internal structure incorporates Viton O-rings to provide a pressure seal between the sleeve and the mechanical housing connection.
Q: Will the violent oscillations generated by rotating machinery cause the polyphenylene sulfide plastic dome cover of the 31000-00-00-15-035-01-02 to loosen?
A: The connection between the housing and base of this device is designed with a special locking screw, which can counteract high-frequency vibrations in the industrial environment through mechanical engagement.
Q: If the machine vibrates severely, is the external dome housing of 31000-00-00-15-035-01-02 securely locked, and what mechanism prevents it from loosening?
A: The PPS dome housing of this component is mechanically secured to the base using a set screw to combat high-frequency vibration.
Q: If the 31000-00-00-15-035-01-02 is deployed in an explosive gas environment, can its M25 cable inlet be directly equipped with a plastic cable head?
A: No, certified metal explosion-proof cable glands such as ATEX/IECEx Ex d or Ex e types must be used to ensure circuit sealing.
|
