Bently Nevada 24701-34-05-30-028-04-02 Proximity Probe Housing Assemblies

Bently Nevada   24701-34-05-30-028-04-02

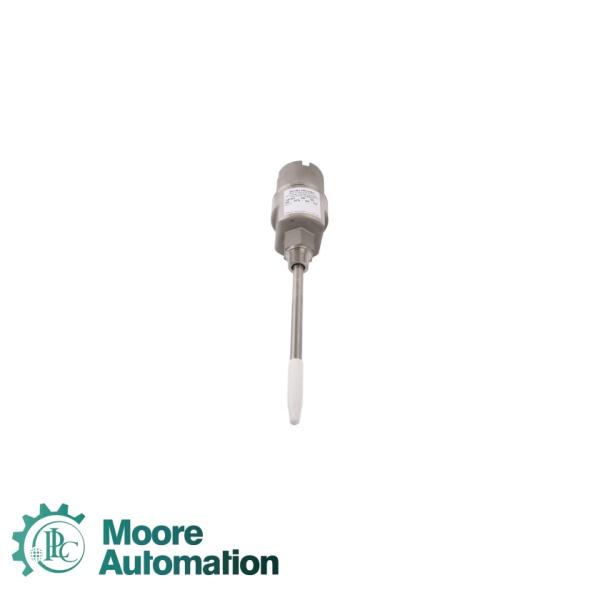

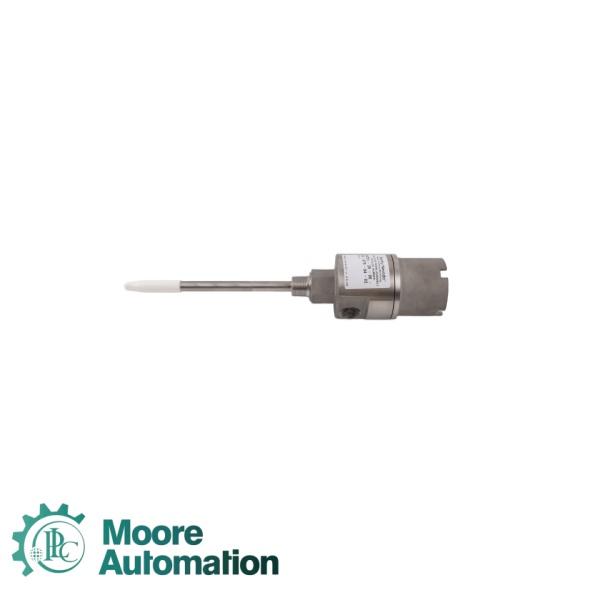

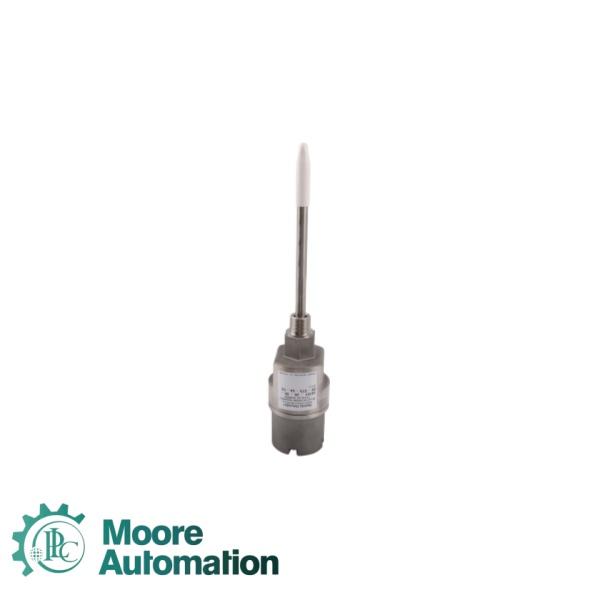

       The Bently Nevada 24701-34-05-30-028-04-02 is a stainless steel, explosion-proof proximity probe housing assembly designed for externally mounting a 3300 XL 8 mm proximity probe onto rotating machinery such as turbines, compressors, and pumps. Built with a 303 stainless steel body and a 304 stainless steel probe sleeve, this assembly provides superior corrosion resistance and durability for harsh industrial environments, including refineries, petrochemical plants, and power generation facilities.

       The 24701-34-05-30-028-04-02 features a 0.5-meter probe cable, a 3.0-inch probe penetration depth, and a 3/4-14 NPT mounting thread, allowing it to monitor shaft vibration and position through insulation or housing walls without disassembling the machine. It is CSA certified as a Type 4 enclosure and rated explosion proof for hazardous areas including Class I Division 1 Groups C and D, Class II Division 1 Groups E, F, and G, and Class III locations.

Key Features of the 24701-34-05-30-028-04-02

✜Stainless steel construction – 303 stainless steel body with 304 stainless steel probe sleeve for superior corrosion resistance and durability

✜CSA Type 4 enclosure – Provides protection against dust, moisture, and harsh weather conditions for outdoor industrial installations

✜3300 XL 8 mm probe compatible – Houses a standard 3300 XL 8 mm proximity probe with 2.0 mm linear measurement range and 7.87 V/mm sensitivity

✜Triple-seal cable grip kit – Includes plug, reducer, and multiple grommets accommodating various cable sizes

✜Wide operating temperature – Probe operates reliably from -51°C to +177°C (-60°F to +350°F)

✜Field-serviceable dome cover – Removable cover allows gap adjustments and probe replacement while equipment remains online

FAQ

Q1: What is Bently Nevada known for?

A1: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

Q2: What industries does Bently Nevada serve?

A2: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

Q3: What types of measurements do Bently Nevada products provide?

A3: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.
