BENTLY NEVADA 24701-33-05-00-024-04-02 Proximity Probe Housing Assemblies

1

Sale Manager----John Yang

Email: sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

2

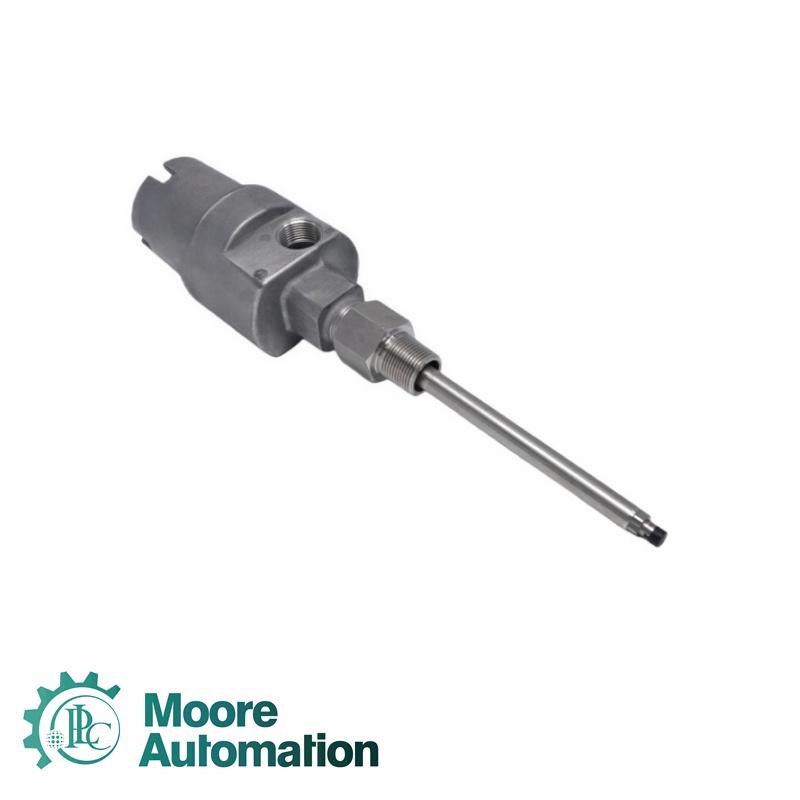

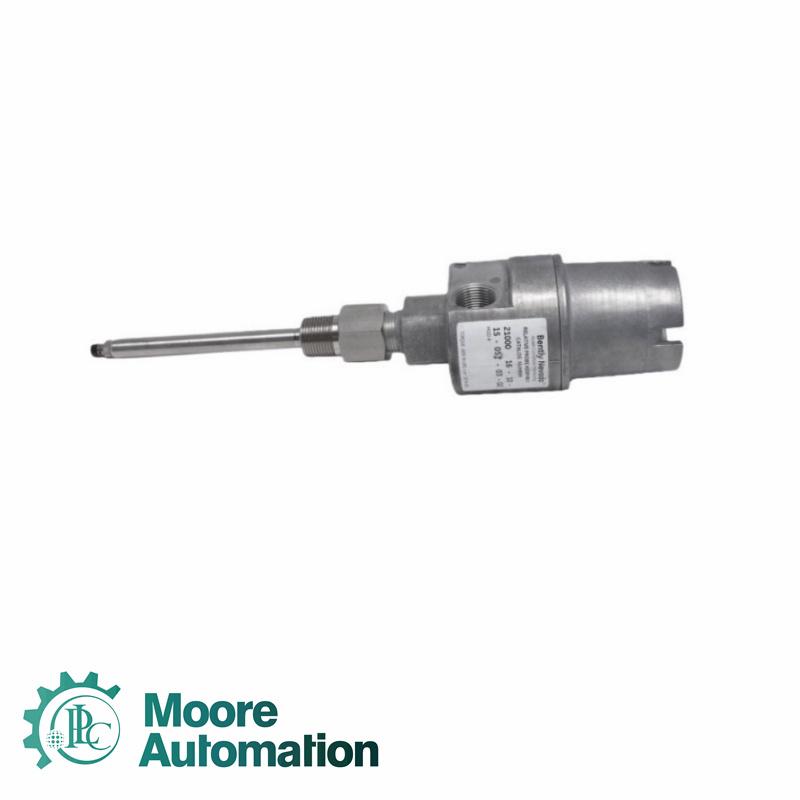

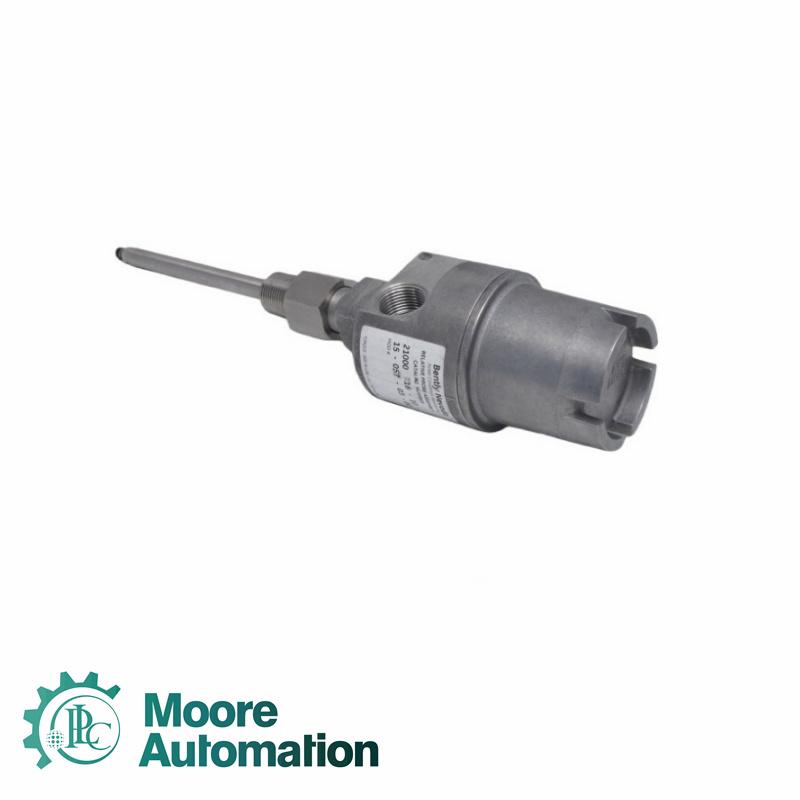

To externally mount proximity probes, use one of these all-metal Proximity Probe Housing Assemblies: 21000 aluminum probe housing assembly,24701 stainless steel probe housing assembly. The 21000, 24701, and 164818 Proximity Probe Housing Assemblies consist of the following parts:  A dome cover that screws into the body of the housing； Threaded ports for conduit connections； A probe sleeve of optional length； O-rings ；A reverse mount proximity probe； A thread seal； Optional conduit fittings； An optional standoff adapter. The 21000, 24701, and 164818 Proximity Probe Housing Assemblies are available with Canadian Standards Association (CSA) approvals. They are rated explosion proof for hazardous areas. You can order hazardous area approved proximity probes with 21000 aluminum and 24701 stainless steel housings for intrinsically safe applications.

Ask John Yang（Email: sales3@askplc.com）for more infor of 21000-16-10-00-103-04-02

3

Probe with Connector: 3300 XL 8 mm probe
Probe Cable Length: 1.0 m (39 in)
Standoff Adapter (Option C Dimension): No standoff adapter
Probe Penetration (Option D Dimension) : 10.3 in
Fittings : One 3/4-14 NPT plug only
Mounting Thread: 3/4-14 NPT
Material: Aluminum body with 304 stainless steel sleeve
Mass (Weight): 1.1 kg (2.4 lb) typical, without fittings

4

What is the BENTLY NEVADA 21000-16-10-00-103-04-02?
It is a 3300 XL 8 mm Proximity Probe.

Is this product brand new?
Yes, BENTLY NEVADA 21000-16-10-00-103-04-02 is brand new, original, unused, and factory sealed

What shipping methods are used for 21000-16-10-00-103-04-02?
Major carriers like FedEx, DHL, and UPS are primarily used for worldwide delivery.

How are the 21000-16-10-00-103-04-02 packaged?
21000-16-10-00-103-04-02 packaging generally involves multiple layers of protection to ensure safe transit.

Do you offer any discounts?
Yes! For discounts on 21000-16-10-00-103-04-02, please contact John for the best offer.
