Bently Nevada 24701-00-00-15-037-04-02 Proximity Probe Housing Assembly

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Item NO.:
24701-00-00-15-037-0
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Product Origin:
USA
Lead Time:
3-5 days

Product Detail

Specifications

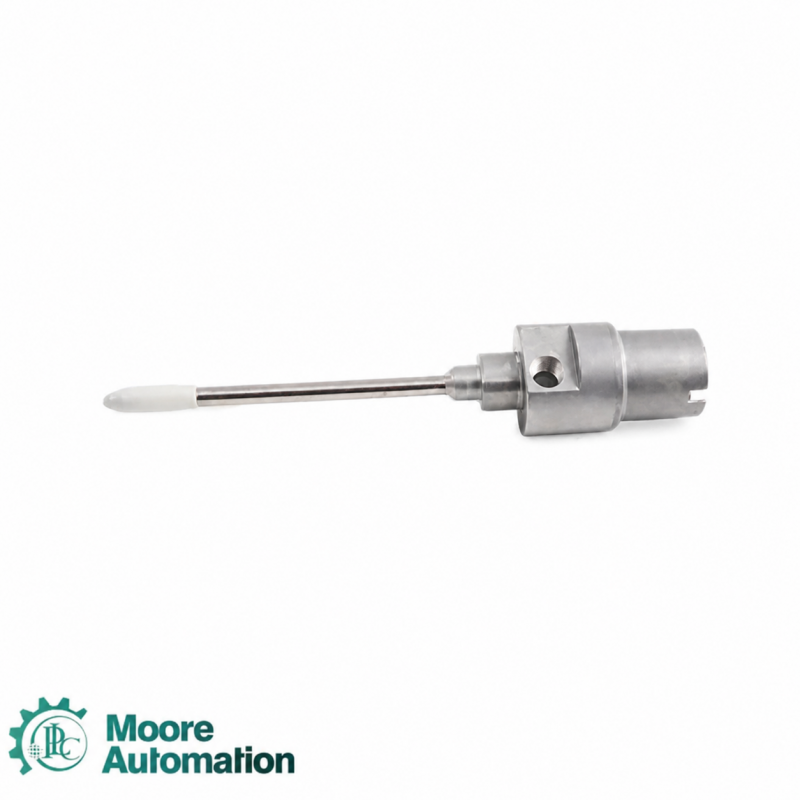

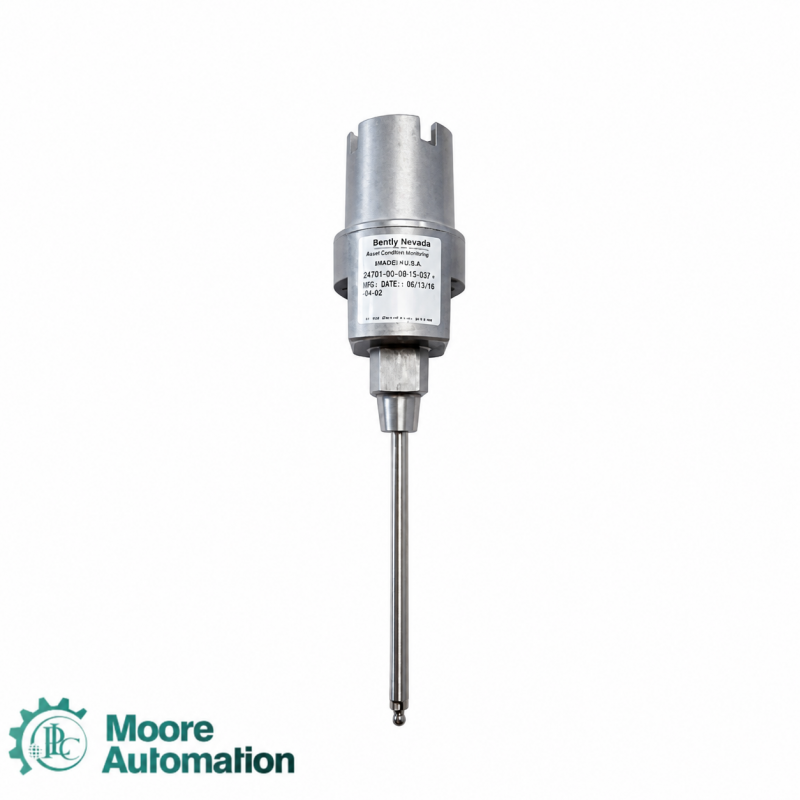

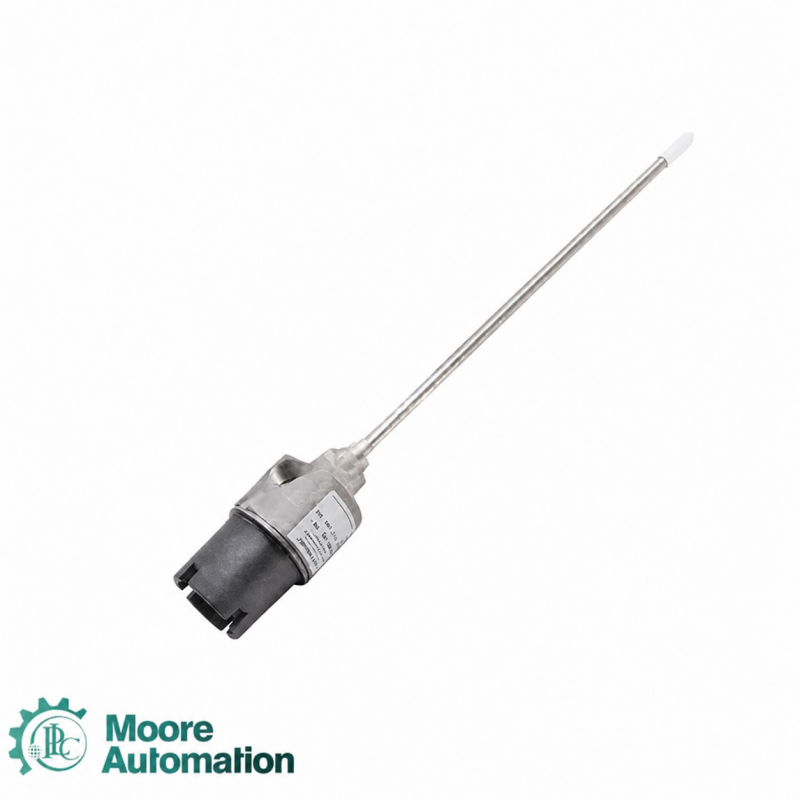

The Bently Nevada 24701-00-00-15-037-04-02 is a stainless-steel external proximity-probe housing assembly in the Bently Nevada 24701 Series. It provides a protected, adjustable mounting enclosure for a compatible reverse-mount proximity probe used on critical rotating machinery. The housing incorporates a threaded body, removable dome cover, stainless-steel probe sleeve, O-rings, thread-sealing provisions, and conduit connections. It is designed for external probe installation and complies with the mechanical requirements of API 670 for externally mounted proximity-probe housings.

Product-family code24701 — external proximity-probe housing assembly

Fitting (EE)04 — one 3/4-14 NPT plug only

Probe (AA)00 — probe not included

Mounting thread (FF)02 — 3/4-14 NPT mounting thread

Probe cable (BB)00 — probe cable not included

Housing body material303 stainless steel

Standoff adapter (CC)15 — 1.5 in (38 mm)

Probe sleeve material304 stainless steel

Probe penetration (DDD)037 — 3.7 in (94 mm)

Typical mass1.8 kg (4.1 lb), without fittings

Application Industry

Steam and Gas TurbinesProtects a compatible reverse-mount proximity probe used for shaft-vibration and shaft-position monitoring on critical turbine trains.

Centrifugal CompressorsProvides a robust external probe-mounting point for radial-vibration and position measurements on compressor shafts and bearings.

Industrial Pumps, Motors and GeneratorsSupports protected external probe installation on rotating equipment where reliable shaft condition measurements are required.

API 670 Machinery Monitoring InstallationsProvides an externally mounted stainless-steel probe housing designed to satisfy the mechanical housing requirements of API 670.

FAQ

What is the Bently Nevada 24701-00-00-15-037-04-02?

It is a stainless-steel external proximity-probe housing assembly used to mount and protect a compatible reverse-mount probe on rotating machinery. It belongs to the Bently Nevada 24701 Series.

Does this configuration include a proximity probe or probe cable?

No. Ordering options A = 00 and B = 00 specify that neither the proximity probe nor the probe cable is supplied; compatible sensing components must be ordered separately.

What mounting dimensions and fittings are configured?

This configuration has a 1.5-inch (38 mm) standoff adapter, 3.7-inch (94 mm) probe penetration, one 3/4-14 NPT plug, and a 3/4-14 NPT mounting thread.

Which proximity probes can be used with the 24701 housing?

Bently Nevada lists the housing for compatible reverse-mount proximity probes, including applicable 3300 XL 8 mm, 3300 XL 11 mm, and 3300 XL NSv probe-system configurations. The probe must be selected and ordered separately.

Can Moore Automation verify the exact configuration before purchase?

Yes. Provide the complete part number, probe system, mounting thread, standoff length, and penetration requirement so the sales team can check configuration, availability, documentation, and quotation details.
