Model Description

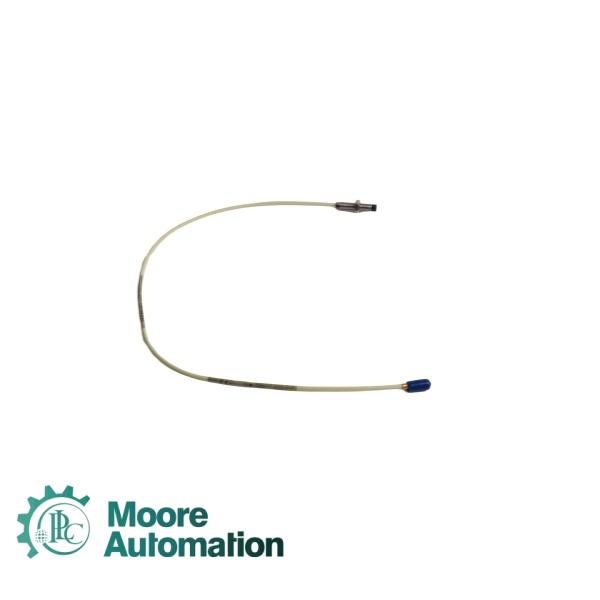

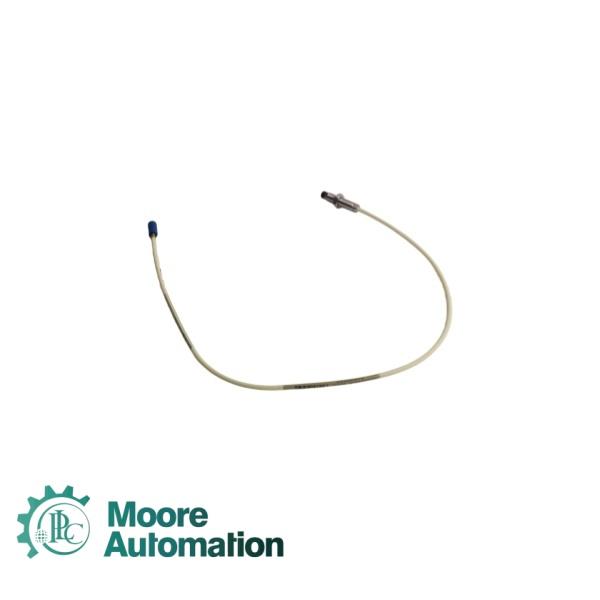

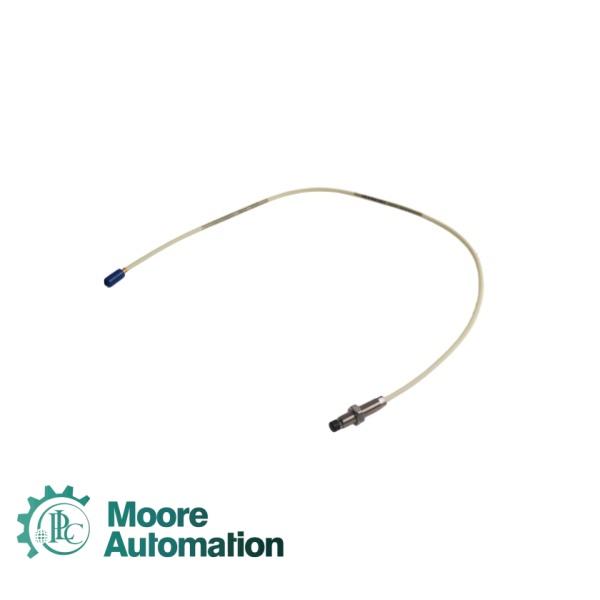

The Bently Nevada 21504-000-020-10-02 is an 8mm Standard Mount Proximity Probe from the 7200 Series. It is a non-contacting, eddy-current displacement transducer system that measures both static and dynamic distances between the probe tip and the observed target.
The probe is constructed of polyphenylene sulfide (PPS) , a high-performance plastic capable of withstanding unusually harsh, wet, and/or chemical environments .
Key Technical Specifications
|
DIAMETER |
8 mm |
|
CONFIGURATION TYPE THREADS |
Standard 3/8-24 |
|
Unthreaded Length |
000: 0.0inches |
|
Overall Case Length |
020: 2.0inches |
|
Total Length |
10: 1.0 metre (39 inches) |
|
Connector |
02: with miniature male coaxial connector |
|
Linear Range |
80 mils (2.0 mm) |
|
Scale Factor (Sensitivity) |
200 mV/mil (7.87 V/mm) nominal |
|
Frequency Response |
0 Hz (DC) to 10 kHz |
|
Output Signal |
Gap voltage: -1 to -19 VDC |
|
Power Supply |
-24 VDC (provided by Proximitor) |
|
Probe Material |
Polyphenylene sulfide (PPS) – high-performance plastic |
|
Operating Temperature (Probe) |
-35°C to +177°C (-31°F to +350°F) |
|
Storage Temperature |
-40°C to +200°C (-40°F to +392°F) |
Typical applications
|
Radial Vibration Monitoring |
Measuring shaft vibration relative to the bearing housing |
|
Axial (Thrust) Position Monitoring |
Monitoring shaft axial displacement to prevent thrust bearing failure |
|
Shaft Average Radial Position |
Measuring average radial position (eccentricity) of the shaft |
|
Vibration Amplitude and Phase |
For diagnostic and balancing purposes |
|
Keyphasor® Reference Signal |
Generating once-per-turn timing markers |
FAQ
|
Q1: What is Bently Nevada known for? |
A1: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment. |
|
Q2: What types of measurements do Bently Nevada products provide? |
A2: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring. |
|
Q3: What industries does Bently Nevada serve? |
A3: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries. |
|
Q4: Are Bently Nevada products compliant with international standards? |
A4: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards. |
|
Q5: What is the 3500 monitoring system? |
A5: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown. |
