--About Moore--
As a leading supplier of new and surplus industrial automation and control equipment, Moore Automation's growth over the past two decades is a testament to the unwavering dedication and tireless efforts of its outstanding team.
--Detailed parameters--
|
Weight |
0.5 kg |
|
Mounting Stud Option |
3/8-24 to 3/4 NPT, 1-1/4 inch hex stud |
|
Approvals |
Multiple Approvals (CSA, ATEX, and IECEx) |
|
ProTIM Option |
Standard |
|
Channel Type |
Acceleration-to-Velocity (-01) |
|
Application Type |
General Application |
|
Housing Material |
316L Stainless Steel |
|
Connector Material |
316L Stainless Steel |
|
Sensitivity @ 80 Hz |
10.2 mV/(m/s²) (100 mV/g) ±12% |
|
Measurement Range |
±245 m/s² (±25 g) |
|
Measurement Range (mg) |
14.7 mm/s² (1.5 mg) |
|
Frequency Range |
10–1000 Hz (600–60,000 cpm) |
|
Mounted Resonant Frequency |
>20 kHz (>1200 kcpm) |
|
Amplitude Linearity |
±2% (1–10 g pk) |
|
Transverse Sensitivity |
≤7% |
|
Settling Time |
≤300 ms |
|
Excitation Voltage |
4.7–5.5 VDC |
|
Polarity |
SIG+ positive with respect to SIG- |
|
Quiescent Current |
<800 µA |
|
Output Bias Voltage |
+2.5 ±0.23 VDC |
|
Electrical Isolation |
600 Vrms |
|
Axial Shock Limit |
49,050 m/s² pk (5,000 g pk) |
|
Operating Temperature |
-40°C to +105°C (-40°F to +221°F) |
|
Hermetic Sealing |
5×10⁻⁸ atm·cc/s max |
|
Relative Humidity |
100% RH condensing, non-submerged |
|
Mounting Thread |
3/8-24 female |
|
Mounting Torque |
2.7–6.8 N·m (2–5 ft·lbf) |
|
Sensing Element |
Ceramic |
|
Sensing Geometry |
Shear |
--Find John Yang for discounts--
Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685
--Key description--

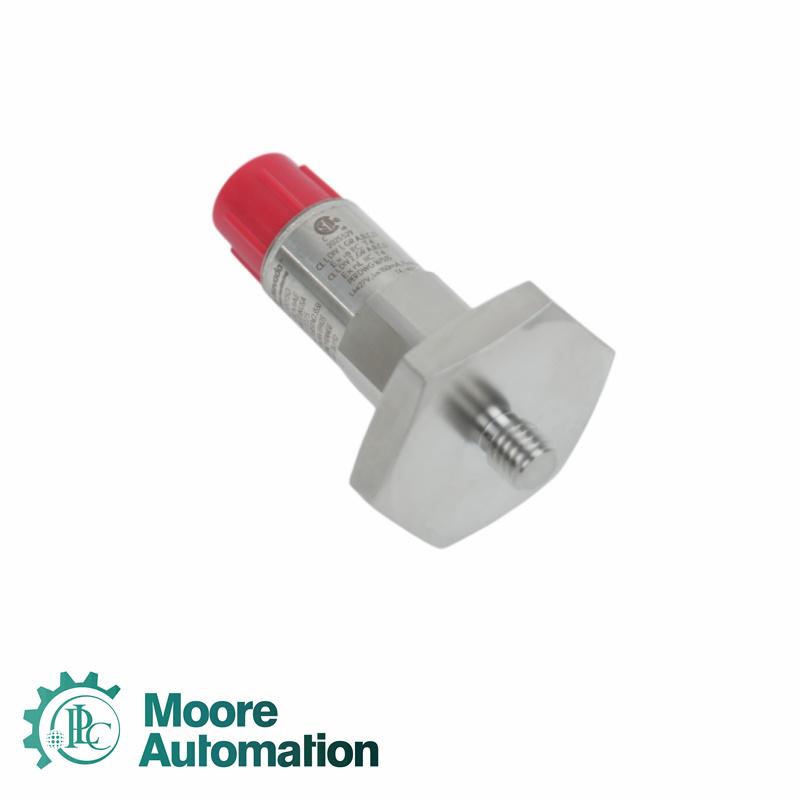

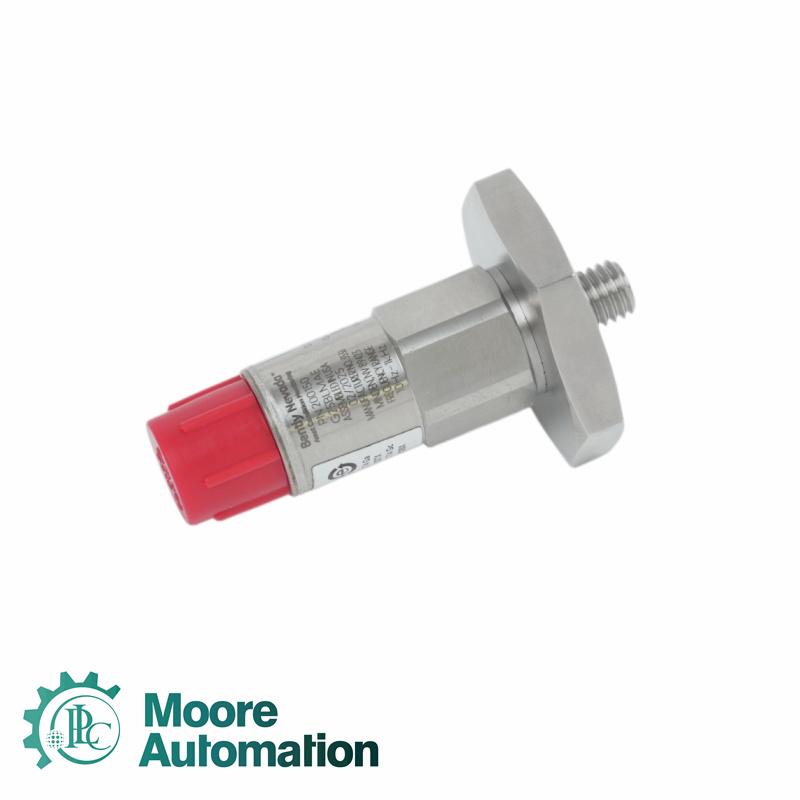

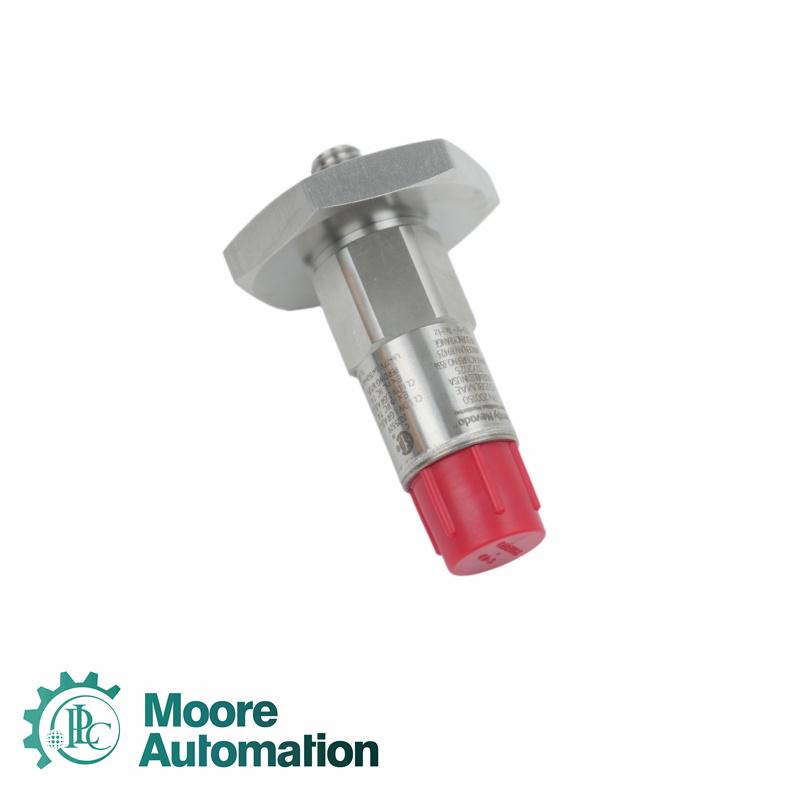

The 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs. The 200150 Accelerometer also operates with the Trendmaster 2000 system. The accelerometer interfaces with the 200100 Dual Acceleration to Velocity flexiTIM Module and the 89130-01 Acceleration-to-Velocity TIM (Transducer Interface Module), as well as the 1900/25 and 1900/27 monitors.
--Application--
--5 reasons why you should choose Moore--
⭐Extensive & Real Inventory
⭐Save up 20%-60% off
⭐Fully Tested and Guaranteed
⭐Flexible Payment & Shipment
⭐Unparalleled Experience & Service
--FAQ--
Q: What is the mounting stud option of 200150-09-05?
A: Its option is 3/8-24 to 3/4 NPT, 1-1/4 inch hex head stud.
Q: What is the sensitivity of 200150-09-05 at 80 Hz?
A: Its sensitivity is 10.2 mV/(m/s²) (100 mV/g) ±12%.
Q: What is the measurement range of 200150-09-05?
A: Its measurement range is ±245 m/s² (±25 g).
Q: What is the frequency range of 200150-09-05?
A: Its frequency range is 10 to 1000 Hz (600 to 60,000 cpm).
Q: What is the quiescent current of 200150-09-05?
A: Its quiescent current is less than 800 µA.
