Bently Nevada 190501-09-99-01 Velomitor CT Velocity Transducer

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
3-5 Days
Warranty:
1 Year

Product Detail

Specifications

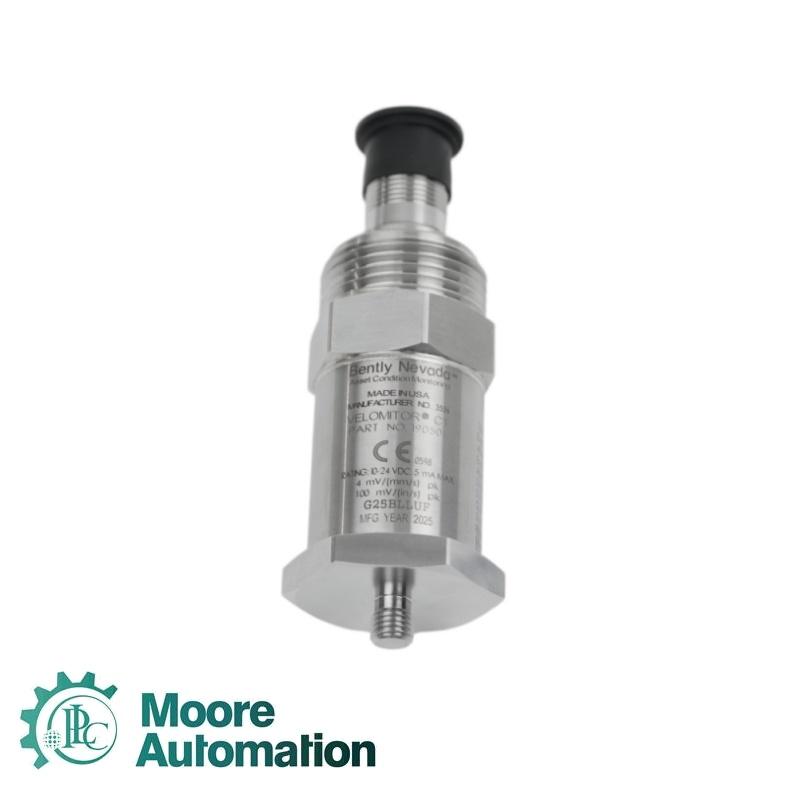

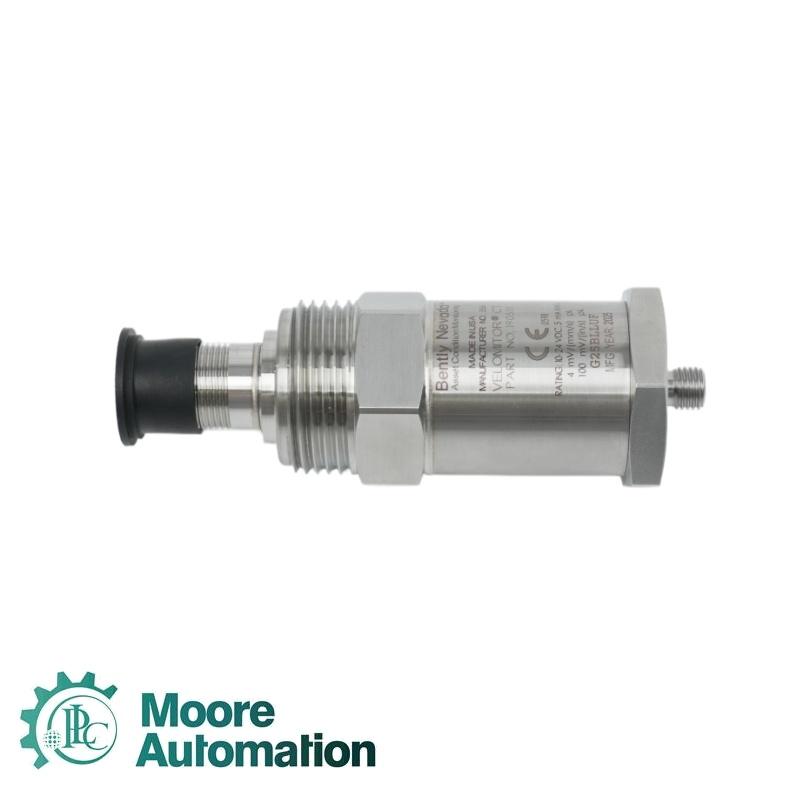

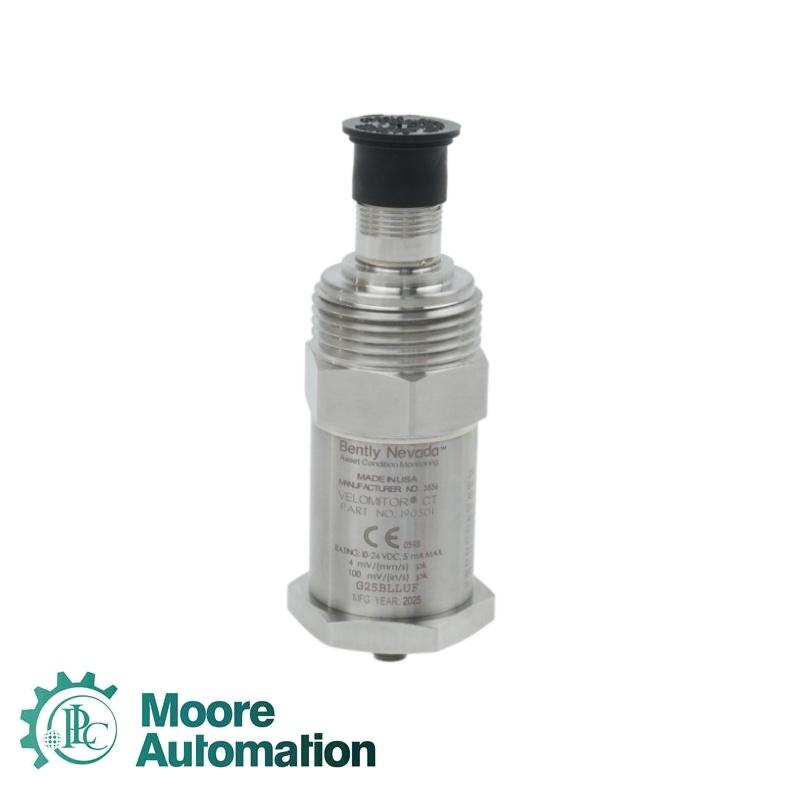

The Bently Nevada 190501-09-99-01 is a Velomitor CT piezo-velocity transducer for casing and structural vibration measurements. This configuration uses a plate stud with a 3/8-24 to 1/4-inch NPT interface, includes a 32-foot cable, and carries the agency-approval option. Its isolated stainless-steel construction supports continuous machine-condition monitoring where a velocity output is required.

Product typeVelomitor CT velocity transducer

Base model190501

Mounting option09 — plate stud, 3/8-24 to 1/4-in NPT

Connection option99 — included 32 ft cable

Approval option01 — hazardous-area approvals

Sensitivity3.94 mV/mm/s (100 mV/in/s), ±5%

Frequency response3.0 to 900 Hz, ±1.0 dB

Extended response1.5 Hz to 1.0 kHz, ±3.0 dB

Velocity range63.5 mm/s peak (2.5 in/s peak)

Amplitude linearity±2% to rated velocity range

Output bias10.1 V DC ±1.0 V DC

Dynamic impedanceLess than 400 Ω typical

Operating temperature-40 to +85 °C

Storage temperature-40 to +100 °C

Case material316L stainless steel

WeightLess than 297 g typical

Application Industry

Casing vibration monitoringMeasures absolute vibration on bearing housings and machine casings.

Cooling-tower fansSupports low-frequency condition monitoring on fan and drive structures.

Reciprocating compressorsProvides velocity data for machinery-condition assessment.

Motors and pumpsMonitors structural vibration where stud mounting is available.

FAQ

What mounting interface is supplied with 190501-09-99-01?

It uses a plate stud that adapts the transducer mounting thread to a quarter-inch NPT interface.

How should 190501-09-99-01 be oriented during installation?

The sensor may be mounted in any orientation, provided the mounting surface is clean, flat and tightened to the specified torque.

Can 190501-09-99-01 use a long signal cable?

Yes. The official data allows long cable runs without signal degradation when the specified cable type and installation limits are .

What vibration band is covered by 190501-09-99-01?

The primary response covers low-frequency through kilohertz-range machinery vibration, with two tolerance bands stated in the datasheet.

What should be checked before replacing 190501-09-99-01?

Confirm the mounting stud, cable arrangement, hazardous-area marking, monitor input and polarity against the installed loop.
