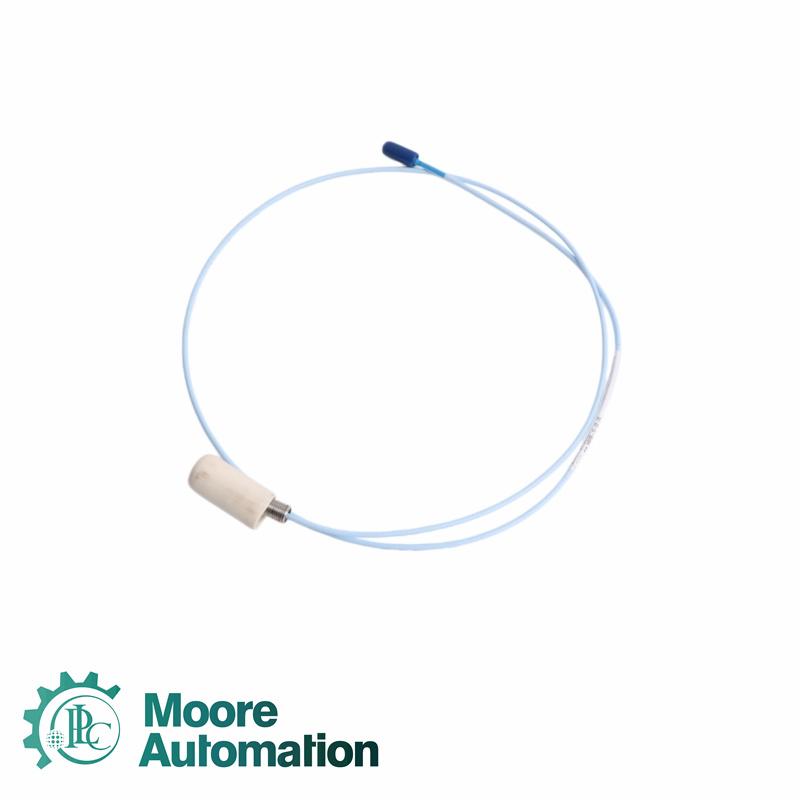

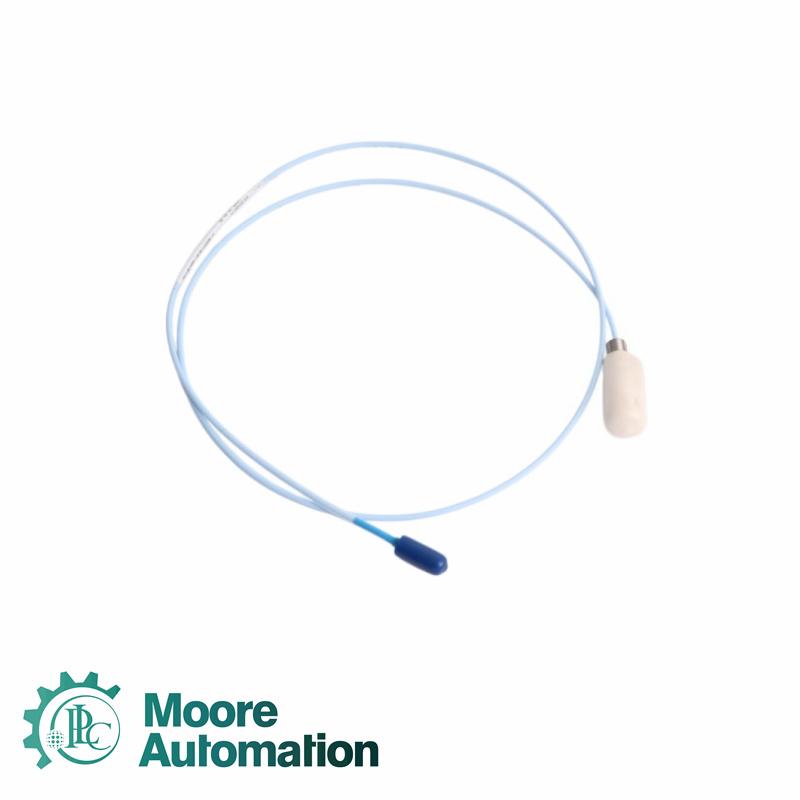

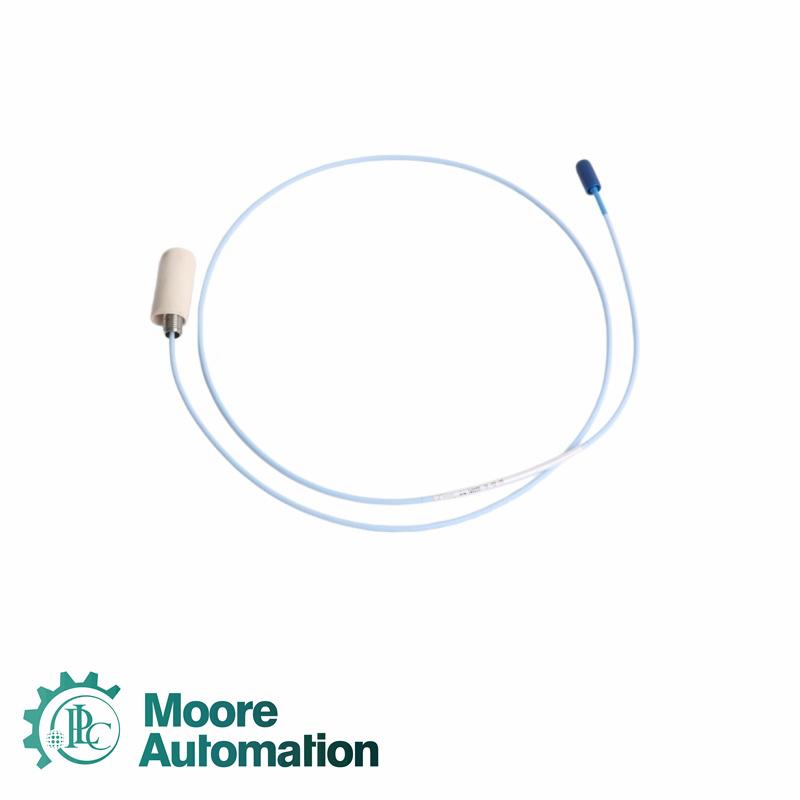

The 3300 Ceramic Capped Probe is a state-of-the-art solution for monitoring machinery in aggressive chemical or high-pressure environments. The alumina cap and 304 stainless steel probe case provide robust protection and increased life for applications in anhydrous ammonia or other extreme pH environments. The ceramic capped probe is compatible with the 3300 Proximitor Sensor and extension cable. Our Bently Nevada ceramic-capped probes are rated to 34 Bar (500 psi) pressure.
|
Quick details |
|
|
Brand name: |
Bently Nevada |
|
Model: |
146054-14-10-02-00 |
|
Warranty period: |
1 year |
|
Condition: |
100% original brand |
|
Transportation period: |
DHL FEDEX EMS UPS TNT |
Welcome to Inquiry John Yang for more information
Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685
Key Product Specifications
|
Size |
117x2x2cm |
|
Weight |
0.04 kg |
|
Overall Case Length Option |
1.4 in |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Connector and Cable Type |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approvals |
Not required |
|
Probe Nominal DC Resistance |
0.5–7.45 ± 0.50 |
|
Linear Range |
1.52 mm (60 mils) |
|
Linear Range Start |
Approximately 0.25 mm (10 mils) |
|
Linear Measurement Range |
0.25–1.78 mm (10–70 mils) |
|
Output Voltage Range |
Approximately -4 to -16 V DC |
|
Recommended Gap Setting |
1.0 mm (40 mils) |
|
Probe Tip Material |
Alumina ceramic |
|
Probe Case Material |
AISI 304 stainless steel |
|
Probe Case Thread |
3/8-24 |
|
Maximum Thread Engagement Length |
0.563 in |
|
Operating Temperature |
-51°C to +177°C (-60°F to +351°F) |
|
Storage Temperature |
-51°C to +177°C (-60°F to +351°F) |
Application
Our service for you
Q: How about the warranty ?
A: Moore provide 12 months warranty for all the goods from us.
Q: Other supplier have a better price than yours.
A: "To create more benefit fir clients"is our belief, if you have a better price , please let we know , we will try best to meet your price and support you.
Q: We have not cooperation before , how we can believe you ?
A: For the in stock products, we can take pictures and videos before you process payment.
Q: What about shipment ?
A: We have DHL/FEDEX/UPS/CHIRLINE/Aramex,you can use your own freight forwarder for transportation.
Frequently Asked Questions (FAQ)
Q: What is the overall case length of 146054-14-10-02-00?
A: Its overall case length is 1.4 inches.
Q: What is the total length of 146054-14-10-02-00?
A: Its total length is 1.0 meter (3.3 feet).
Q: What is the linear measurement range of 146054-14-10-02-00?
A: Its linear measurement range is 0.25 to 1.78 mm (10 to 70 mils).
Q: What is the operating temperature of 146054-14-10-02-00?
A: Its operating temperature range is -51°C to +177°C (-60°F to +351°F).
Q: What is the probe case material of 146054-14-10-02-00?
A: Its probe case material is AISI 304 stainless steel.
|
