 Bently Nevada 125565-01 Half-height Module Card Guide
125565-01 125565-01 125565-01

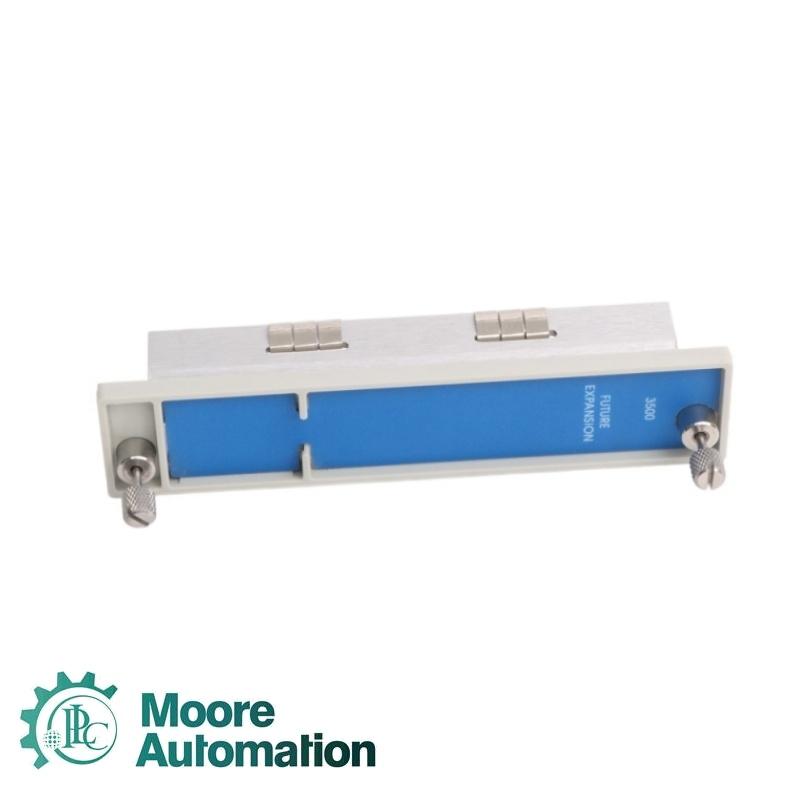

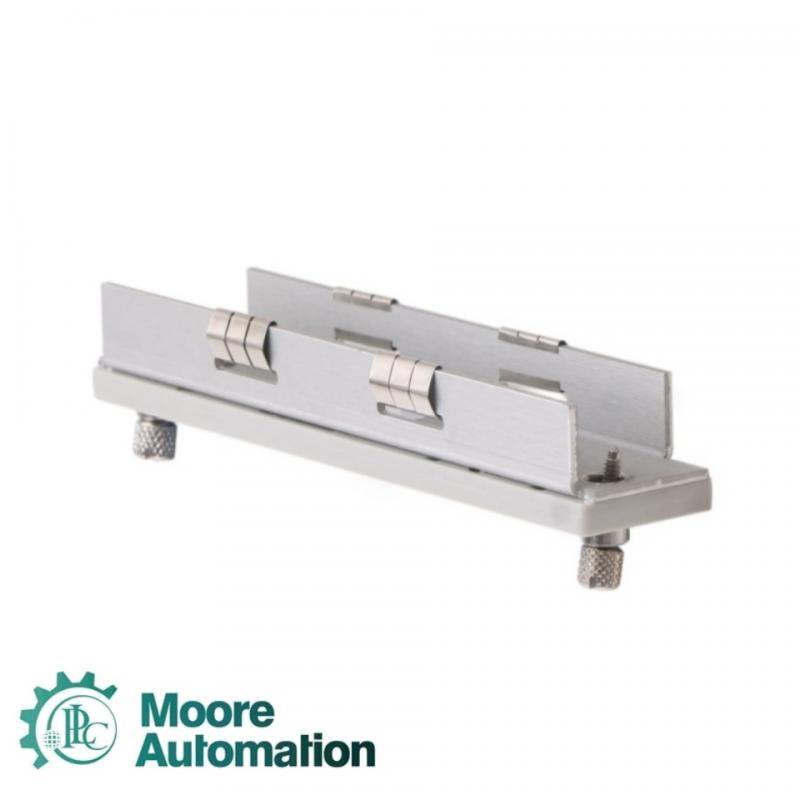

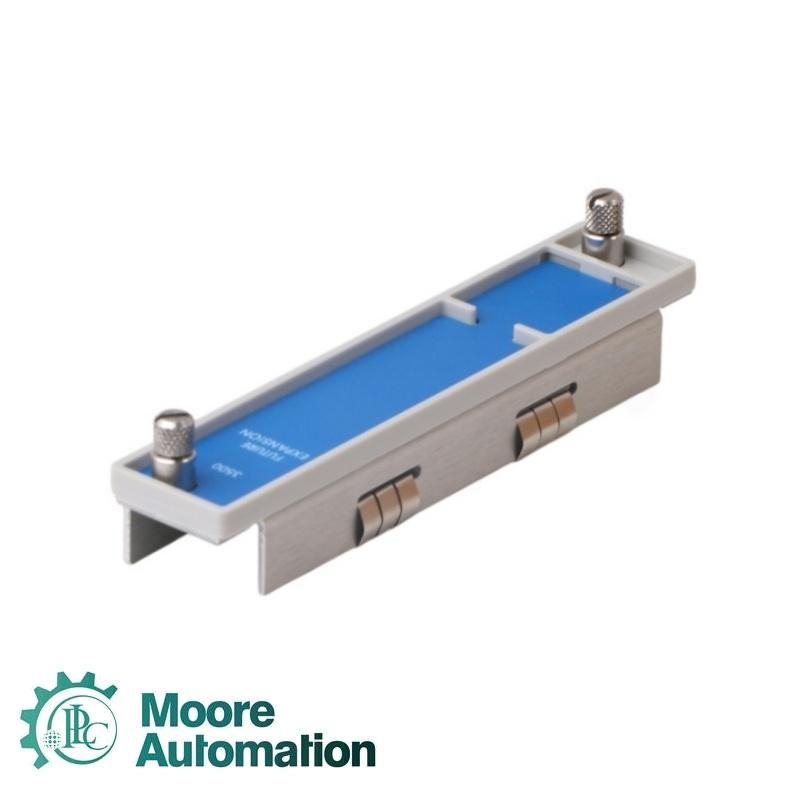

Bently Nevada 125565-01 Half-height Module Card Guide

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Mode of transport:

  • HS CODE:

  • Warranty:

    1 Year

  • Product Origin:

    UK

  • Lead Time:

    3-5 Days

  • Service:

Contact Us

  • Product Detail

Specifications
The Bently Nevada 125565-01 is the half-height module card guide listed for the 3500 System half-height module adapter. One guide is used with the internal chassis and three specified assembly screws to support a half-height main module in a full-height rack slot.
Product typeHalf-height module card guide
Product family3500 System
Adapter assemblyHalf-height module adapter
Module formatHalf-height
Mounting roleCard alignment and support
Guide quantity1
Internal chassis125388-01
Chassis quantity1
Screw part no.04300111
Screw quantity3
Rack-slot formatFull-height
Module positionUpper or lower half of slot
Application Industry
01
Half-height card guidanceGuides a half-height main module within the special rack adapter assembly.
02
Rack-slot adaptationWorks with the internal chassis to adapt a full-height rack position.
03
Monitoring rack configurationSupports the documented half-height module arrangement in compatible system racks.
04
Maintenance replacementReplaces the guide component while retaining the correct chassis and assembly hardware.
FAQ
Where is 125565-01 used in a rack assembly?
It is installed as the guide component of the special adapter used for a half-height main module in a full-height slot.
What companion parts are needed with 125565-01?
The complete assembly also requires one internal chassis and three specified fastening screws.
How many guide pieces are required for 125565-01?
The official parts list specifies one guide for each adapter assembly.
What should be checked before fitting 125565-01?
Confirm the module height, rack-slot arrangement, internal chassis and fastening hardware before installation.
Can 125565-01 be used as a stand-alone mounting adapter?
No. It is one component of the documented adapter assembly and must be used with the matching structural and fastening parts.
