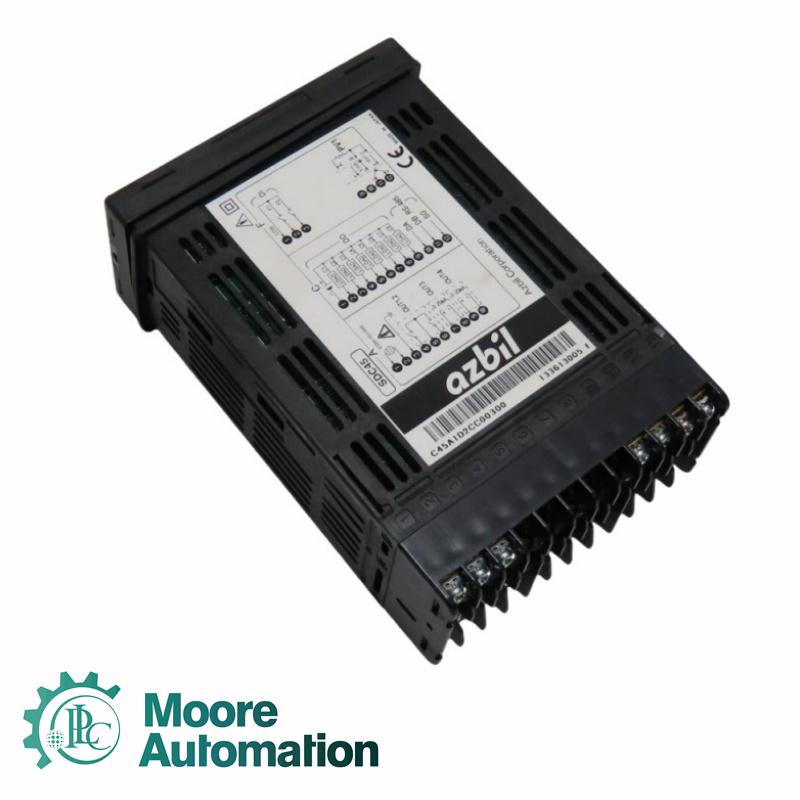

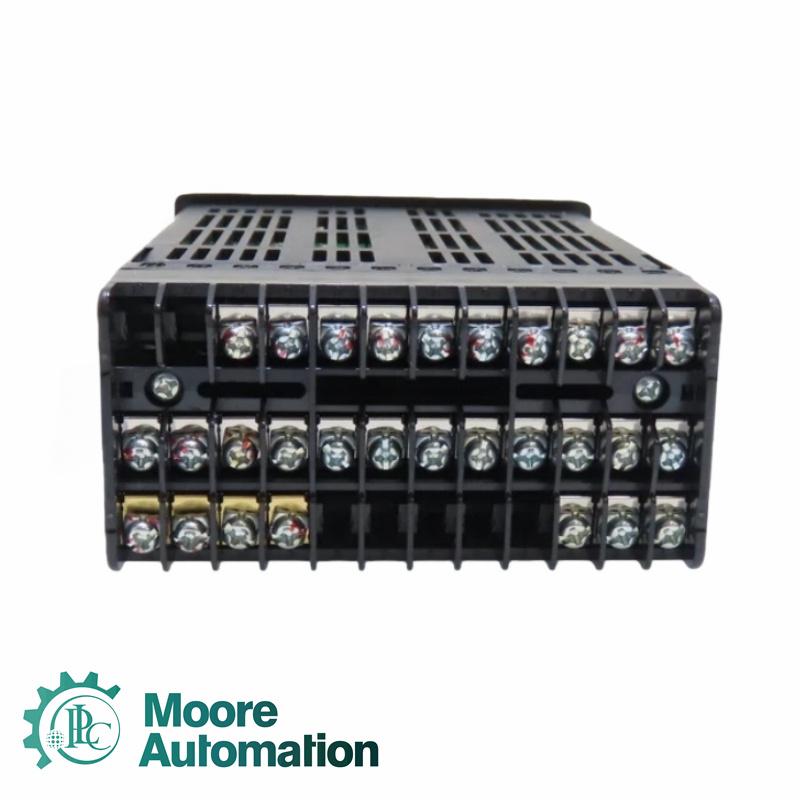

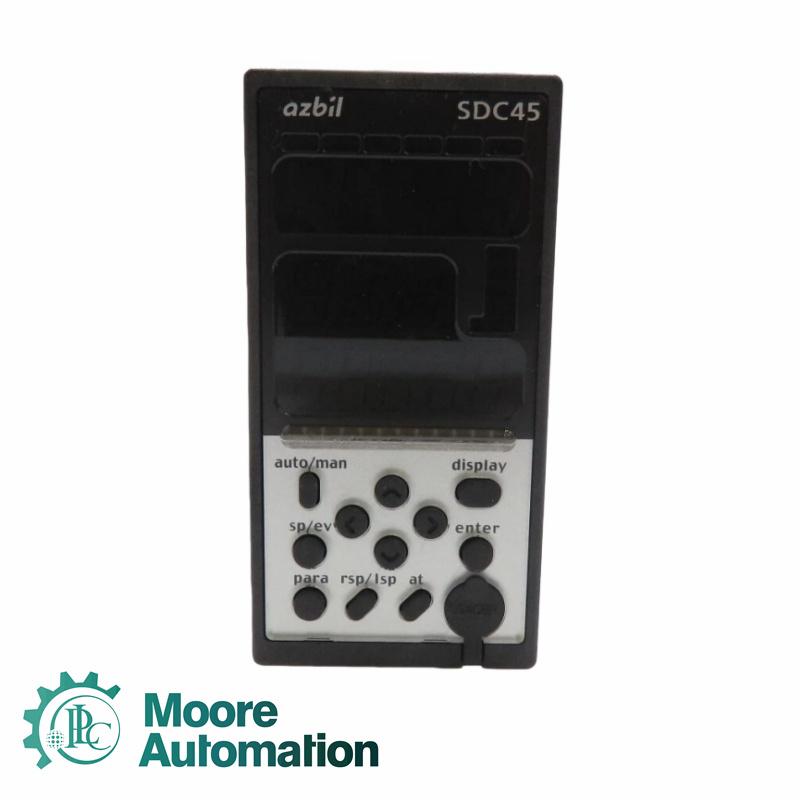

Azbil SDC45 C45A2A2C000300 Digital Display Controller

Sale Manager:

John Yang

Email:

sales3@askplc.com

Mobile(WhatsApp):

86-18150117685

Brand name:

Azbil

Model:

SDC45 C45A2A2C000300

Warranty period:

1 year

Condition:

100% original brand

Transportation period:

DHL FEDEX EMS UPS TNT

AC Power Supply Voltage: AC100–240V (Operating Range: AC85–264V)
Power Frequency: 50/60Hz
Power Consumption: 30VA or less (SDC45), 40VA or less (SDC46)
DC Power Supply Voltage: DC24V (Operating Range: DC21.6–26.4V)
Power Consumption (DC): 12W or less (SDC45), 15W or less (SDC46)
Operating Temperature Range: 0–50°C
Operating Humidity Range: 10–90%RH (non-condensing)
Allowable Vibration: 2m/s² (10–60Hz)
Overvoltage Category: Category II
Pollution Degree: 2
Installation Location: Indoors
Altitude: Below 2000m
Temporary Overvoltage: Power Supply Voltage +250V
Safety Warning: Do not use in the presence of flammable liquids or vapors

Q1: What type of inputs does the Azbil SDC45 controller support?
A1: The SDC45 supports multiple input types, including thermocouples, RTDs, and analog voltage/current inputs for flexible process control applications.

Q2: Does the SDC45 support communication with PLC or SCADA systems?
A2: Yes. The controller offers an optional RS-485 interface compatible with Modbus RTU communication protocol, allowing integration with PLCs or monitoring software.

Q3: Can the controller be configured for both heating and cooling control?
A3: Yes. It supports dual output configuration, allowing PID or ON-OFF control for heating and cooling applications.
