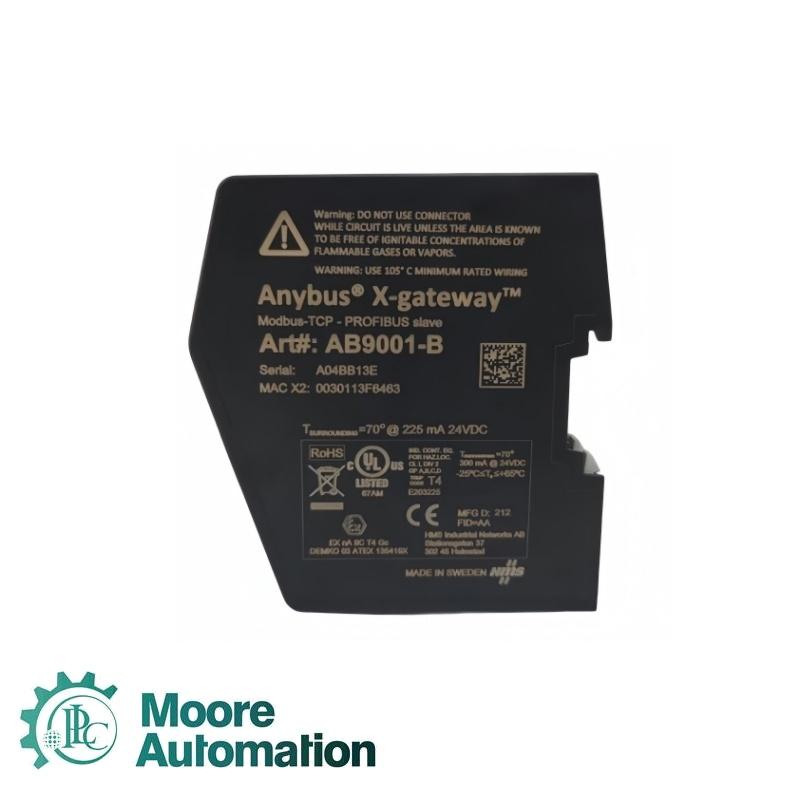

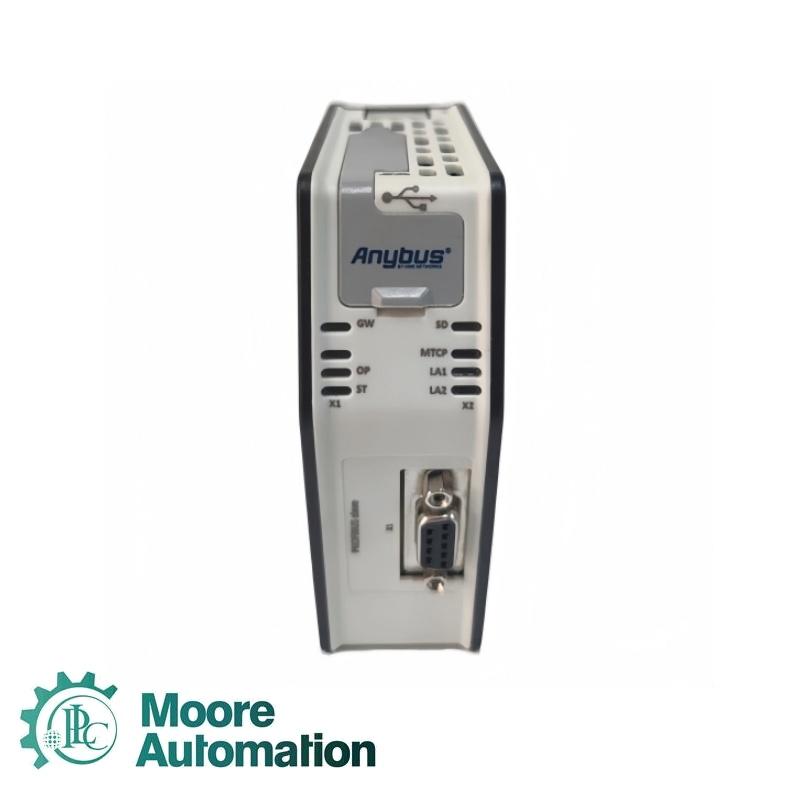

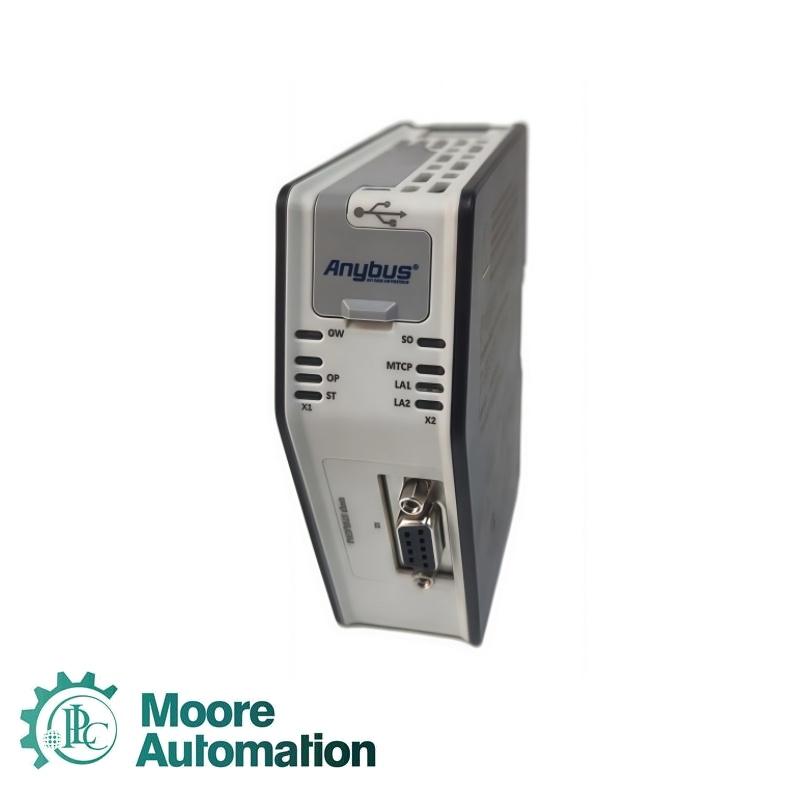

 Anybus AB9001-B X-gateway Modbus TCP Client to PROFIBUS Slave
Anybus AB9001-B Anybus AB9001-B Anybus AB9001-B

Anybus AB9001-B X-gateway Modbus TCP Client to PROFIBUS Slave

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 Year

  • Product Origin:

    UK

  • Lead Time:

    3-5 Days
Contact Us

  • Product Detail

Specifications
The Anybus AB9001-B is an Anybus X-gateway that links a Modbus TCP Client network to a PROFIBUS Slave interface. It provides dual RJ45 Ethernet ports, a 9-pin PROFIBUS connector and DIN-rail mounting for industrial automation cabinets.
Part numberAB9001-B
Product nameAnybus X-gateway
Gateway conversionModbus TCP Client to PROFIBUS Slave
Input voltage24 V DC −15% / +20%
Typical current150 mA at 24 V DC
Maximum current300 mA at 24 V DC
Power connector5.08 mm Phoenix plug
Electrical isolationYes
MountingDIN rail, EN 50022
Ingress protectionIP20
Dimensions (W × H × D)35 × 110 × 101 mm
Net weight160 g
Operating temperature−25 to +60 °C
Storage temperature−40 to +85 °C
Modbus TCP connectors2 × RJ45
Ethernet speed10/100 Mbit/s
Modbus TCP transactions64 max.
Supported Modbus functions1, 2, 3, 4, 5, 6, 15, 16, 23
Modbus TCP I/O256 bytes input / 256 bytes output
PROFIBUS connector9-pin female D-sub
PROFIBUS servicesDP and DP-V1
PROFIBUS address range0–125
PROFIBUS baud rate9.6 kbit/s–12 Mbit/s
PROFIBUS I/O244 bytes input / 244 bytes output
Application Industry
01
Modbus TCP to PROFIBUS integrationTransfers process data between a Modbus TCP client network and a PROFIBUS slave interface.
02
PLC network data exchangeConnects Ethernet-based control equipment with a PROFIBUS controller without changing the two network protocols.
03
Factory-automation gatewaysProvides deterministic cyclic data exchange between the two supported industrial networks.
04
PROFIBUS equipment integrationAdds a defined Ethernet-side data path for installations that retain PROFIBUS control infrastructure.
FAQ
Which two network sides does Anybus AB9001-B connect?
The gateway operates as a Modbus TCP client on the Ethernet side and as a PROFIBUS slave on the fieldbus side.
How much process data can Anybus AB9001-B exchange on each interface?
The Ethernet side supports 256 input and 256 output bytes, while the fieldbus side supports 244 input and 244 output bytes.
What supply is required for Anybus AB9001-B?
Use 24 V DC with a permitted tolerance of −15% to +20%; typical consumption is 150 mA and maximum consumption is 300 mA.
How is Anybus AB9001-B mounted and connected?
Mount the unit on an EN 50022 DIN rail, use the 5.08 mm power plug, dual RJ45 ports and the 9-pin female fieldbus connector.
Which PROFIBUS services and speeds are available on Anybus AB9001-B?
The fieldbus interface supports DP and DP-V1 at automatically selectable rates from 9.6 kbit/s to 12 Mbit/s.
