Ansaldo SUPRB ASI/HVE Cod.45248701 / 45248703 communication board

Ansaldo SUPRB ASI/HVE Cod.45248701 / 45248703 communication board

Ansaldo SUPRB ASI/HVE Cod.45248701 / 45248703  communication board


  • Brand:

    Other
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    Italy
  • Color:

    Brand New
  • Shipping Port:

    Xiamen
  • Lead Time:

    in stock
  • Product Detail

Item Info



Product Name: SUPRB ASI/HVE Cod.45248701 / 45248703

Order(MOQ):  1

Brand:Ansaldo

Payment:  T/T

Product Origin:Italy

Shipping Port:  Xia men



Contact us


Name:John Yang
Email:sales3@askplc.com
Mobile(Whats App):86-1815011768



Product  Info

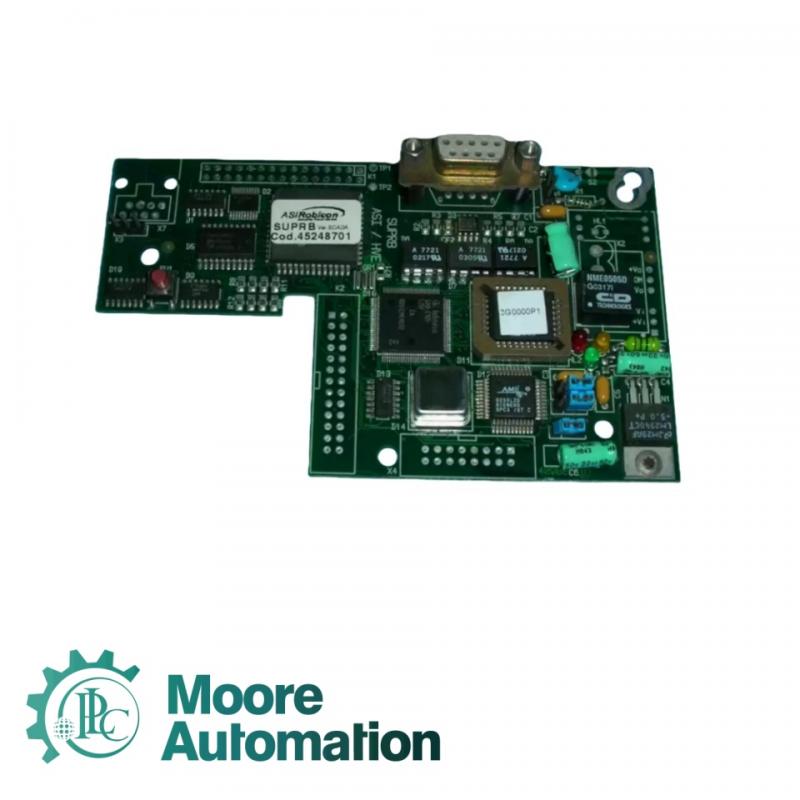

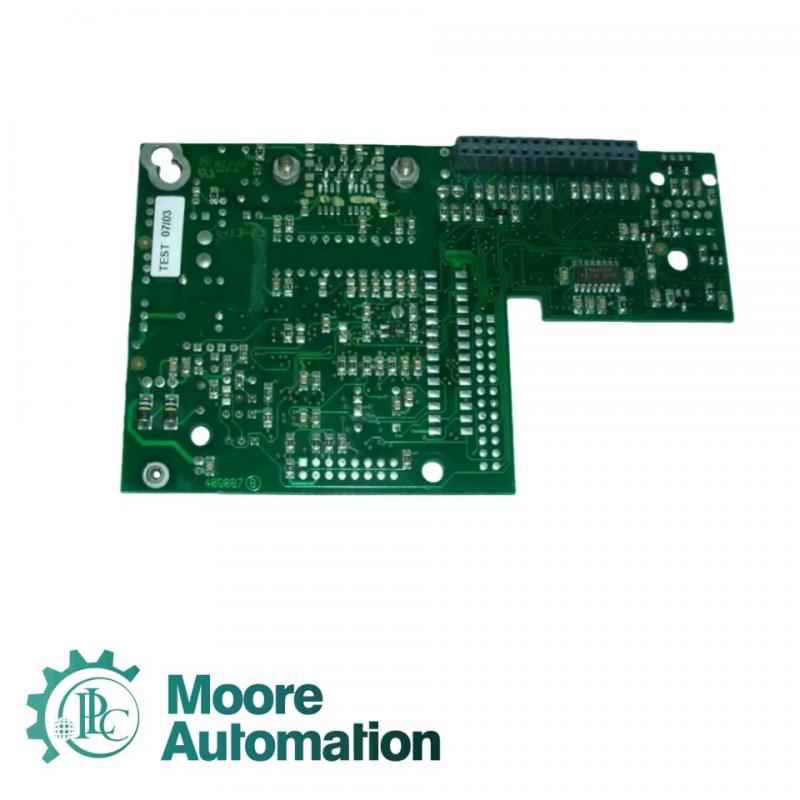

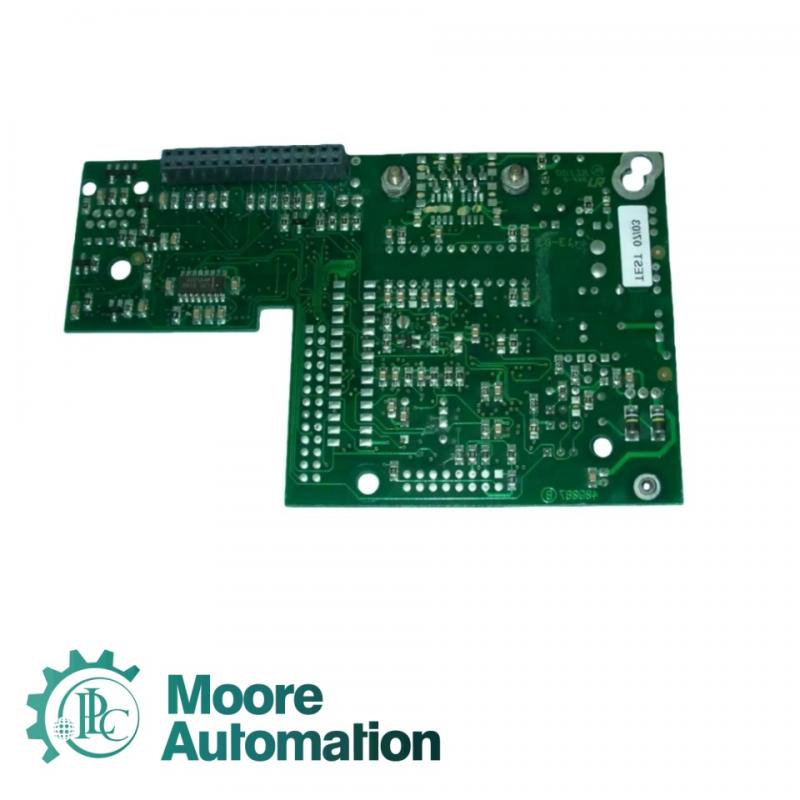

The Ansaldo SUPRB ASI/HVE Cod.45248701 / 45248703  communication board is an option/expansion board used on Answero/Answer Drives series inverters/DC drives and controllers. This board is used to provide fieldbus or serial communication functions for drivers, and is interconnected with the main control board through connectors, jumpers, and indicator lights on the board, providing device status, parameter reading and writing, and recording/fault information transmission capabilities to upper level monitoring/PLC/SCADA.


key Info


Communication interface: Profibus DP, RS-485 half duplex

Connector: 9-pin D-SUB female head

Electrical isolation: 500 V DC

Baud rate/communication rate: 9.6 kbaud... 12 Mbaud

Working temperature: -10 ° C...+55 ° C

Storage temperature: -10 ° C...+60 ° C

 Safety/Standard: Compliant with EN50178

 ESD/anti-static level: commonly ± 4 kV or ± 8 kV or above

 PCB insulation withstand voltage: usually ≥ 500 V DC


FAQ


Q1: What communication protocols does this communication board support?
A1: According to different board versions, the SUPRB series mainly supports Profibus DP communication protocol (RS-485 half duplex); Some versions support ASI/HVE specific communication protocols; Equipped with a 9-pin D-SUB interface, in compliance with the industrial standard Profibus connection definition;


Q2: Does the communication board have electrical isolation protection?
A2: Yes, there is a 500 V DC electrical isolation between the communication interface and the main system, effectively preventing communication errors caused by electrical noise interference and ground potential difference.



Q3:What are the main application areas of this communication board?

A3: Answer Drives Industrial Variable Frequency Drive System
Power automation control equipment for steel, energy, rail transit, and chemical production line control systems Communicate and link with PLC, DCS, HMI, and remote I/O modules.


Q4: Does it support on-site firmware upgrade?
A4: Some SUPRB communication boards support firmware updates through dedicated programming interfaces, but require Ansaldo's official programming software and authorized tools. It is recommended that only professional engineers perform upgrade operations.


Company Info



Moore Automation focuses on providing high-quality automation control system components for the global manufacturing industry, committed to ensuring the continuous operation of customer production lines. The company not only has abundant internal inventory, but also serves as a distribution partner for multiple suppliers, committed to providing customers with the most suitable solutions. Even if the required product is temporarily out of stock, you can submit a quotation request, and we can usually quickly find and provide the required product for you.



Packaging&Shipping



We will ship within 3 working days after receiving payment.

All products undergo strict testing before shipment to ensure quality assurance.

    Use professional anti-static bags for packaging to ensure transportation safety.
