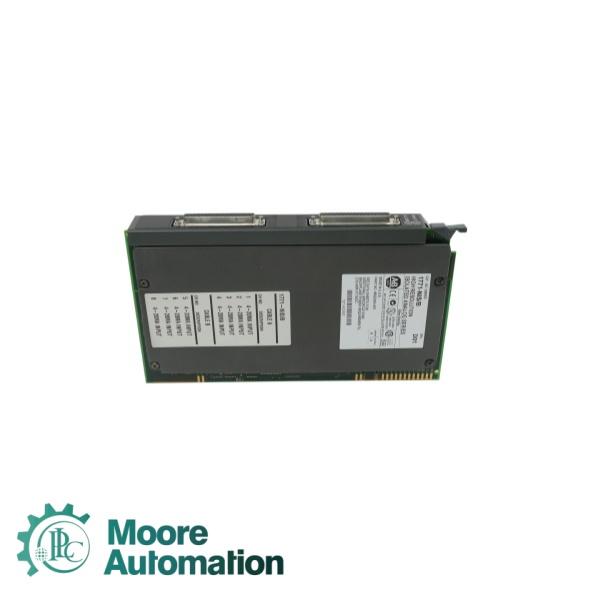

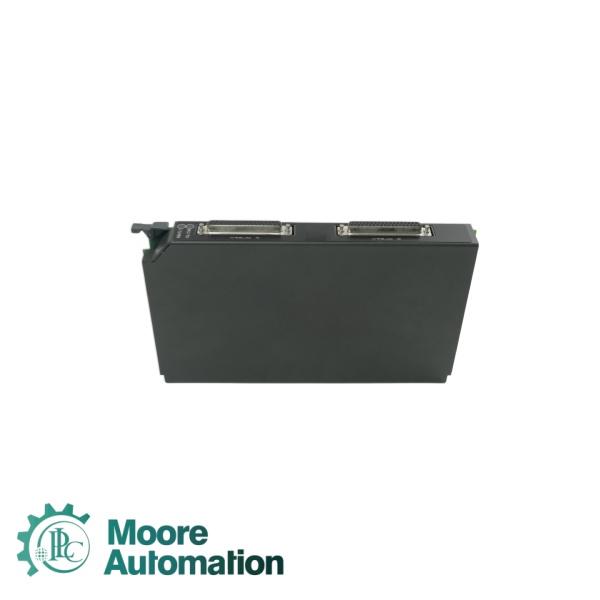

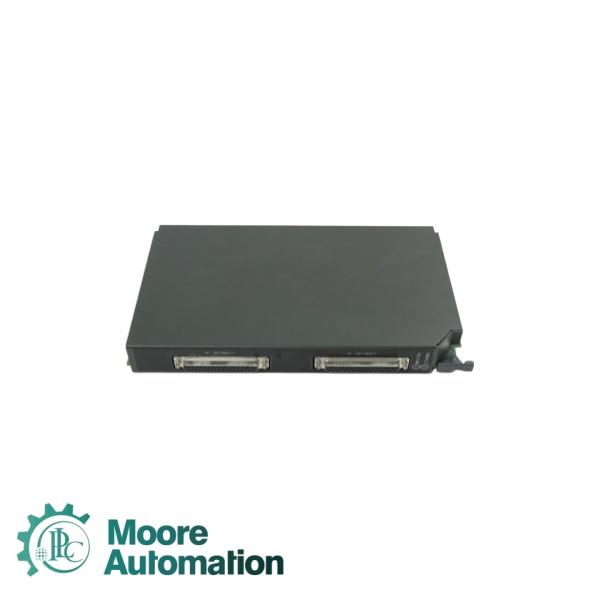

ALLEN BRADLEY 1771-NIS/C Analog Module

Manager:

Yuki

Email:

sales6@askplc.com

WhatsApp:

+8617359287459

8 Isolated Channels:

Onboard Loop Power Supply:

Chassis-Based Backplane Mounting:

Open Circuit Detection:

Minimizes signal degradation and crosstalk by providing heavy electrical isolation between each current input.

Distributes power directly to field instruments, reducing wiring complexity and control panel hardware footprints.

Slots directly into standard 1771 I/O racks alongside PLC-5 processors or adapter modules.

Identifies disrupted field wiring loops or failed sensor connections automatically within 5 seconds.

Q. What is the core advantage of the Allen‑Bradley (AB) ecosystem over mixing components from different brands?

A: The main advantage is deep, seamless integration across the entire automation chain.

AB’s Logix control platform (e.g., ControlLogix, CompactLogix) shares a common development environment (Studio 5000), tag-based memory structure, and network protocols. This eliminates the need for custom gateways, reduces programming complexity, and provides unified diagnostics. When you use AB drives (PowerFlex), HMIs (PanelView), and safety controllers, you get plug‑and‑play interoperability, faster commissioning, and single‑source support – something that is very difficult to achieve with a multi‑vendor approach.

Q. How does Allen‑Bradley handle cybersecurity in modern industrial control systems?

A: AB has embedded cybersecurity at multiple levels.

Defense‑in‑depth design includes features like controller‑level identity validation, digital signatures for firmware, and user role‑based access control (Rockwell Automation Security Framework).

Converged Plantwide Ethernet architectures, developed jointly with Cisco, provide network segmentation, firewalls, and intrusion detection.

AB controllers also support secure communication protocols and secure firmware updates.

For critical assets, the FactoryTalk® AssetCentre centralizes security policies, audit logs, and disaster recovery. Regular security advisories and patching tools are provided through Rockwell’s Knowledgebase.

Q. Does Allen‑Bradley offer high availability and redundancy for mission‑critical processes?

A: Yes, AB provides several redundancy solutions:

ControlLogix Redundancy uses two chassis (primary/secondary) with synchronised memory and bumpless switchover for I/O, controller, and network failures. Typical switchover time is less than 20 ms.

For applications requiring high process availability, the PlantPAx® DCS (Distributed Control System) builds on ControlLogix with redundant power supplies, I/O (e.g., 1756‑Redundant I/O), and Ethernet infrastructure.

Drives like PowerFlex 755 offer embedded redundancy options.

These solutions are widely used in oil & gas, water/wastewater, and power generation where unexpected downtime is not acceptable.
