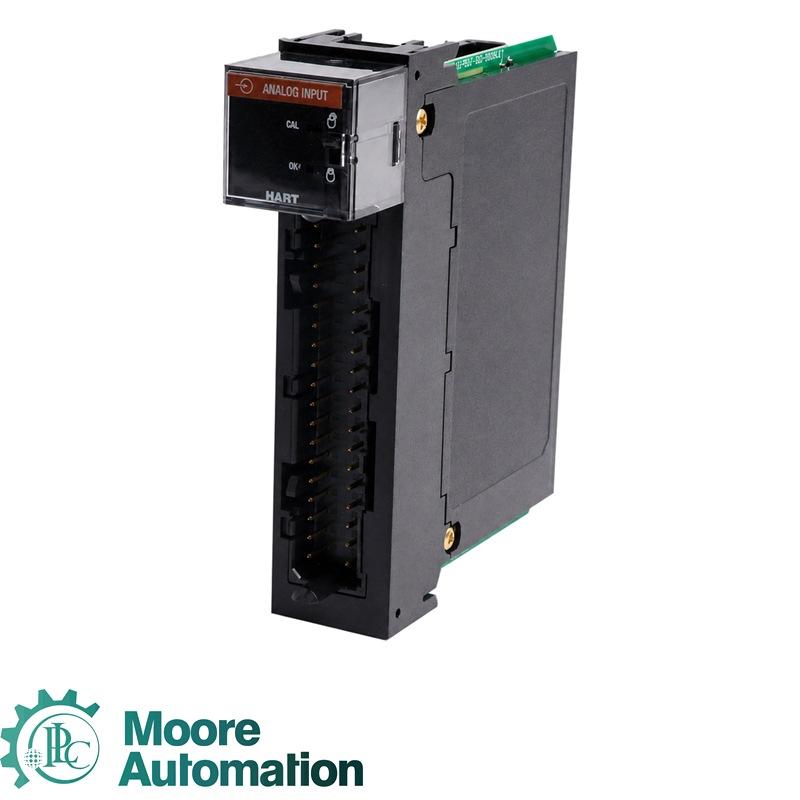

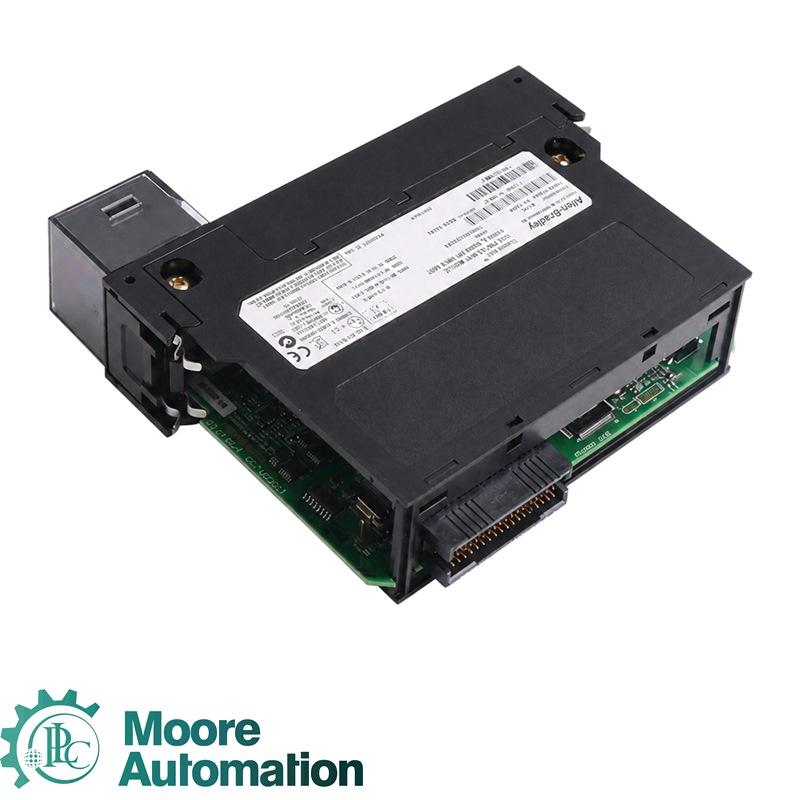

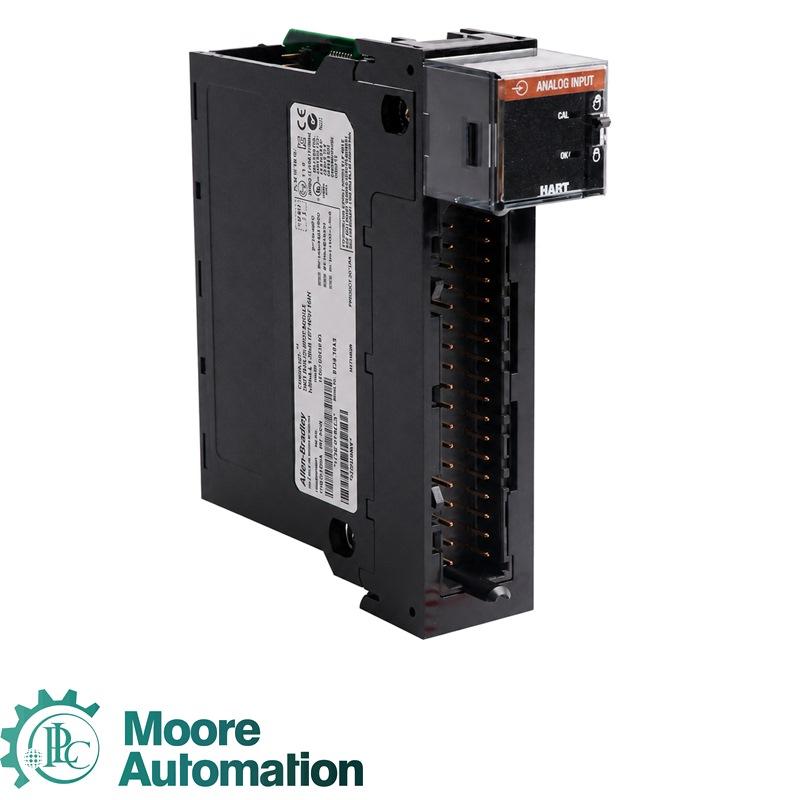

The Allen-Bradley 1756-IF16H is a ControlLogix HART analog input module for 16 current-input channels with 0…20 mA or 4…20 mA ranges.
It combines analog current acquisition, HART device data and channel diagnostics in one ControlLogix module. Confirm the exact series, firmware and removable terminal block before ordering.
Item NO.:
1756-IF16HOrder(MOQ):
1Payment:
T/TProduct Origin:
MexicoColor:
Brand NewShipping Port:
XiamenLead Time：
Availability on requestALLEN-BRADLEY CONTROLLOGIX 1756 I/O
The Allen-Bradley 1756-IF16H is a ControlLogix HART analog input module for 16 current-input channels with 0…20 mA or 4…20 mA ranges.
Designed for process instrumentation, the 1756-IF16H connects HART-capable current loops to a Logix controller and provides analog values, HART variables, device status and diagnostic information.
Lifecycle / compatibility note: Rockwell Automation lists catalog number 1756-IF16H as Active. Lifecycle, factory lead time, firmware availability and certification markings can change; confirm the offered unit in the written quotation.
|
16
Current-input channels
|
0…20 / 4…20 mA
Supported input ranges
|
HART
Integrated digital communication
|
Active
Rockwell lifecycle status
|
The 1756-IF16H belongs to the Allen-Bradley ControlLogix 1756 I/O family. It provides 16 differential current inputs and an integrated HART interface for process transmitters and other compatible field devices.
The module can return analog-only data, analog data with HART primary variables, or analog and HART information organized by channel. Available HART variables and status depend on the connected field device, module series, project configuration and firmware.
| Manufacturer / Brand | Rockwell Automation / Allen-Bradley |
| Catalog number | 1756-IF16H |
| Product family | ControlLogix 1756 I/O |
| Module type | HART analog current-input module |
| Number of inputs | 16 current-input channels |
| Input architecture | Differential inputs; follow Rockwell wiring and grounding requirements |
| Input ranges | 0…20 mA or 4…20 mA |
| HART support | Integrated HART protocol interface |
| Published resolution | 16…21 bits; effective resolution depends on series and filter selection |
| Data choices | Analog Only; Analog and HART PV; Analog and HART by Channel |
| Channel-to-channel isolation | No galvanic isolation between individual input channels |
| Operating temperature | 0…60 °C (32…140 °F) |
| Compatible RTBs | 1756-TBCH cage-clamp or 1756-TBS6H spring-clamp, 36 pin |
| Installation | Compatible 1756 ControlLogix chassis; open-style equipment |
Technical values are product-identification guidance. Confirm the exact series, revision, markings, documentation and application requirements before ordering or installation.
Platform: Install only in a compatible 1756 ControlLogix chassis. It is not a CompactLogix I/O module.
Terminal block: Confirm whether the quotation includes the required 1756-TBCH or 1756-TBS6H 36-pin removable terminal block.
Series and firmware: Match the offered catalog number, series and firmware to the Studio 5000 project, electronic keying, Add-On Profile and certification requirements. Series A and Series B ratings are not identical.
Alternatives: 1756-IF16, 1756-IF16IH and the conformal-coated 1756-IF16HK are not automatic drop-in replacements. Review wiring, isolation, configuration, firmware, power and approvals before substitution.
It is a 16-channel ControlLogix analog current-input module with an integrated HART interface.
Rockwell specifies 0…20 mA and 4…20 mA current ranges.
No. The module does not provide galvanic isolation between individual input channels.
The module provides integrated HART access. Compatible software, firmware, field wiring and HART devices are still required.
Use a 36-pin 1756-TBCH cage-clamp RTB or 1756-TBS6H spring-clamp RTB, subject to the application requirements.
Rockwell Automation currently lists the catalog number as Active. Recheck lifecycle and the exact series when requesting a quotation.
Contact ControlDCS for current price, availability, condition, revision, packaging, warranty and delivery options. For an accurate quotation, include the required quantity, destination country and any mandatory series or revision.
Email: sales3@askplc.com
WhatsApp: +8618150117685
Inquiry subject: 1756-IF16H Request
This page is a product-identification and sourcing reference, not a substitute for Rockwell Automation installation, safety or compatibility documentation. Verify catalog number, series, firmware, electrical ratings, wiring, software compatibility and certification markings before purchase or installation. ControlDCS is an independent supplier and is not affiliated with or endorsed by Rockwell Automation. Trademarks are used only for identification.
