 ALERTON ACM-000-000-000-000-00-00-00 50080121-001 Ascent Control Module
ACM-000-000-000-000-00-00-00 50080121-001 ACM-000-000-000-000-00-00-00 50080121-001 ACM-000-000-000-000-00-00-00 50080121-001

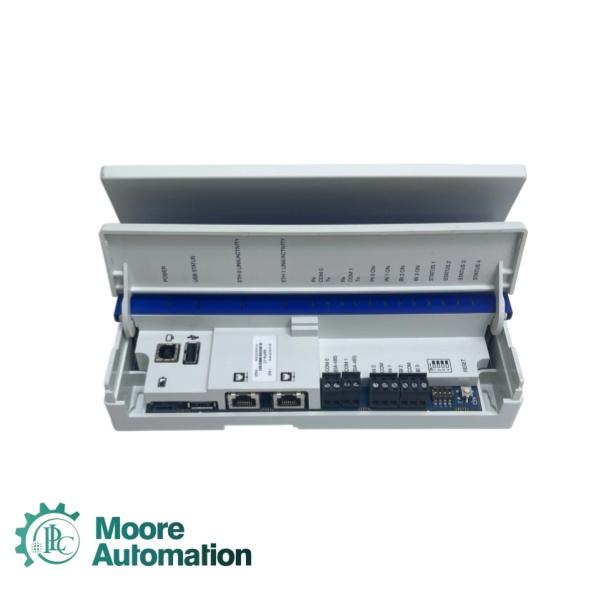

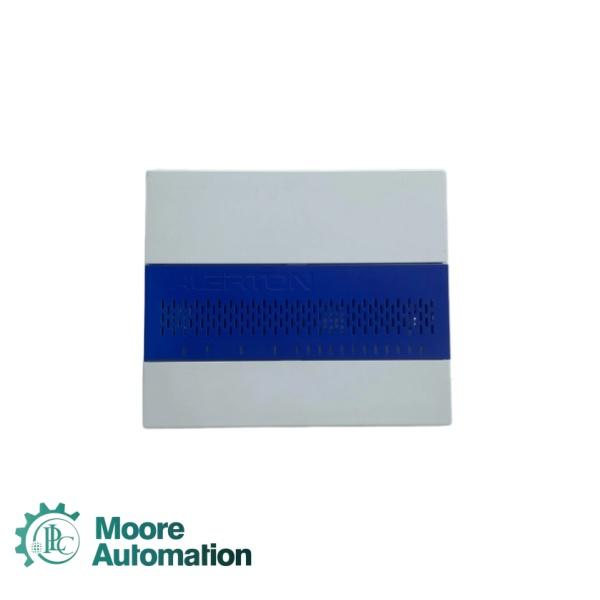

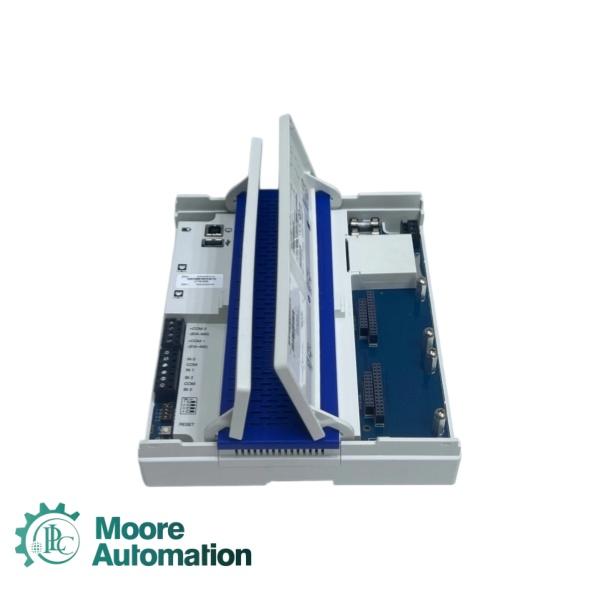

ALERTON ACM-000-000-000-000-00-00-00 50080121-001 Ascent Control Module

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

  • Item NO.:

    50080121-001

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    USA

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 year

  • Product Origin:

    USA

  • Lead Time:

    3-5 days
Contact Us

  • Product Detail

Specifications
The ALERTON ACM-000-000-000-000-00-00-00 50080121-001 is an Ascent Control Module in the Alerton BACtalk Ascent Series. It is a configurable BACnet Building Controller that combines Alerton BACnet functionality with the Tridium Niagara Framework. The ACM provides two Ethernet ports, two onboard EIA-485 networks, expansion for additional communication trunks, global automation functions, schedules, trendlogs and alarms. Before commissioning, the required base device license, capacity, drivers and option cards should be verified for this configuration.
Configuration referenceACM-000-000-000-000-00-00-00
EthernetTwo 10/100/1000Base-T ports
Material number50080121-001
Onboard serial networksTwo EIA-485 networks
Supply power20–30 VAC @ 40 VA, 47–63 Hz
Expansion capacityUp to six EIA-485 LANs, two EIA-232, two LON, or four TUX trunks
ProcessorQuad-core ARM Cortex-A9 (Freescale i.MX6Quad)
Operating environment−20 to 65 °C; 0–95% RH, non-condensing
Memory1 GB DDR3 SDRAM, 64-bit, 533 MHz (1066 MT/s)
Mounting and dimensions35 mm DIN rail; 185 × 220 × 44 mm
Application Industry
01
Central HVAC Plant ControlCoordinates chillers, boilers, pumps, air-handling units and related building-control sequences with schedules, alarms and trendlogs.
02
Multi-protocol Building IntegrationIntegrates BACnet, Modbus, Alerton TUX, Alerton AXM/EXP and Niagara-supported devices across Ethernet and serial networks.
03
Commercial and Institutional BuildingsProvides supervisory control for offices, schools, healthcare facilities, data centers and multi-building campuses.
04
Retrofit and System ConsolidationSupports modernization of Alerton building-control installations by combining global-controller functions and multiple communication trunks in one platform.
FAQ
What is ALERTON ACM-000-000-000-000-00-00-00 50080121-001?
It is an Alerton Ascent Control Module and BACnet Building Controller that combines Alerton BACnet functions with the Tridium Niagara Framework.
Does this ACM configuration require a software license?
Yes. Alerton states that a functional ACM requires at least one base device license. Capacity, drivers and option cards should be confirmed before ordering.
What power supply and operating environment are required?
The ACM requires 20–30 VAC at 40 VA, 47–63 Hz, and operates from −20 to 65 °C at 0–95% RH, non-condensing, without a battery.
Which networks and protocols does the ACM support?
It supports BACnet over Ethernet and IP, BACnet MS/TP, Modbus TCP/RTU, Alerton TUX, Alerton AXM/EXP and other Niagara-supported protocols.
Can Moore Automation verify the required license and options before shipment?
Yes. Send the existing system architecture, device count, required protocols and option-card details so the compatible ACM configuration can be checked before ordering.
