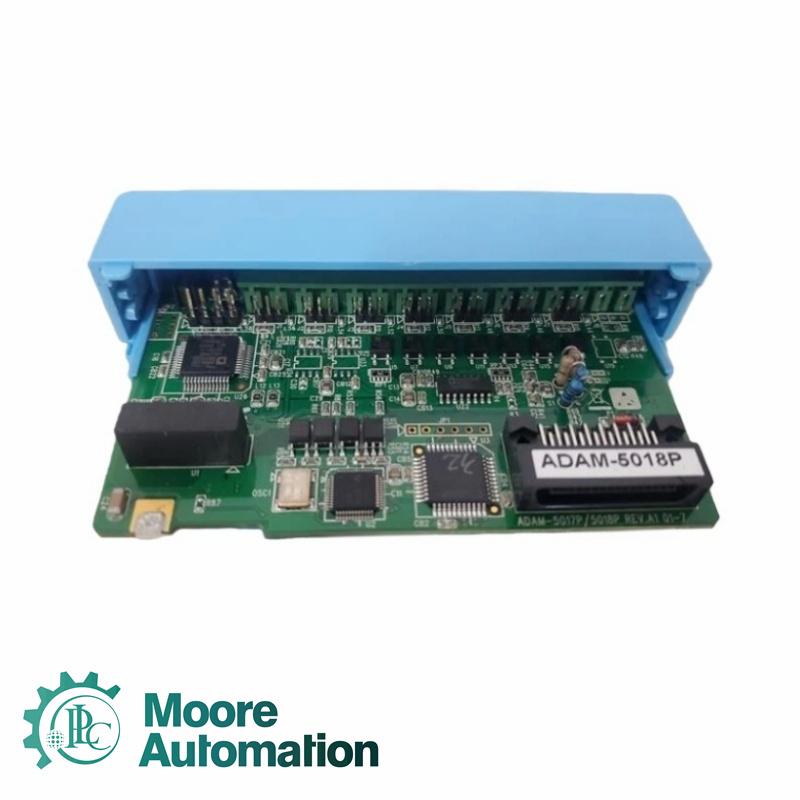

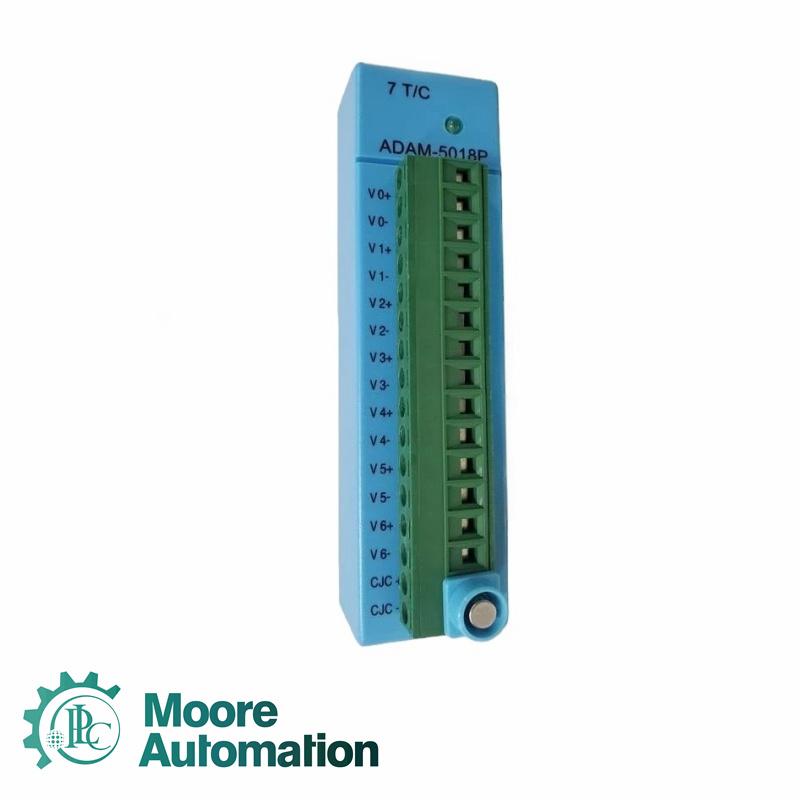

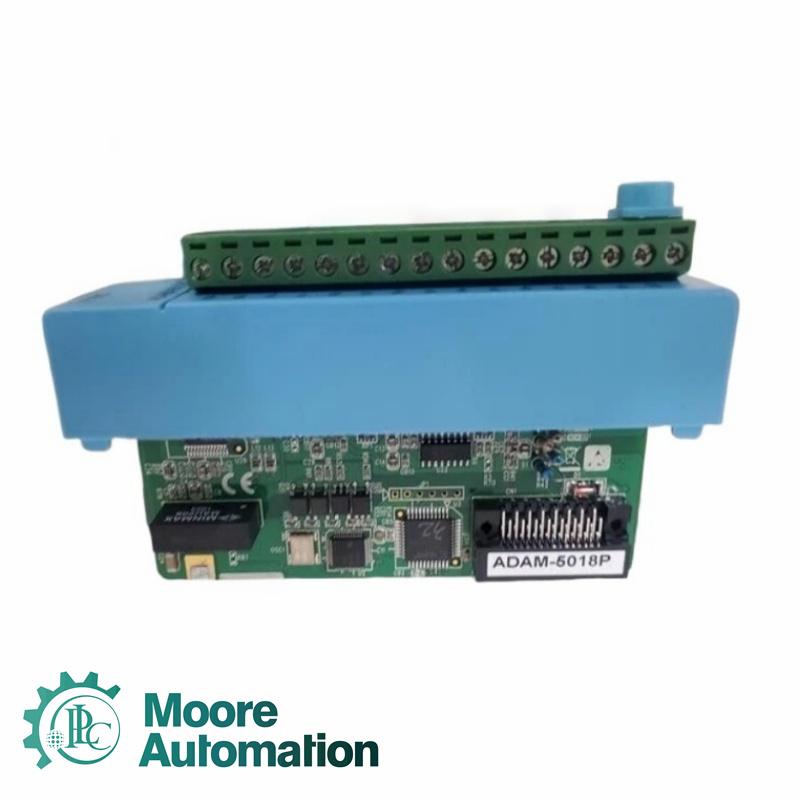

ADVANTECH ADAM-5018 7-Ch Thermocouple Input Module

 Item ADAM-5018

Certification:CE, FM
Connector:1 × Plug-in screw terminal (#14–22 AWG)
Enclosure:ABS + PC
Power Consumption:0.63 W (max)
Input Type:mV, V, mA, thermocouple
Number of Channels:7 differential
Accuracy:Voltage mode ±0.1% or better; Current mode ±0.2% or better
Input Range:±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±20 mA
Input Impedance:2 MΩ
Resolution:16-bit
Sampling Rate:10 samples/sec (total)
Bandwidth:13.1 Hz @ 50 Hz; 15.72 Hz @ 60 Hz
CMR (50/60 Hz):92 dB min
Span Drift:±25 PPM/°C
Zero Drift:±6 μV/°C
Isolation Voltage:3,000 VDC
Overvoltage Protection:Withstands up to +35 V
Thermocouple Types and Ranges:J: 0–760°C; K: 0–1,370°C; T: -100–400°C; E: 0–1,000°C; R: 500–1,750°C; S: 500–1,750°C; B: 500–1,800°C
