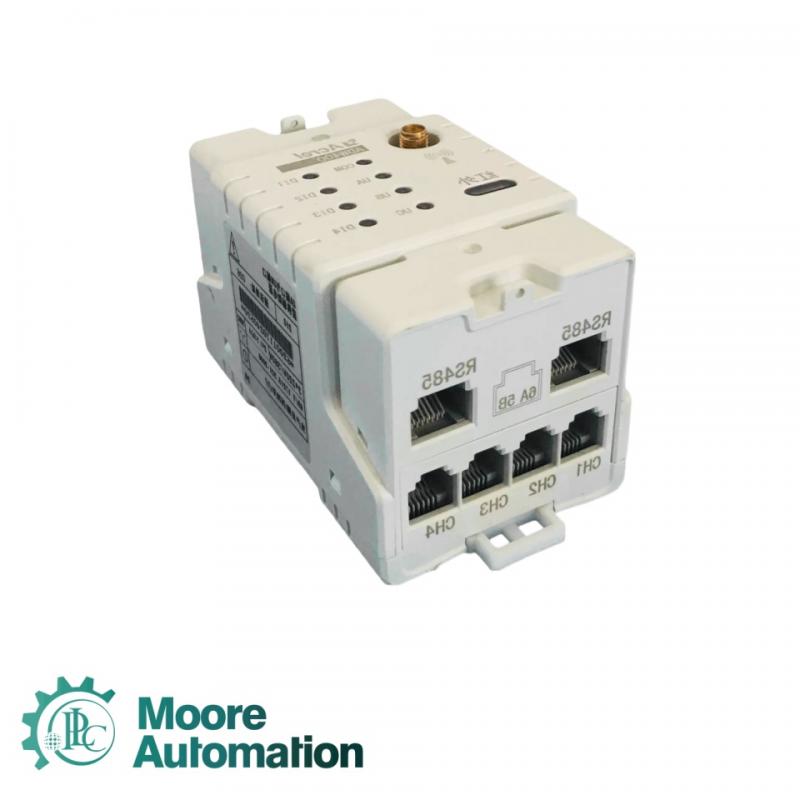

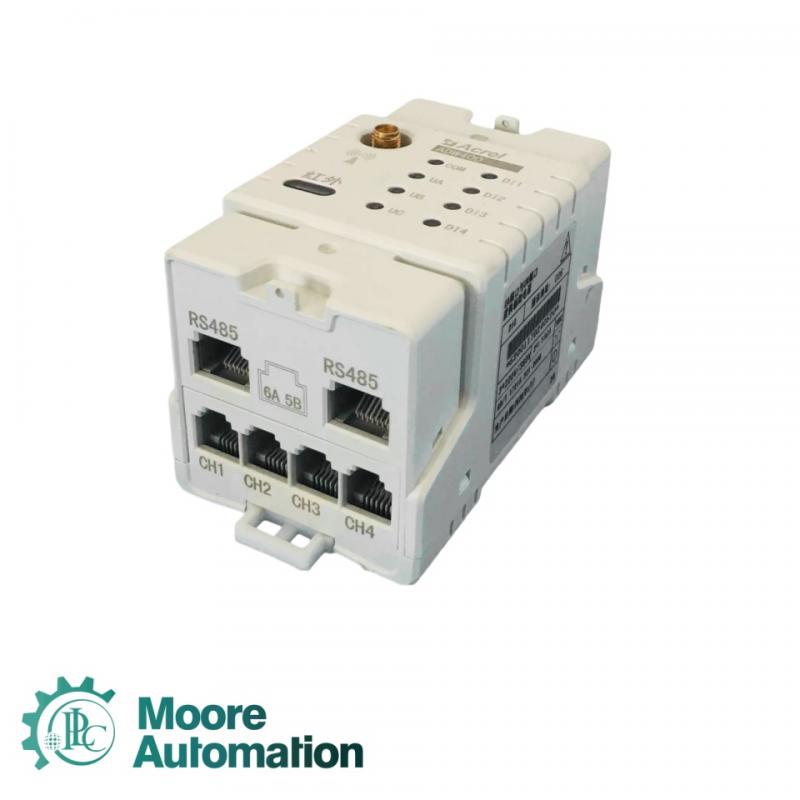

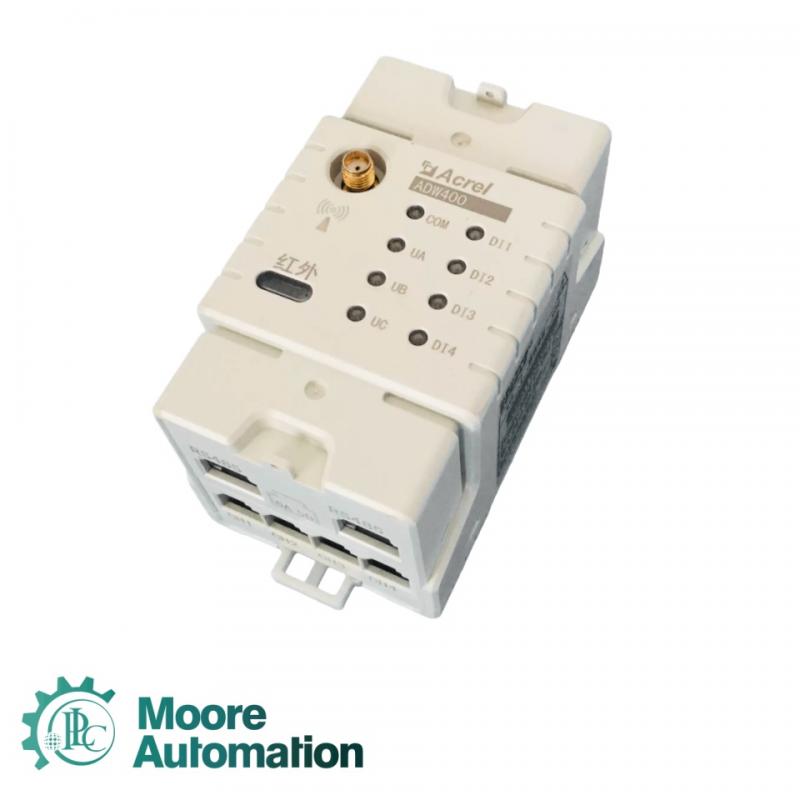

Acrel ADW400-D10-1S Environmental monitoring module

Acrel ADW400-D10-1S Environmental monitoring module

Acrel ADW400-D10-1S Environmental monitoring module

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
China
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Item Info

Product Name: ADW400-D10-1S

Brand: Acrel

Product Origin:China

Order(MOQ): 1

Payment: T/T

Shipping Port: Xia men

Contact

John Yang

Email:sales3@askplc.com
Mobile(Whats App):86-18150117685

Description

Acrel ADW400-D10-1S is a high-precision, modular environmental monitoring device used for real-time monitoring of key environmental parameters in industrial and commercial settings. This module can collect environmental information such as temperature, humidity, smoke concentration, door magnetic status, water leakage alarm, voltage and current, and transmit it to Acrel's monitoring system or upper computer platform through standard bus or network interface for centralized management and data analysis. ADW400-D10-1S adopts DIN rail installation design, which is easy to integrate into distribution cabinets or environmental monitoring chassis;

Key Info

Monitoring types: temperature, humidity, smoke, door magnets, water leakage, voltage, current, etc
Input voltage: DC 24V ± 10%
Power consumption: up to approximately 5 W
Input current: approximately 200 mA (typical)
Working temperature: 0 ° C~+50 ° C
Storage temperature: -20 ° C~+70 ° C
Working humidity: 5%~90% RH (no condensation)
Storage humidity: 5%~95% RH (no condensation)
Installation method: Standard 35mm DIN rail installation
Communication interface: RS485/Modbus RTU/TCP (configured according to version)
Signal interface: dry contact, analog input, digital input/output
Protection level: IP20 (suitable for installation inside cabinets)
Certification standards: CE, RoHS

FAQ

Q: What environmental parameters can ADW400-D10-1S monitor?

A: It can monitor temperature, humidity, smoke, door magnetic status, water leakage, voltage, current, etc. It supports analog and digital signal input and can configure monitoring channels according to actual needs.

Q: What are the power supply requirements for the module?

A:The module uses a DC 24V ± 10% power supply, with a typical power consumption of about 5 W and an input current of about 200 mA. It is recommended to use a stable power supply to ensure long-term reliable operation.

Q: What are the temperature and humidity requirements for the working environment?

A: The working temperature of the module is 0 ° C~50 ° C, and the storage temperature is -20 ° C~70 ° C. The working humidity is 5%~90% RH (no condensation), and the storage humidity is 5%~95% RH (no condensation).

Q: How to install the module?

A: It is installed using standard 35mm DIN rails, making it easy to integrate into distribution cabinets or environmental monitoring chassis. It is easy to install and maintain.
