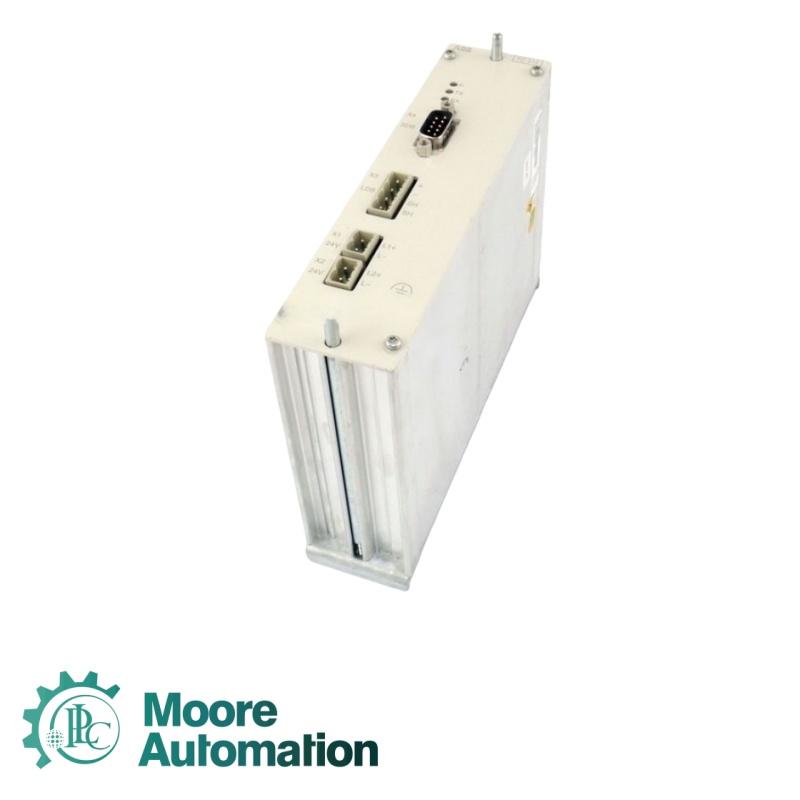

ABB TC512 3BSE006383R1 TWISTED PAIR MODEM

Establish Contact With Us

Transmission Medium: Unshielded Twisted Pair (UTP) / Shielded Twisted Pair (STP), 2-wire/4-wire configurable
Transmission Rate: 300 bps – 115.2 kbps (adjustable), auto-baud detection supported
Transmission Distance: Up to 12 km at 300 bps; Up to 1.2 km at 115.2 kbps (UTP, 24 AWG)
Operating Frequency: 300 Hz – 1 MHz (adaptive to transmission rate)
Signal Encoding: NRZ (Non-Return-to-Zero) / Manchester encoding (configurable)
Input Voltage: 24 V DC (nominal), allowable range 18 V DC – 32 V DC
Power Consumption: ≤ 2.5 W (typical), ≤ 3.5 W (maximum, full load)
Isolation Level: 2500 V AC (1 minute) between communication port and power supply; 1500 V AC (1 minute) between RS-232 and RS-485 ports
Operating Temperature Range: -20 °C to +60 °C (no condensation, no icing)
Storage Temperature Range: -40 °C to +85 °C (relative humidity 5% – 95%, non-condensing)
Relative Humidity: 5% – 95% (operating/storage, non-condensing)
Protection Class: IP20 (front panel), suitable for cabinet mounting
LED Indicators: Power (green, steady on when normal), Link (green, flashing during communication), Error (red, lit/flashing on fault), Signal Strength (yellow, proportional to signal level)
Diagnostic Functions: Overvoltage/undervoltage alarm, communication link loss detection, baud rate mismatch alarm, fault information stored in non-volatile memory
EMC Compliance: EN 61000-6-2 (industrial immunity), EN 61000-6-4 (industrial emission), EN 55022 Class A
Certification Standards: CE (EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU), UL/cUL Listed (UL 508), ATEX (for hazardous area use, optional)
