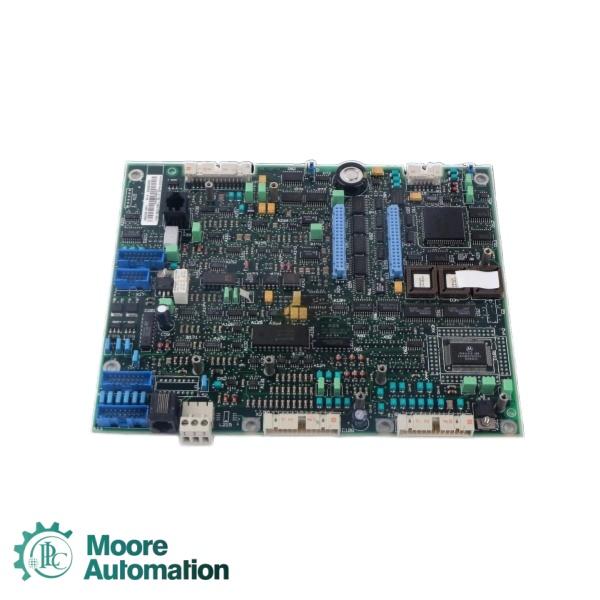

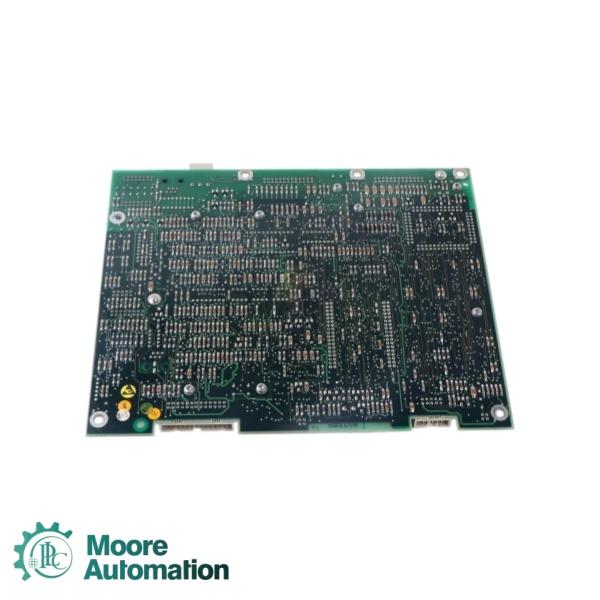

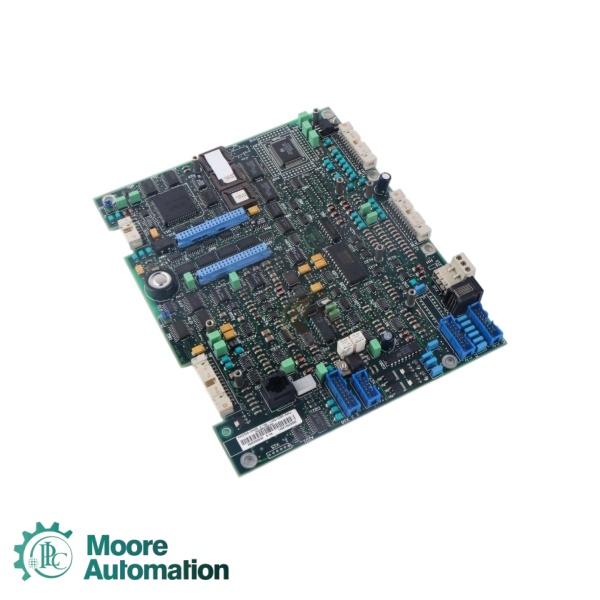

ABB SDCS-CON-1 Control Board

Specifications

The ABB SDCS-CON-1 is a high-performance digital DC drive control board module engineered to manage and execute core signal processing within heavy industrial converter topologies. Operating as the central intelligence hub inside the drive's control framework, the card interprets supervisory commands and dynamically coordinates motor velocities, firing pulse synchronization, and torque parameters. By offloading heavy algorithmic motor control loops, the unit ensures stable execution profiles and preserves total system electrical integrity across high-demand distribution networks.

Field Applications

· Metals & Heavy Material Processing: Maintained within modern or retrofitted hot/cold steel rolling mills and automated wire drawing benches to strictly coordinate high-torque acceleration ramps and roll speed synchronization.

· DC Drive Control Systems: Installed straight inside the main control cage of an ABB DCS500 or DCS600 converter cubicle. It connects via ribbon cables to peripheral measurement and power cards, translating speed references from an upper-level PLC into high-speed thyristor switching signals to govern heavy DC machinery.

· Pulp, Paper, & Printing Mills: Regulates multi-section sectional drives on paper-making machinery to manage continuous tension controls and web roll velocity without tearing materials.

· Mining Infrastructure & Heavy Conveyors: Governs large mine hoists, raw material grinders, and multi-motor industrial conveyor lines where dynamic load shifting requires immediate torque compensation.

FAQ

Q1: What is ABB known for in the industrial automation industry?

A1: ABB is a global leader in power and automation technologies . The company is renowned for its comprehensive portfolio of industrial drives (ACS series), robotics, distributed control systems (800xA), and PLC systems (AC500). ABB products are widely used across power generation, oil and gas, chemical manufacturing, mining, and heavy industry applications .

Q2: Are ABB products compatible with each other across different series?

A2: Generally, yes. ABB designs its products with backward and cross-series compatibility in mind. For example, the KVC758A board is specifically designed for ACS5000 drives but is also compatible with ACS800 and ACS880 cabinets . Similarly, ABB's Advant OCS 800xA DCS systems integrate with various ABB drive platforms, allowing for seamless system expansion and upgrades .

Q3: What makes ABB products suitable for harsh industrial environments?

A3: ABB products are engineered with industrial-grade specifications including :

· Wide operating temperature ranges (e.g., -40°C to +70°C for the KVC758A)

· High electrical isolation ratings (520 VDC or higher) to protect against voltage transients and ground loops

· Electromagnetic resilience to withstand noisy industrial environments

· Robust construction with protection against dust, moisture, and vibration

· Built-in protection mechanisms including overvoltage and overcurrent safeguards

Our Service

1. Delivery Port: Xiamen, China

2. FedEx Express, DHL Express, TNT Express, UPS Express,

3. Inventory,immediate delivery now

4. All products are brand new in original box.

5. We will packge all goods in one carton with foam to shock resistance.

6. You’ll get the dimension and weight once we shipped.
