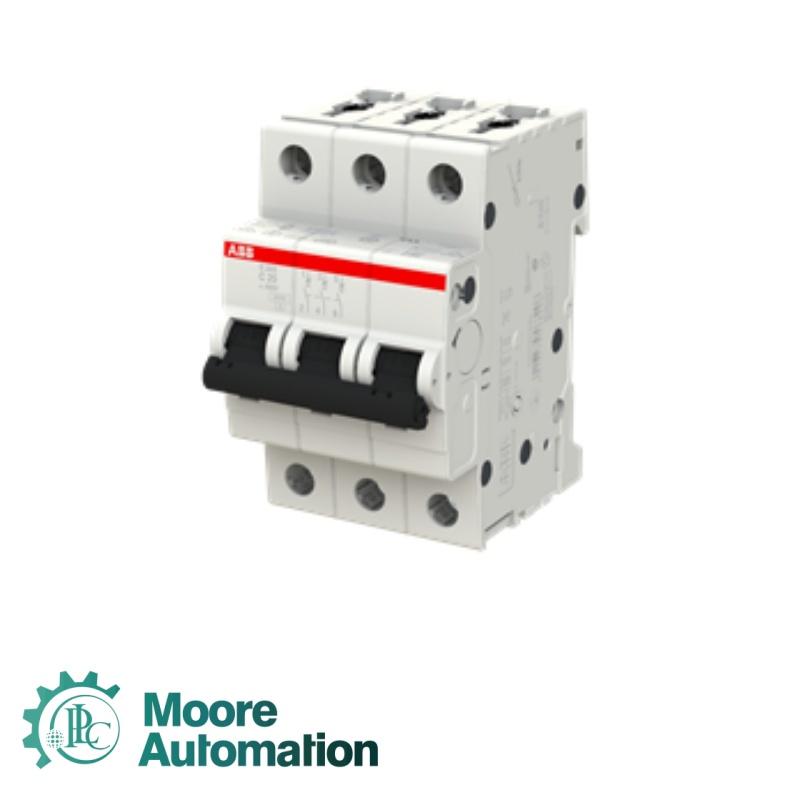

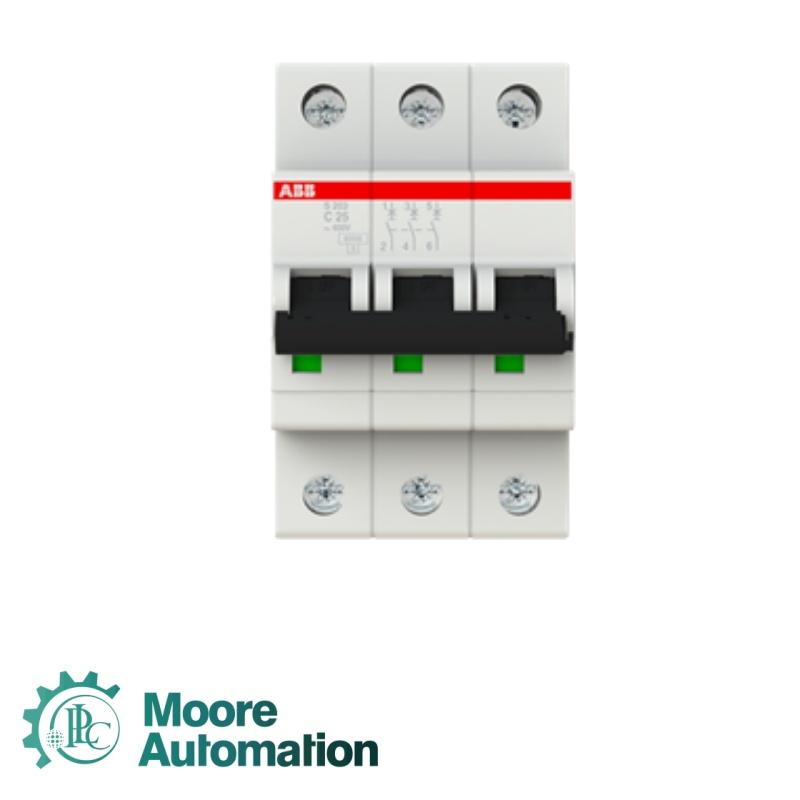

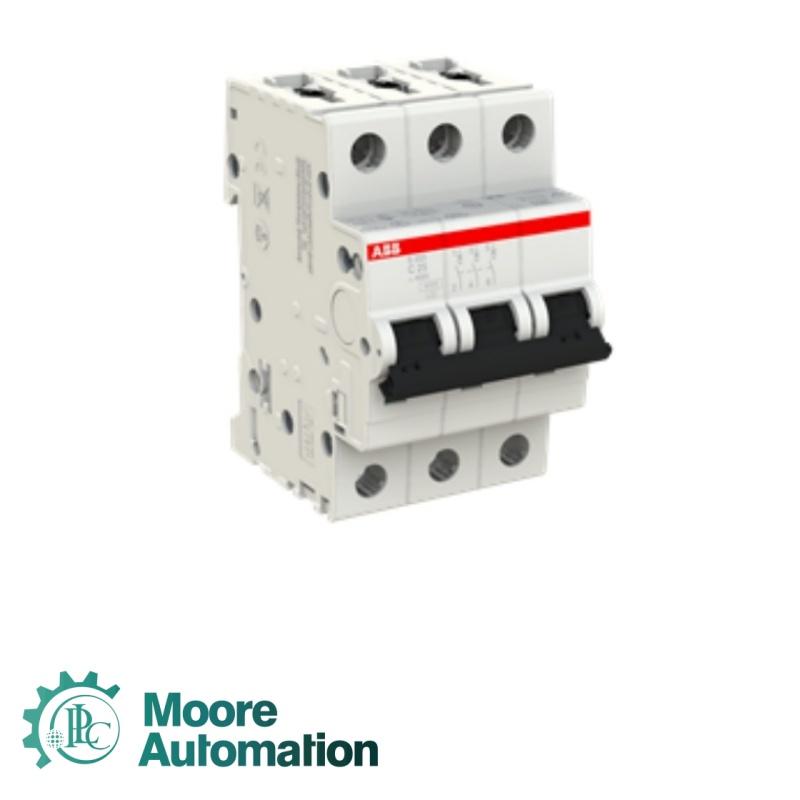

ABB S203-C25 2CDS253001R0254 Miniature Circuit Breaker

Should you require any of these products/solutions, please do not hesitate to contact me via the following channels:

Sales manager: John Yang

WhatsApp:+86 18150117685

Email: sales3@askplc.com

<Product Brief>

Product Model： S203-C25 2CDS253001R0254

Product Description：Miniature Circuit Breaker

Brand/Manufacturer:  ABB

Country of origin: Switzerland
Standard lead time ex-works :  In stock

Worldwide shipping: DHL, UPS, Fedex, and TNT

<Performance Specifications>

Dielectric Test Voltage: 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (230 V AC) 20 kA, (400 V AC) 10 kA, (440 V AC) 10 kA, (230 V) 20 kA, (400 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics): (230 V AC) 15 kA, (400 V AC) 7.5 kA, (440 V AC) 7.5 kA
Power Supply Connection: Arbitrary
Contact Position Indication: Red ON / Green OFF
Energy Limiting Class: 3
Electrical Endurance: 20000 AC cycle
Mechanical Endurance: 20000 cycle
Number of Protected Poles: 3
Number of Poles: 3P
Tightening Torque: 2.8 N·m
Actuator Type: Toggle
Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking: I / O
Actuator Material: Insulation Group II, Black, Sealable
Recommended Screw Driver: Pozidriv 2
Accessories Available: Yes
Connecting Capacity: Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Installation Size: acc. to DIN 43880 1
Wire Stripping Length: 12.5 mm
Terminal Type: Screw Terminals
Tripping Characteristic: C
Rated Operational Voltage: acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 440 V AC
Operational Voltage: Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp): 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type: AC/DC
Rated Current (In): 25 A
Rated Short-Circuit Capacity: (AC) 6 kA, (DC) 6 kA
Rated Conditional Short-Circuit Current (Inc): (230 V) 20 kA, (400 V) 20 kA
Frequency (f): 50 Hz
Rated Frequency (f): 50 / 60 Hz
Power Loss: 9.6 W, at Rated Operating Conditions per Pole 3.2 W
Overvoltage Category: III
I²t Characteristic: S200_S200M_S200P let-through energy B-C
Housing Material: Insulation Group II, RAL 7035
Maximum Operating Voltage UL/CSA: 110 V DC, 480Y/277 V AC
Interrupting Rating acc. to UL1077: (277 V AC) 6 kA, (480Y / 277 V AC) 6 kA, (240 V) 10 kA
Connecting Capacity UL/CSA: Busbar 18-8 AWG, Conductor 18-4 AWG
Tightening Torque UL/CSA: 18 in·lb
Ambient Air Temperature: Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature: 30 °C
Degree of Protection: IP20, IP40, Enclosure with Cover IP40
Pollution Degree: 3
Environmental Conditions: 28 cycles, with 55 °C / 90-96 % and 25 °C / 95-100 %
Resistance to Vibrations: 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27: 25g 2 shocks 13 ms
