ABB RRIA-01 3ABD68486408 Resolver Interface Module

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

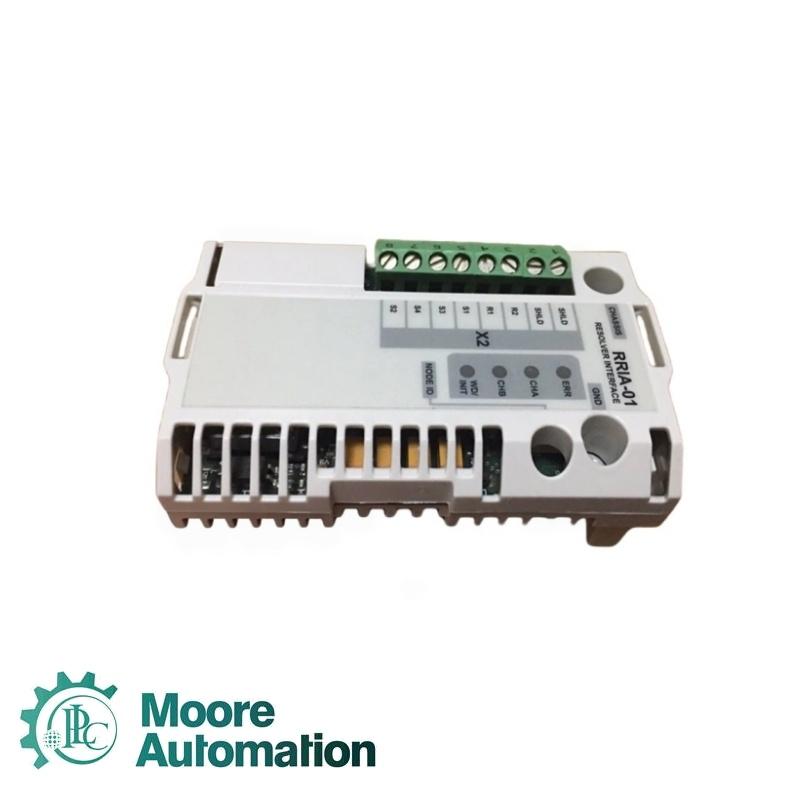

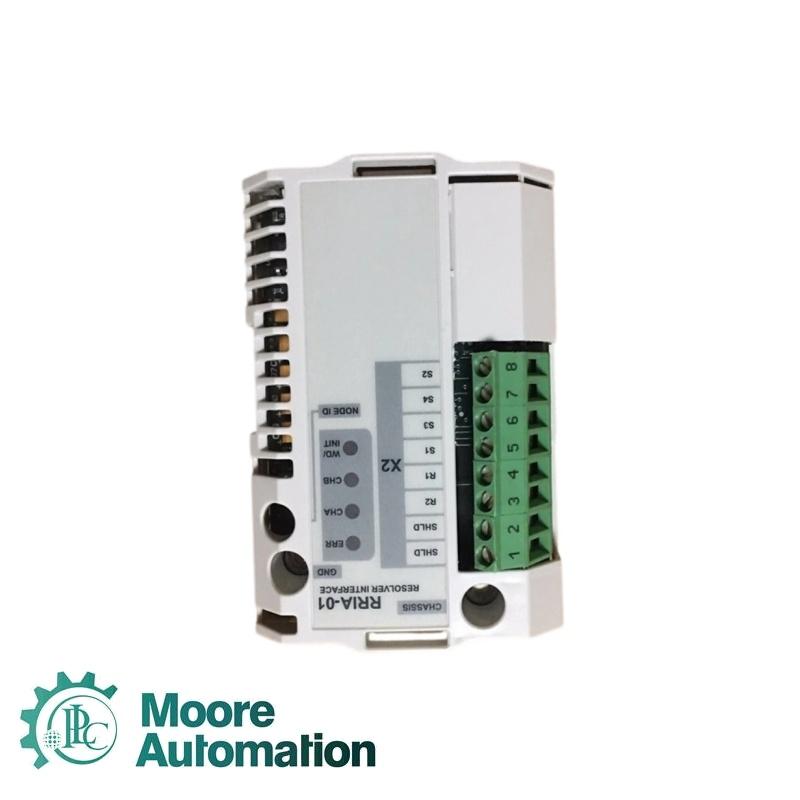

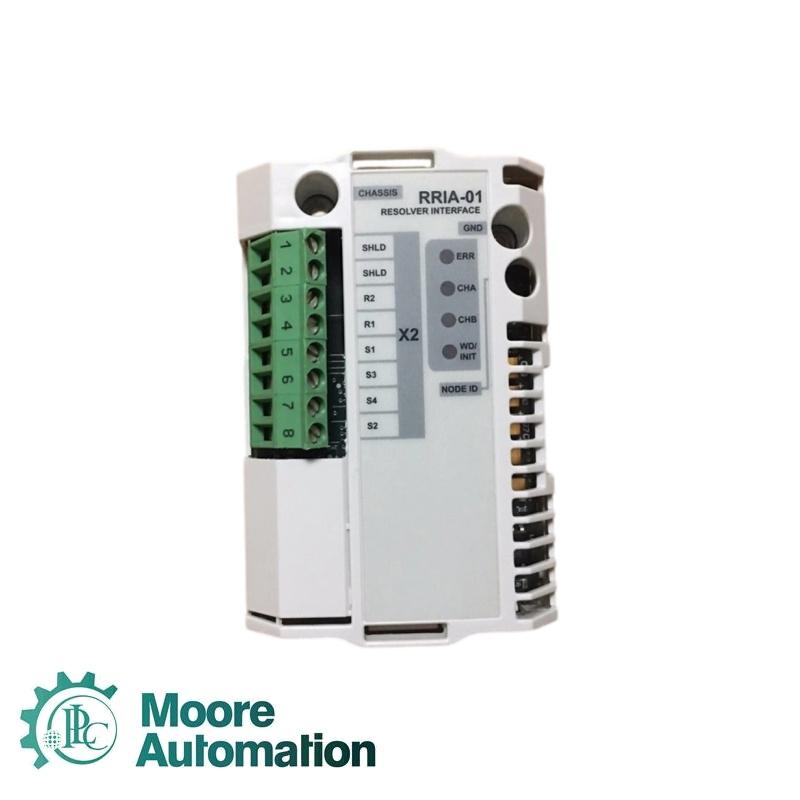

The ABB RRIA-01 3ABD68486408 is a resolver interface module for connecting an analog resolver to compatible ACS800 control applications. It supplies resolver excitation and converts the sine and cosine feedback signals into motor-shaft speed and position-angle information for the drive control system.

Product typeResolver interface module

Drive familyACS800

MountingRMIO option slot or AIMA-01 adapter

RMIO slotSLOT 1 or SLOT 2

Drive connector38-pin parallel bus

Field terminal8-pole non-detachable screw terminal

Max conductor2.5 mm²

Excitation output12 Vpp AC

Excitation frequency10 kHz or 20 kHz

Resolver input8 Vpp AC

Max input frequency20 kHz

Position resolution0.024% (12 bits)

Pole-pair setting1 to 4

Max cable length100 m

Cable conductor0.5 to 1.0 mm²

External node IDs16 to 31

Protection ratingIP20

Power consumption180 mA at 5 V; 80 mA at 24 V

Status LEDsCHA, CHB, WD/INIT and ERR

Isolation test1.5 kV AC for 1 minute

Application Industry

Motor position feedbackInterfaces resolver sine and cosine signals with compatible motion-control applications.

Motor speed feedbackProvides shaft-speed information to the drive control system.

Permanent-magnet motor controlSupports the documented synchronous-machine application programs when their required versions are installed.

External I/O mountingCan be mounted on a DIN rail through the specified I/O module adapter when an internal option slot is not used.

FAQ

Which control applications are compatible with RRIA-01 3ABD68486408?

Use it with the documented motion-control or permanent-magnet synchronous-machine application programs at or above the specified software versions.

Where can RRIA-01 3ABD68486408 be mounted inside the drive?

It can be installed in either of the two documented option slots on the control board, where the parallel connector supplies signals and power.

What resolver cable is recommended for RRIA-01 3ABD68486408?

Use four individually shielded twisted pairs with an overall shield, suitable conductor size and a total length no greater than the documented maximum.

How is the excitation frequency selected on RRIA-01 3ABD68486408?

Select one of the two supported excitation frequencies with the module settings and ensure that it matches the connected resolver.

What do the indicators on RRIA-01 3ABD68486408 show?

The four LEDs provide channel-activity, initialization or watchdog, and error status for commissioning and troubleshooting.
