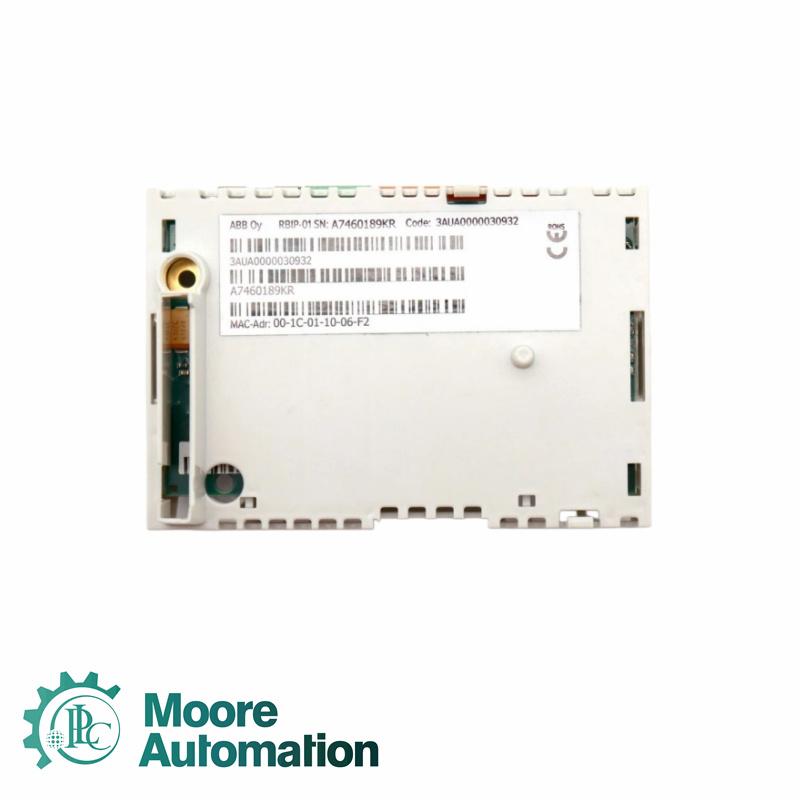

ABB RBIP-01 3AUA0000030932 BACnet/IP Router Module

1

Sale Manager----John Yang

Email: sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

2

The ABB RBIP-01 3AUA0000030932 is a high-performance BACnet router for ABB drives for HVAC, ACH550. The router supports 10/100 MBit/s BACnet/IP and BACnet over Ethernet networks, as well as BACnet MS/TP (EIA-485) network. The RBIP-01 3AUA0000030932 router supports all standardized BACnet MS/TP baud rates up to 115,2k, as well as the master mode functionality. BBMD (BACnet Broadcast Management Device) and FD (Foreign Device) functionalities are also supported. BACnet slave proxy functionality is supported by firmware 2.5. The web server functionality enables access and configuration of the router using a standard web browser. The RBIP-01 3AUA0000030932 snap-on router is fully compatible with ABB drives for HVAC, ACH550, including old, future and regional product revisions. The router fits inside the drive and does not affect the protection class of the drive. The router can be powered from the drive or from an external 24V AC or DC power supply.

Ask John Yang（Email: sales3@askplc.com）for more infor of DSMB-01C 64691929R

3

Mounting: Into the option slot on the control board of the drive.
Degree of protection: IP20
Power supply: 12...26 V DC / AC, 200 mA, internal fuse
Resistors:
Network bias resistors, 560 ohms (DIP switches)
Network termination resistor, 120 ohms (DIP switch)
Ambient temperature range: 0...45 °C, 32…113 °F
Ambient humidity range: 20...80 percent relative humidity, noncondensing

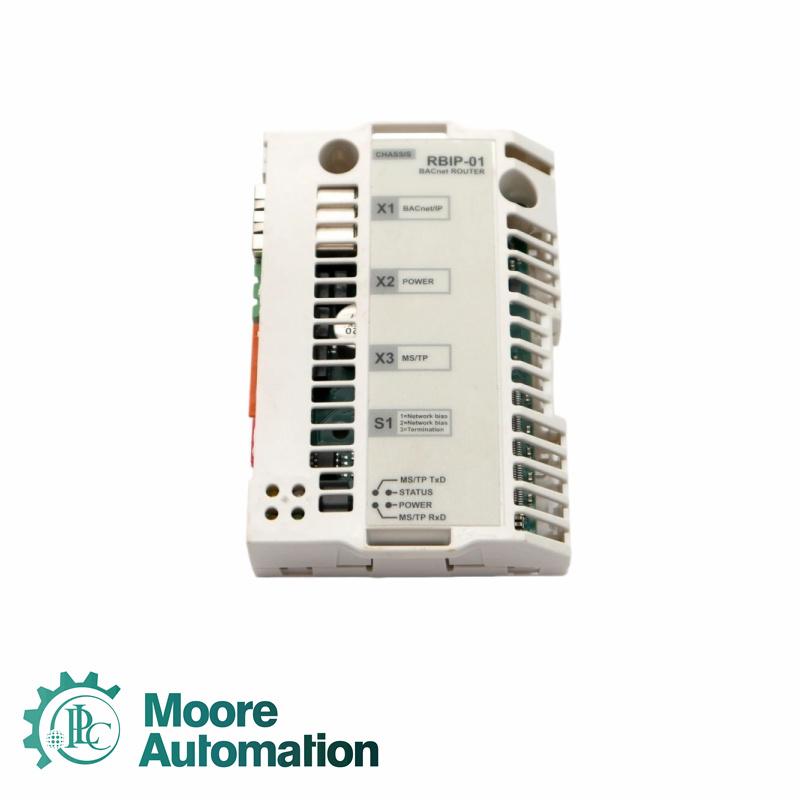

Indicators: Six LEDs (POWER, MS/TP TxD, MS/TP RxD,
STATUS, an orange and a green network LED).

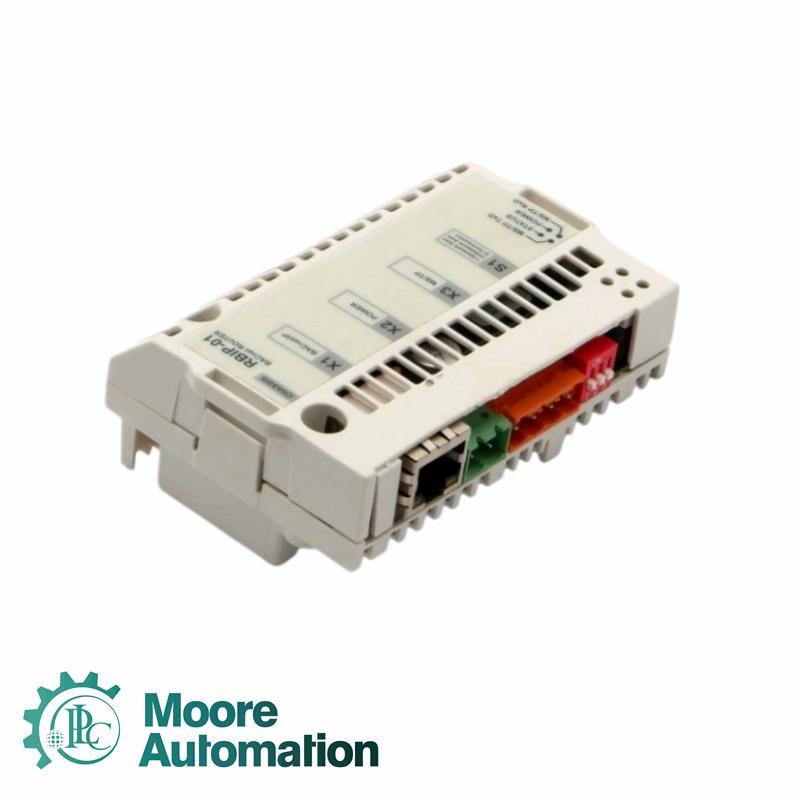

Connectors:
2-pin connector for power supply
4-pin connector for EIA-485
RJ-45 connector
Serial port:
1 × serial port EIA-485 BACnet MS/TP; B (+), A (-), AGND, Shield
Ethernet link:
1 × RJ-45 10/100 Base T Fast Ethernet Port
Termination: Internal
Wiring: CAT 5 UTP, CAT 5 FTP* or CAT 5 STP*
Connector: RJ-45
Maximum segment length: 100 m
Topology: Bus, star
Serial communication type: Half and full Duplex
Transfer rate: 10/100 Mbps

4

Q: What are your packaging conditions of RBIP-01 3AUA0000030932?
A: Generally speaking, we pack the goods in cartons with foam padding to prevent damage to the goods.

Q: What are your payment terms of RBIP-01 3AUA0000030932?
A: 100% T/T before shipment. Western Union, credit cards are also acceptable

Q: What about your delivery time of RBIP-01 3AUA0000030932?
A: Generally 1-3 days after receiving your payment. The specific delivery time depends on the type and quantity of the order.

Q: How long is the warranty period of RBIP-01 3AUA0000030932?
A: We offer a standard one-year warranty for all new and original products.

Q: Do you offer any discounts?
A: Yes! For discounts on RBIP-01 3AUA0000030932, please contact John for the best offer.
