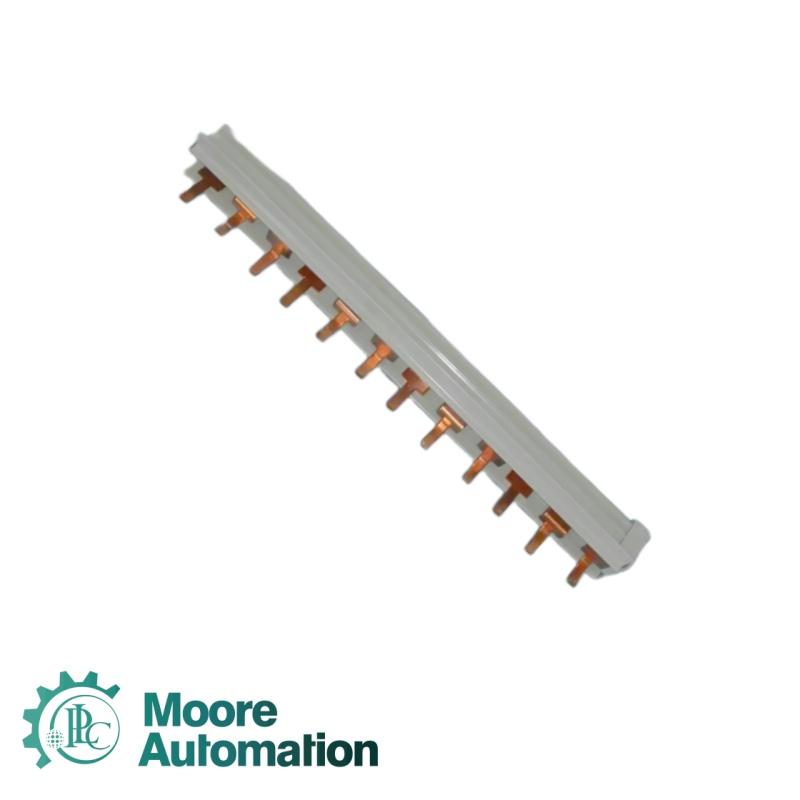

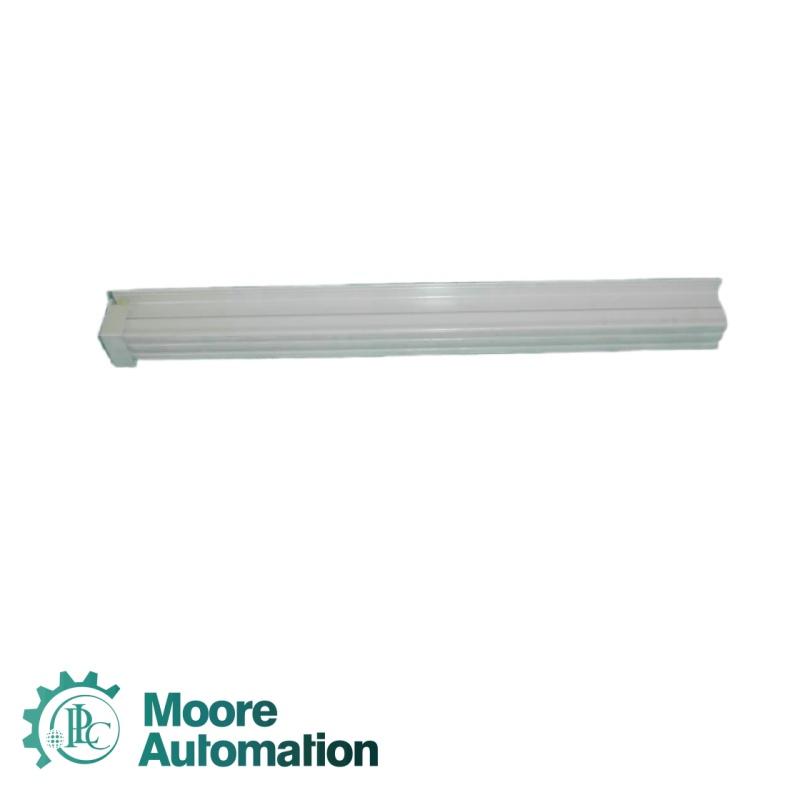

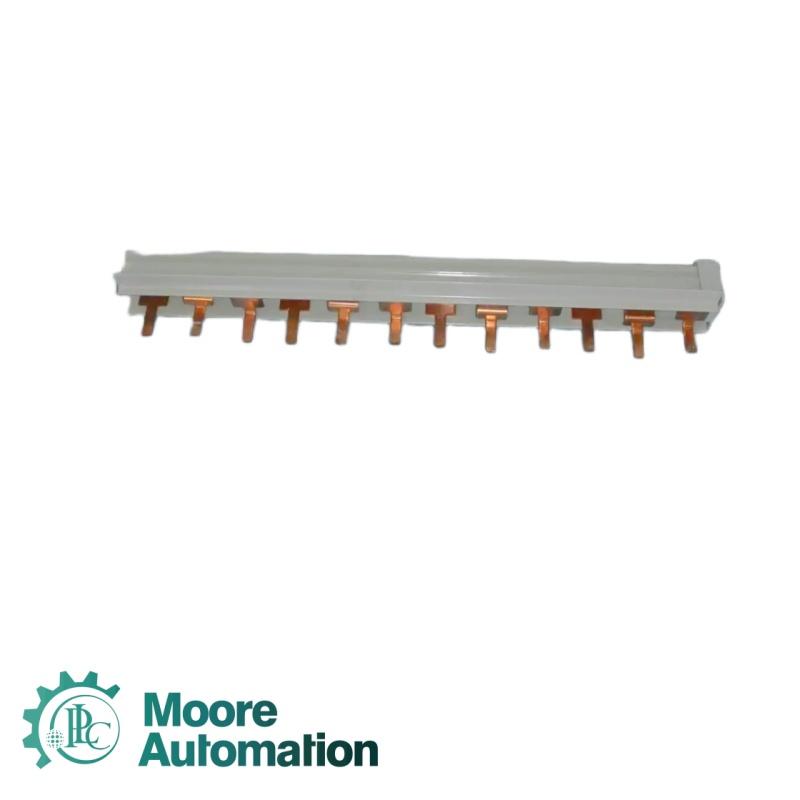

ABB PS3/60 ~230/400V 10mm² Busbar

All our products are fully authentic

Number of Poles: 60 P
Number of Phases: 3-phase
Number of Mountable Devices: 20
Number of Terminals (Nterm): 60
Connection Type: Pin-type connection
Rated Cross‑Section: 10 mm²
Electrical Parameters
Rated Operational Voltage (Ue): 230 / 400 V AC
Maximum Voltage: 690 V (AC)
Rated Uninterrupted Current (Iu): 63 A
Rated Short-Time Withstand Current (Icw): 25 kA
Rated Frequency (f): 50 / 60 Hz
Overvoltage Category: III
Design & Mechanical
Color / Housing: Light grey, RAL 7035
Mounting Position: Any orientation (flexible mounting)
Pollution Degree: 2
Standards Compliance: IEC / EN 60947‑1 (typical for modular busbars)
Material: Conductive part (bus) made of copper or equivalent conductive alloy, insulated housing durable for panel use
Current Carrying Capacity: Designed for continuous 63 A, but verify based on ambient temperature and busbar loading
Short-Circuit Rating: Able to withstand high short-circuit current for a short time (25 kA), suited for robust protection coordination
