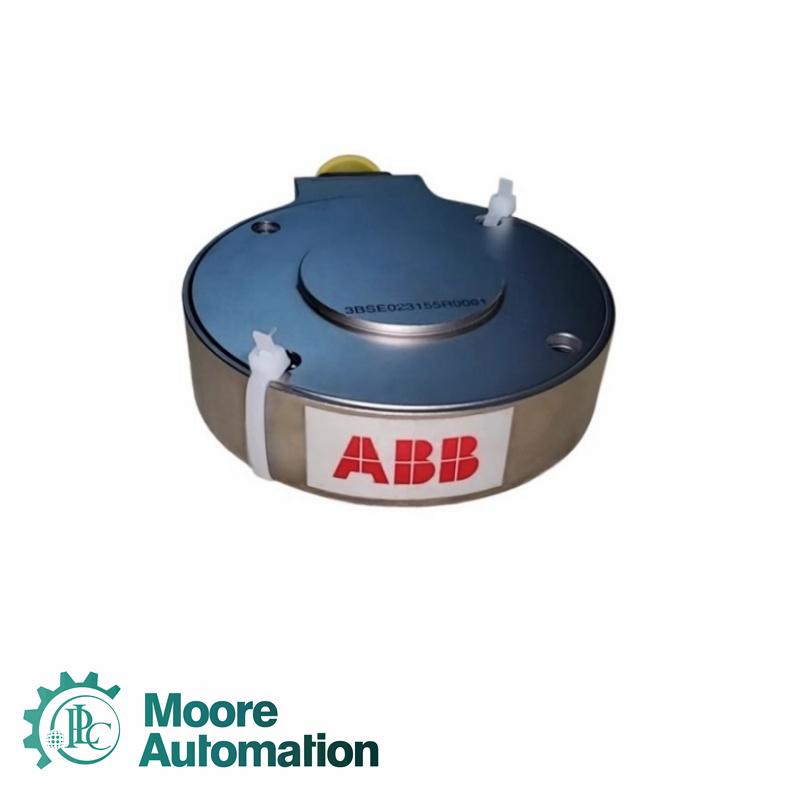

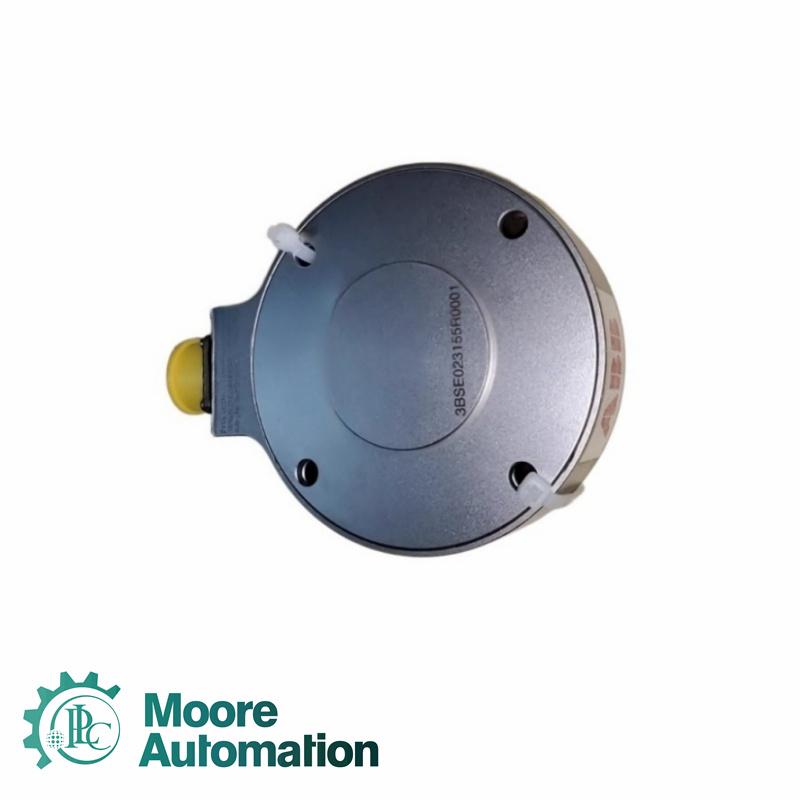

ABB PFRL101B-1.0KN 3BSE023315R0005 Pressductor Radial load cells

ABB’s Pressductor® Radial load cells (PRT load cells) are sensitive and accurate yet rugged, reliable and compact. They can withstand high overloads and vibrations, and operate over a wide range of tensions: ideal for any web converting application such as coating, laminating, printing, slitting, winding/unwinding and many others. The well-proven Pressductor load cells combined with the tension electronics, offer an easy-to-use/user-friendly web tension measurement system with superior long term performance leading to higher productivity and product quality and higher profit for the web producer. Increased process uptime In a web process running continuously, every minute of production time is precious. Even so, no production line runs without downtime. With Pressductor Radial load cells the risk of web breaks can be reduced to a minimum, thus leaving as much time as possible for real production. Thanks to a strong and stable signal deriving from the PRT load cells, the upcoming web breaks are kept to an absolute minimum level. Tighter product tolerances The ability to produce web to tighter tolerances minimizes the costs associated with nonconforming web. It also increases the web producer’s accessible market to include products with tighter tolerance requirements.

Nominal Load (Rated Capacity): 1.0 kN / 225 Lbs
Extended Load: 1.5 kN / 337 Lbs
Overload (Measurement Direction): 5.0 kN / 1125 Lbs
Overload (Transverse to Measurement Direction): 3.0 kN / 675 Lbs
Overload (Axial): 5.0 kN / 1125 Lbs
Spring Constant: 100 kN/mm / 572 1000 Lbs./inch
Deflection: 0.01 mm / 0.4 1/1000 inch
IP20 Voltage: 24 V DC (18 to 36 V)
Power Requirement (IP20): 7.5 W / 12 W
IP65 Main Voltage: 24 V DC (18 to 36 V), 100 (–15 %) to 240 (+10 %) V AC
Frequency: 45 to 65 Hz
Number of Load Cells: 2 / 4
Load Cell Excitation Current: 0.5 A RMS, 330 Hz
Max Load (2 Load Cells): 2 load cells plus 5 Ω cable resistance
Max Load (4 Load Cells): 4 load cells plus 10 Ω cable resistance
Selectable Filter: Step response (0 to 90 %) can be set for each output 15, 30, 75, 250, 750, 1500 ms / 5, 15, 30, 75, 250, 750, 1500 ms
Scaling Function of Analog Outputs: Yes

Interactive menu
The tension electronics has a unique interactive menu which guides the commissioning step by step, eliminating the potential for making mistakes and significantly reducing startup time – a very helpful tool.

Built-in self diagnostics
The electronics continuously supervise a number of important parameters and provides error messages if something goes wrong.

Multi-language display
The multi-language display is a great feature that helps to eliminate mistakes, during start-up and/or operation of the tension system.

Load memory
The resettable load memory stores max. load values. A useful tool for maintenance.

Analog outputs
The PFEA provide a scaled and zeroed tension output ready for use in control or monitoring. Individual scaling and filtering can be done for each of the analog outputs.

PROFIBUS-DP, PROFINET and EtherNet/IP
PFEA112 and PFEA113 have Fieldbus communication via PROFIBUS DP as standard. PFEA122 comes with PROFINET RT and EtherNet/IP communication. Regardless of the communication protocol used, measurement values and status information will be available.

What is the ABB PFRL101B-1.0KN 3BSE023315R0005?
It is a Pressductor Radial load cells.


Is this product brand new?
Yes, PFRL101B-1.0KN 3BSE023315R0005 is brand new, original, unused, and factory sealed


Do you have it in stock?
Yes, right now we have PFRL101B-1.0KN 3BSE023315R0005 in stock ready for shipment, we can support video inspection.
