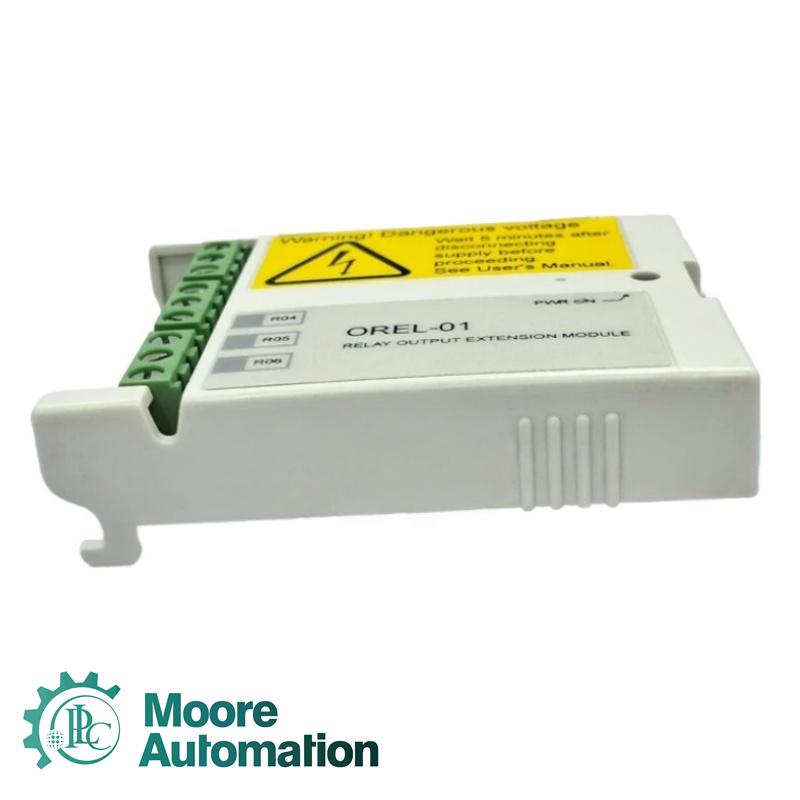

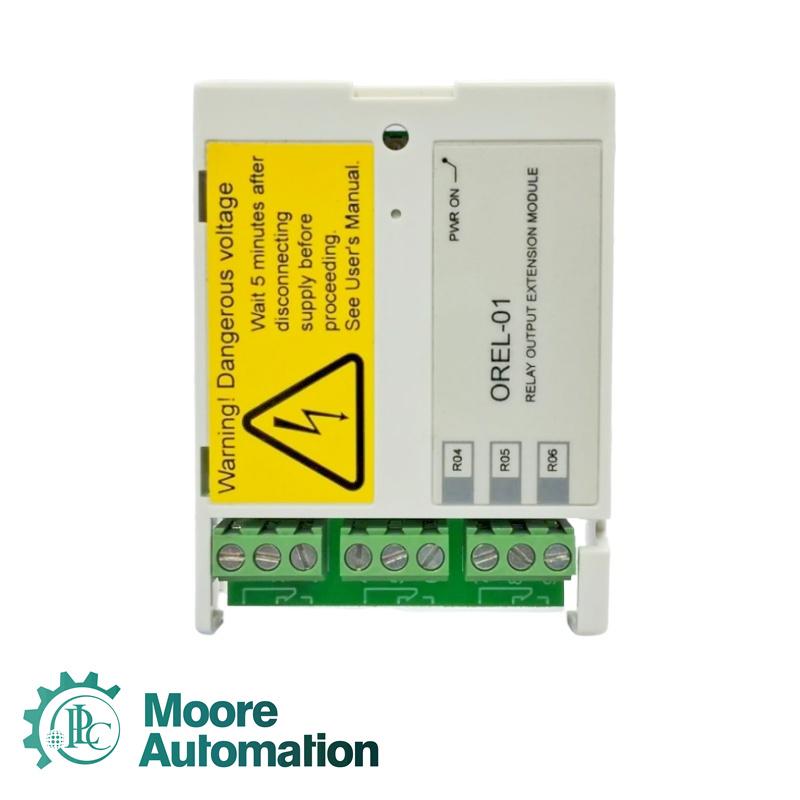

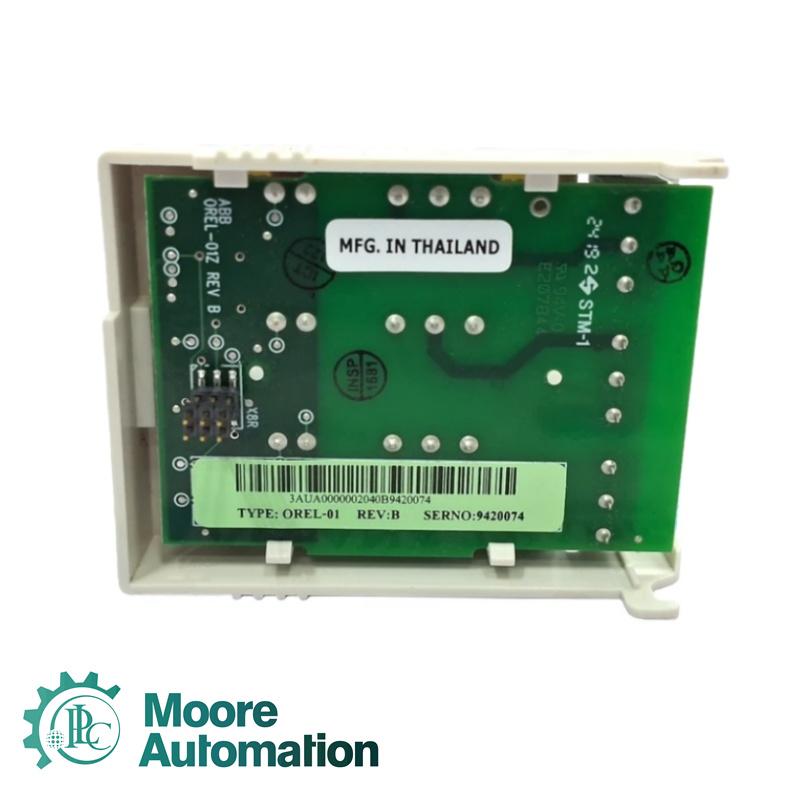

ABB OREL-01 Relay Output Extension Module

Product Info

Max. Contact Voltage: 30 V DC, 250 V AC
Max. Switching Capability: 6 A (24 V DC, resistive load) / 1500 VA (250 V AC)
Max. Continuous Current: 2 A rms (cos ϕ = 1) / 1 A rms (cos ϕ = 0.4)
Minimum Current: 10 mA, 12 V DC
Contact Material: Silver-Nickel (AgN)
Isolation Between Relay Digital Outputs (Test Voltage): 2.5 kV rms, 1 minute
Estimated Minimum Lifetime: >200,000 cycles per relay at maximum continuous current operation
Material Approvals: All materials are UL/CSA-approved
Enclosure Degree of Protection: Module mounted inside the drive enclosure (refer to drive rating)
Ambient Conditions: Module mounted inside the drive enclosure (refer to drive requirements)
Connectors on the Module: 6-pin connector
Terminal Blocks: Three 3-pin, screw-type, non-detachable terminal blocks
Wire Capacity: Accepts wire connectors up to 1.5 mm² (16 AWG)
The Relay Output Extension module (OREL) is an interface for connecting three relay outputs to an ACS550 or ACH550 drive. The OREL-01 is compatible with all ACS550 and ACH550 drives. With a minimum lifetime of over 200,000 cycles, UL/CSA-approved materials, and support for wire sizes up to 1.5 mm², the module ensures safe, durable, and precise operation.
