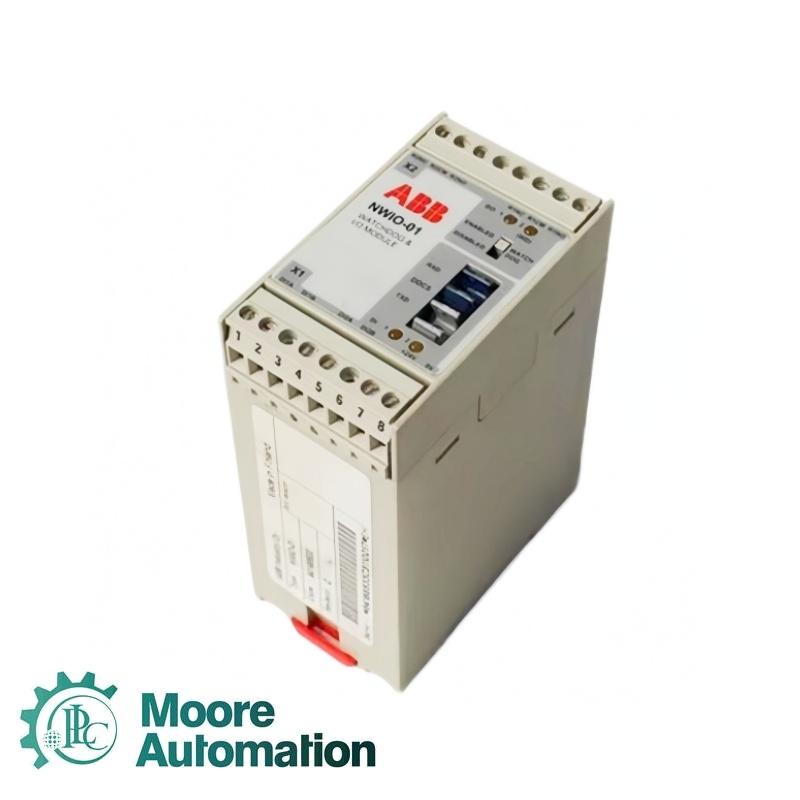

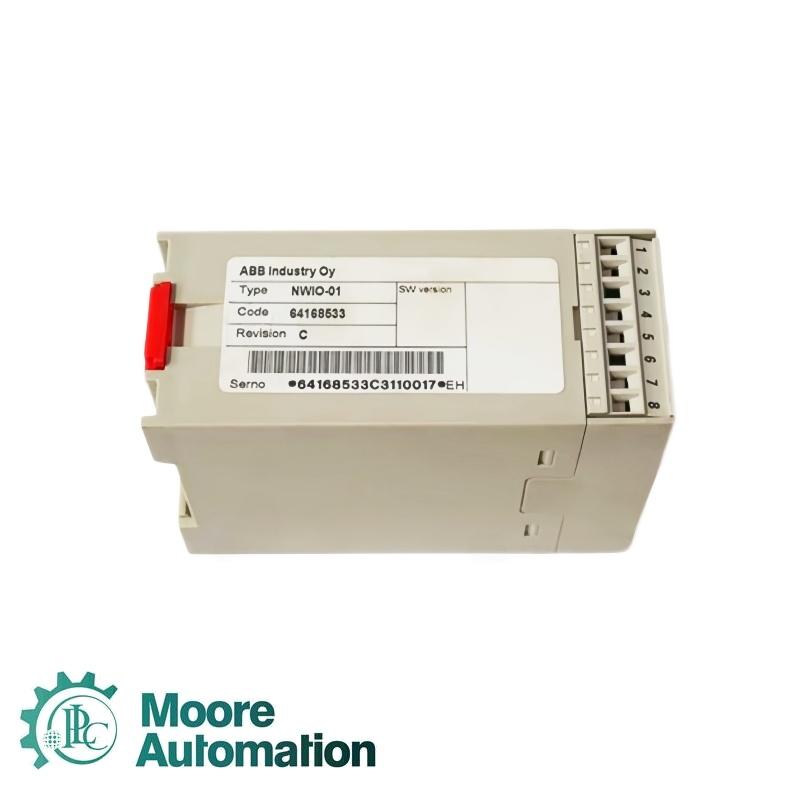

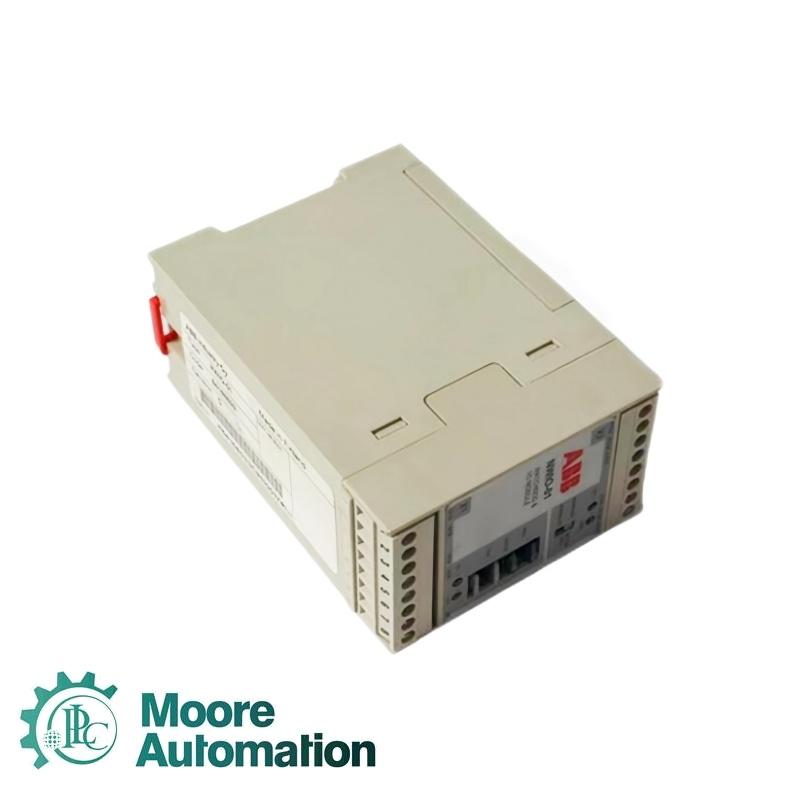

ABB NWIO-01 64168533 Watchdog and I/O Module

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
3-5 Days
Mode of transport:
HS CODE:
Warranty:
1 Year
Product Origin:
Lead Time:
Service:

Product Detail

Specifications

ABB NWIO-01 64168533 is a watchdog and digital I/O option unit for ABB DriveBus configurations. It provides two individually isolated digital inputs, two relay outputs and selectable watchdog timing used to supervise AC 800M and CI858 operation and optical I/O-ring communication.

Product type

Watchdog and I/O module

ABB type designation

NWIO-01

Article number

64168533

Unit category

Digital I/O option unit

Digital inputs

Input voltages

24 V DC or 115/230 V AC

Input isolation

Individually isolated

Input filter times

1 ms or 8 ms, selectable

Relay outputs

Relay capacity at 24 V DC

8 A, resistive load

Relay capacity at 120 V DC

0.4 A, resistive load

Relay capacity at 250 V AC

2000 VA

Maximum continuous output current

2 A

Watchdog timers

Watchdog time constants

0.2 s or 1 s

Default watchdog setting

1 s

Watchdog-linked output

DO2

Link protocol

DDCS

Link medium

Fibre-optic ring

Link speed

4 Mbit/s

I/O devices per ring

Up to 8

Function blocks

NWIO1DI and NWIO1DO

Application Industry

Drive-system process controlConnects watchdog and I/O functions within DriveBus-controlled drive installations.

Controller supervisionMonitors CI858 application, operating-system and dual-port-memory communication.

Optical I/O ring supervisionChecks communication on the DDCS optical I/O ring.

Defined watchdog outputCan command DO2 through watchdog logic when supervision conditions require a defined output state.

FAQ

Which controller interface is ABB NWIO-01 64168533 used with?

The unit is documented as a digital I/O option on AC 800M DriveBus configurations using CI858 communication.

What digital input voltages does ABB NWIO-01 64168533 accept?

The two individually isolated inputs support 24 V DC or 115/230 V AC, with selectable 1 ms or 8 ms filtering.

How should the watchdog timing be set on ABB NWIO-01 64168533?

Use the documented switch positions for 0.2 s or 1 s; the 1 s position is the default.

Which relay output is controlled by the watchdog on ABB NWIO-01 64168533?

The watchdog logic can be enabled to control DO2; confirm the slide-switch position before commissioning.

What should be checked before installing ABB NWIO-01 64168533?

Verify DriveBus and CI858 configuration, optical-ring continuity, input voltage selection, input filtering and relay-load ratings.
