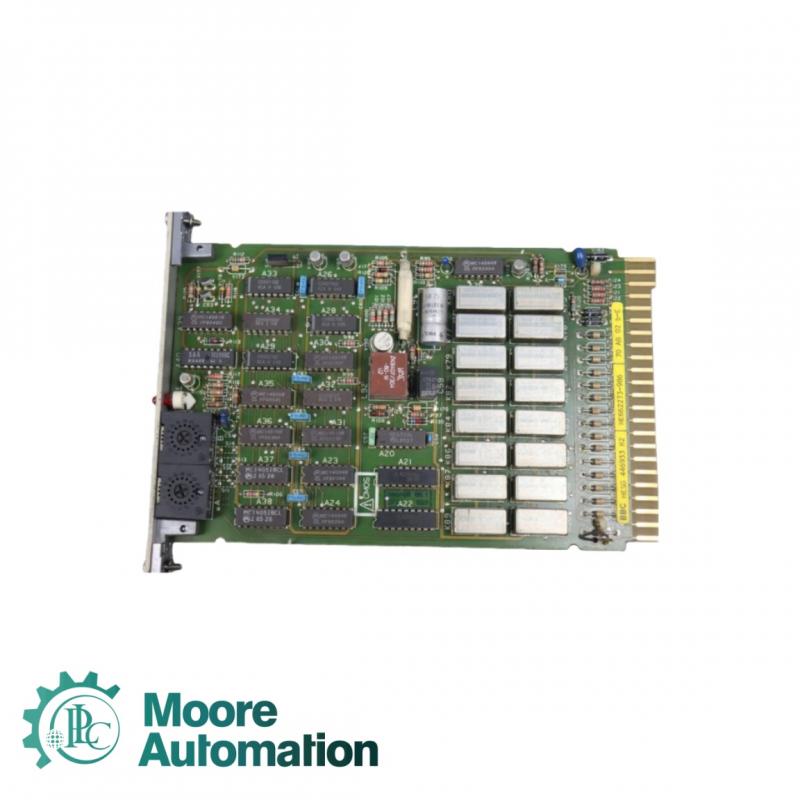

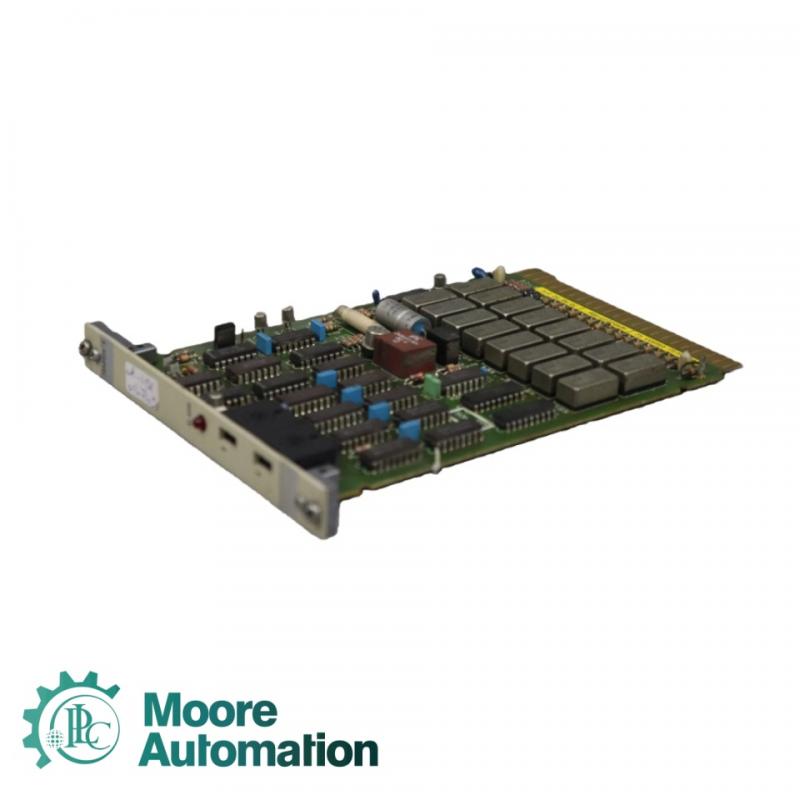

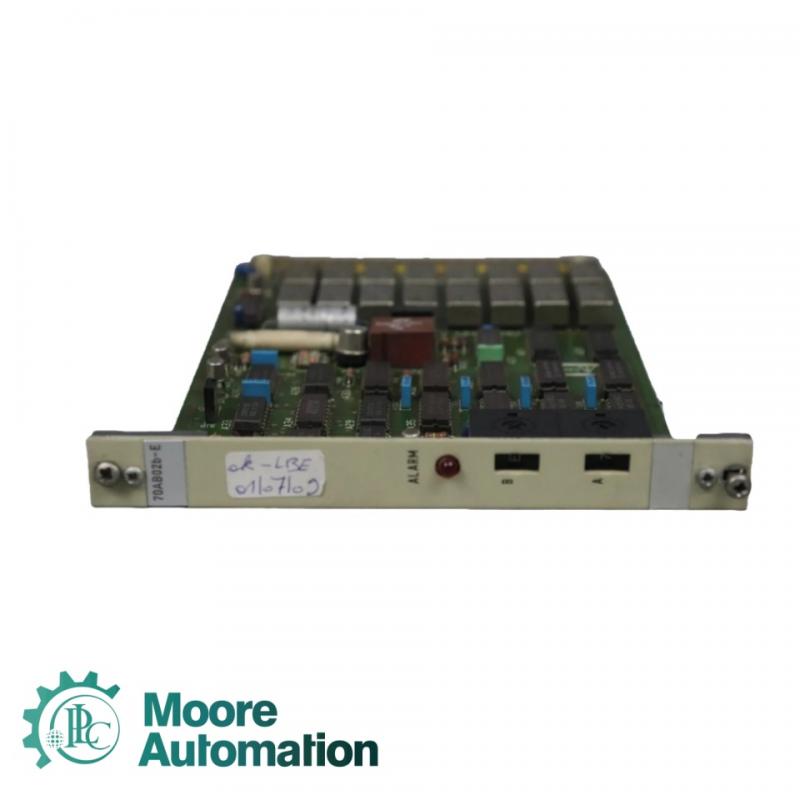

ABB HESG446933R2   70AB02B-E  Contact card

Product Details

Product Performance

Input voltage: +24 V DC nominal
Operating voltage range: 18 – 30 V DC
Current consumption: 150 – 200 mA @ 24 V DC
Power consumption: Approx. 4 W
Contact type: SPDT relay outputs / dry contact
Contact rating: 2 A @ 30 V DC / 250 V AC max
Number of relay channels: 8 channels (configurable)
Digital input voltage: 24 V DC (sink/source)
Input impedance: 4.7 kΩ typical per input channel
Output isolation: Optically isolated channels for electrical separation
Response time: < 5 ms per channel
Switching frequency: Up to 10 Hz continuous operation
Operating temperature: –10 °C to +60 °C
Storage temperature: –25 °C to +85 °C
Humidity tolerance: 5 – 95 % RH (non-condensing)
Insulation resistance: ≥ 100 MΩ @ 500 V DC between isolated circuits
Dielectric strength: 1,500 V AC, 1 minute between isolated circuits
