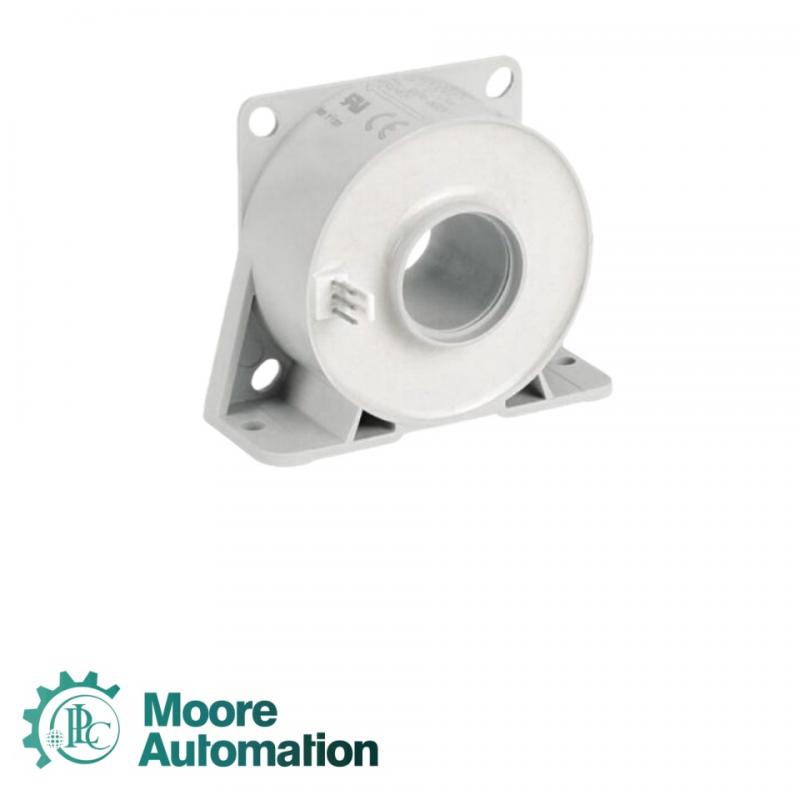

ABB ES300F Industry Current Sensors

ABB ES300F Industry Current Sensors

Brand:
ABB
Order(MOQ):
1
Payment:
T/T
Product Origin:
Switzerland
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

❖Please consult with John Yang

Email: sales3@askplc.com

Mobile(Whats App): 86-18150117685

❖About the Product

The ABB ES300F is a high-precision industrial current sensor designed for accurate and reliable AC and DC current measurement in demanding industrial applications. Utilizing advanced closed-loop Hall effect technology, it provides excellent linearity, fast response, and minimal thermal drift, ensuring stable performance across a wide range of operating conditions.

❖Product Data

Nominal primary current (rms): 300 A
Secondary current at IPN: 150 mA
Supply voltage (DC): ±12 to ±24 V
Product type: Current sensor
Mounting type: Frame mounting
Measuring range at ±15 V (peak): ±500 A
Measuring range at ±24 V (peak): ±500 A
Not measurable overload (peak): 3000 A
Maximum measuring resistance at ±15 V: 20 Ω
Maximum measuring resistance at ±24 V: 54 Ω
Minimum measuring resistance at ±15 V: 0 Ω
Minimum measuring resistance at ±24 V: 45 Ω
Turn number: 2000
Accuracy at IPN: ±0.5 %
Accuracy at IPN (-5 to 70 °C): ±1 %
Accuracy at IPN (-20 to 70 °C): ±1.5 %
Offset current: ±0.25 mA
Linearity: 0.1 %
Thermal drift coefficient (-5 to 70 °C): 15 µA/°C
Thermal drift coefficient (-20 to 70 °C): 40 µA/°C
Delay time: 1 µs
di/dt correctly : 50 A/µs
Bandwidth: 100 kHz
Maximum no-load consumption current: 12 mA
Secondary resistance: 33 Ω
Dielectric strength (primary/secondary): 3 kV
Voltage drop: 1 V
Mass: 0.115 kg
Operating temperature: -20 to +70 °C
Storage temperature: -25 to +85 °C

❖FAQ

Q1: What is the nominal primary current supported by the ABB ES300F current sensor?
A1: The nominal primary current (rms) is 300 A, which defines its standard measurement capability in industrial systems.

Q2: What is the secondary output current at rated primary current (IPN)?
A2: The secondary current is 150 mA when the primary current is at its nominal value.

Q3: What supply voltage is required for the ES300F sensor?
A3: The device operates with a DC supply voltage range from ±12 V to ±24 V, providing flexibility for various system designs.

Q4: What is the maximum measurable current range of the ES300F?
A4: The sensor can measure up to ±500 A (peak) at both ±15 V and ±24 V supply levels.
