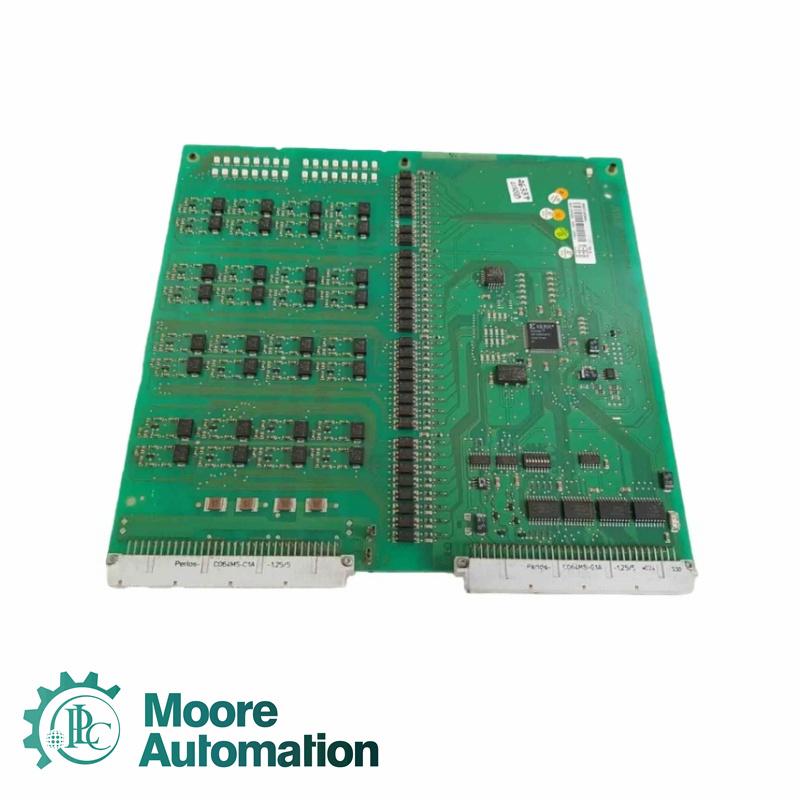

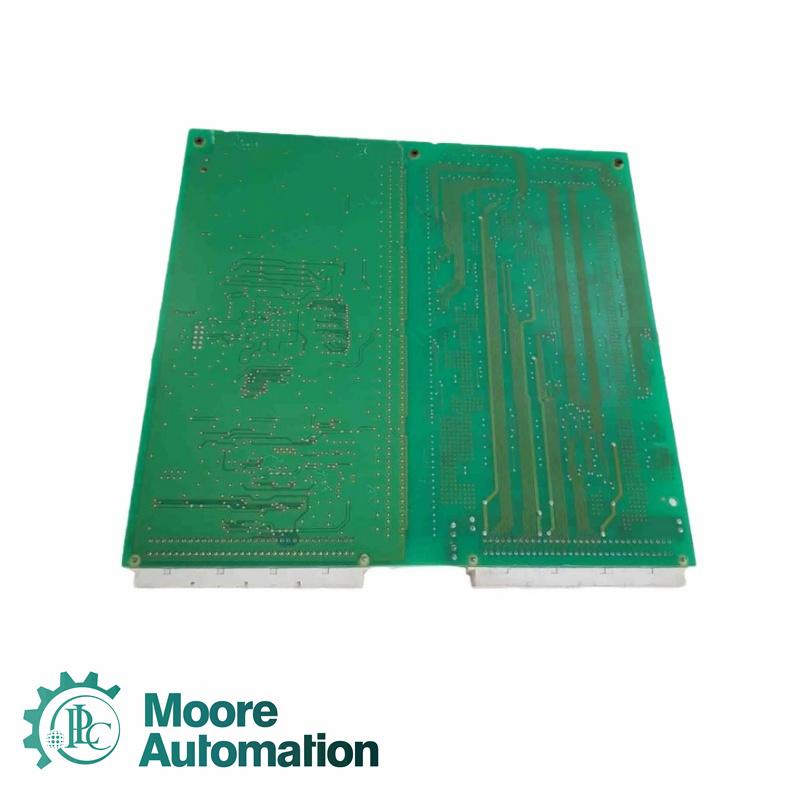

ABB DSDI120AV1 3BSE018296R1 Digital Input Board

For more information about DSDI120AV1 3BSE018296R1

Sale Manager

Email

Mobile(WhatsApp)

John Yang

sales3@askplc.com

86-18150117685

Full Details of DSDI120AV1 3BSE018296R1

Origin:Sweden

Delivery time: 1-3 days

Brand name:ABB

Payment method: T/T

Model: DSDI120AV1 3BSE018296R1

Quality: 100% original new

Warranty period: 1 year

Transportation period: DHL FEDEX EMS UPS TNT

Main Parametersof DSDI120AV1 3BSE018296R1

Dimensions: 26.5x1x35cm
Weight:0.328 kg
Cooling System:Passive
Protection Level:Conformal Coating on PCB
Connectivity Type:Terminal Block Connectors
Rated Current:Typically 2 mA per Channel
Protection Class:Class B
Operating Voltage:24 VDC
Rated Operation Voltage:24 VDC
Components:SMD Resistors, Diodes, Optocouplers
Control System:Distributed Control System (DCS)
Panel Type:Plug-in Board
Features:16 Channel Input, LED Status Indicators, Robust Signal Isolation
Rated Insulation Voltage:50 V
Way:16 Channel Digital Input
Cover Material:None (Open PCB)
Thickness:1.6 mm
Current Rating:2 mA per Channel
Base Material:FR4 Epoxy Glass
Product Type:DIGITAL INPUT BOARD
Material:High-grade Printed Circuit Board (PCB)
Surface Finish:Lead-free Soldering
Standard:ABB Internal Standard
Surface Color:Green with White Silkscreen Markings
Rated Voltage:24 VDC
Frequency (MHz):DC - Not Applicable
Maximum Output Current:Not Applicable (Input Board)
Dimension (LWH):120 mm x 65 mm x 18 mm
Application:Industrial Automation and Control
IP Rating:IP20

Product Outlineof DSDI120AV1 3BSE018296R1

Select the ABB DSDI120AV1 3BSE018296R1 DIGITAL INPUT BOARD for your industrial automation and control needs and capitalise on its superior performance. This potent input board, designed for rack or panel mount slots, operates reliably within a breathtaking temperature range of 0C to +50C. Benefit from advanced features like channel-wise LED indicators, robust 2500 Vrms optical signal isolation, and high-grade PCB construction. Its conformal-coated FR4 epoxy glass base ensures lasting protection and its plug-in configuration provides effortless connectivity. Sale opportunities available for bulk requirementscontact your trusted supplier and trader in India to secure this advanced control system component.

Ideal Application and Special Features:
The ABB DSDI120AV1 3BSE018296R1 DIGITAL INPUT BOARD is perfectly suited for a variety of industrial automation control systems, particularly those utilising Distributed Control Systems (DCS). Its green PCB surface with white silkscreen markings and robust conformal coating guarantee optimal durability and operation. Notable features include 16 isolated digital input channels, channel-specific LED status indicators, reliable optical isolation, and easy panel or rack mounting. This board excels in non-condensing environments and supports seamless integration in sophisticated control architectures.

FAQ of DSDI120AV1 3BSE018296R1

Q: How is the ABB DSDI120AV1 3BSE018296R1 DIGITAL INPUT BOARD mounted in control systems?
A: You can select rack mount or panel mount slots for the ABB DSDI120AV1 3BSE018296R1, facilitating convenient installation in various Distributed Control System (DCS) configurations.

Q: What are the primary benefits of using the ABB DSDI120AV1 3BSE018296R1 in automation projects?
A: This board features superior optical signal isolation (2500 Vrms), a potent conformal coating for protection, and 16 channel-wise status LEDseach attribute ensuring enhanced performance, reliability, and real-time monitoring in your industrial setup.

Q: When should the ABB DSDI120AV1 3BSE018296R1 be considered for replacement or upgrade?
A: Consider upgrading or replacing input boards if you experience increased response times, faulty signal processing, or lack modern features such as LED status indicators and robust insulation, as provided by the DSDI120AV1 3BSE018296R1.

Q: Where can the DSDI120AV1 3BSE018296R1 board be effectively used?
A: The DSDI120AV1 3BSE018296R1 is highly effective in industrial automation and control systems such as power plants, manufacturing units, and process industries, integrating directly with ABB Symphony Plus Series DCS setups.

Q: How does the conformal coating enhance the durability of the DSDI120AV1 3BSE018296R1 board?
A: The conformal coating protects the board from humidity, dust, and corrosive contaminants, ensuring a longer operational life and superior performance in challenging industrial environments.

Control Systems (DCS, PLC/SPS, CNC)

- Panel Controllers

- HMI and Display Panels

- Industrial PC’s

- Drives ( Frequency Inverter and Servo)

- Motors

Packing & Delivery

100% full New! - Original Factory Seal !

Warranty: 12 months!

Package: Original packing with cartons.

Delivery time: Shipped in 3 days after payment
