ABB DI801 DI801-eA 3BSE020508R2 digital input module

Product Specifications

Product Name:DI801 DI801-eA 3BSE020508R2

Brand Name:ABB

Product Origin:Switzerland

Order(MOQ):1

Payment: T/T

Shipping Port: Xia men

Lead Time：in stock

Delivery time: 1-3 days

John Yang:At Your Service

Product Information

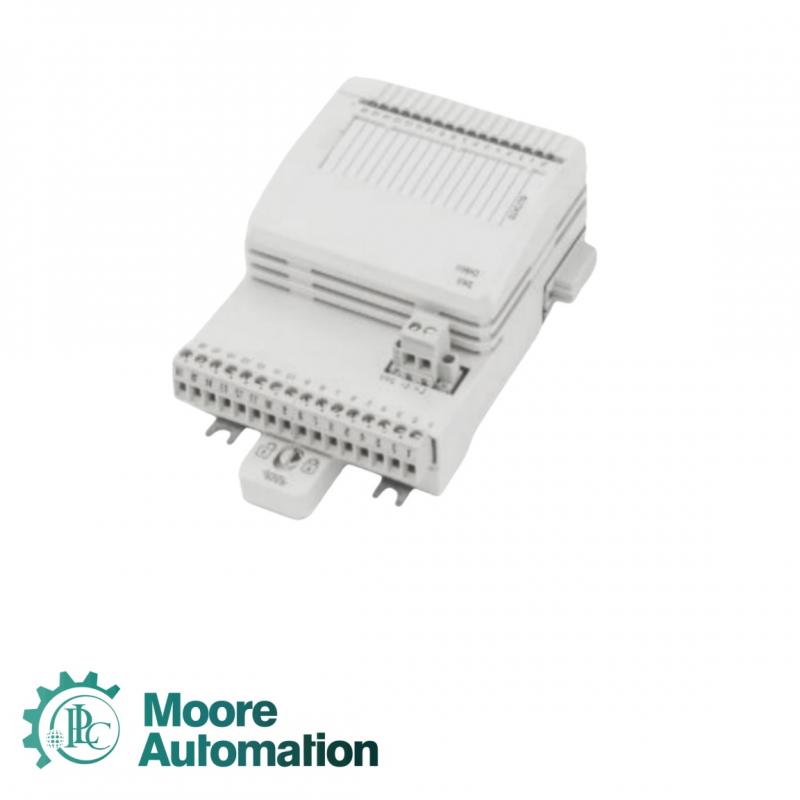

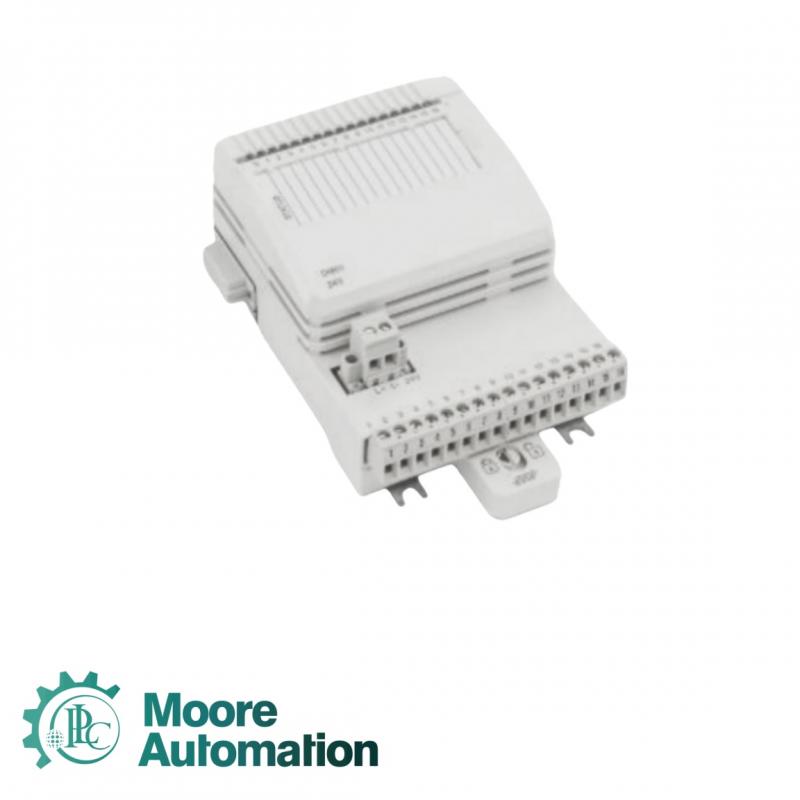

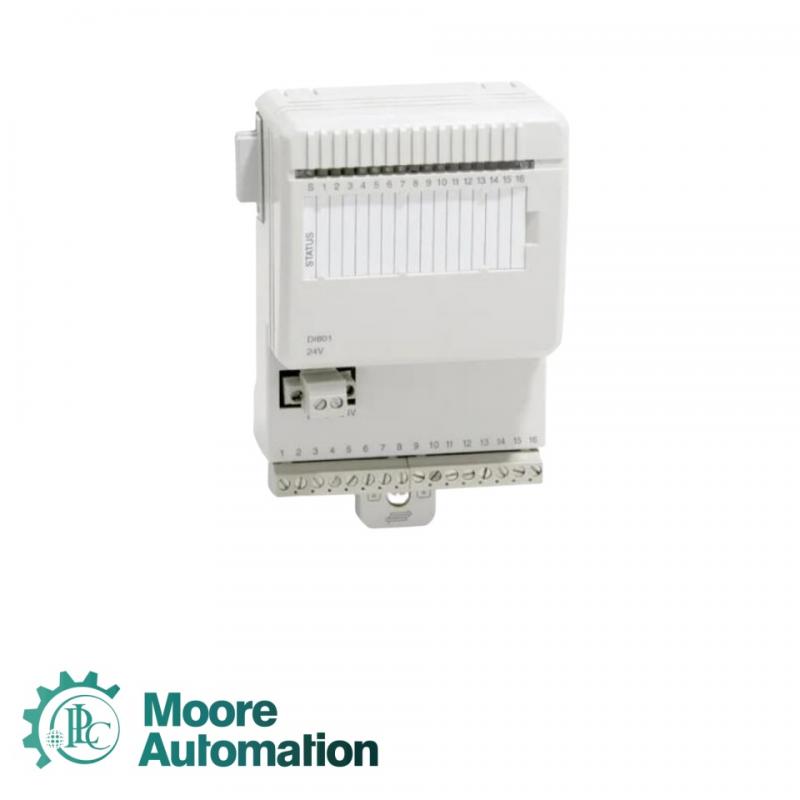

The DI801 is a 16 channel 24 V digital input module for the S800 I/O. This module has 16 digital inputs. The input voltage range is 18 to 30 volt d.c. and the input current is 6 mA at 24 V. The inputs are in one isolated group with sixteen channels and channel number sixteen can be used for voltage supervision input in the group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier.

Parameter Information

Number of input channels: 16 channels
Input voltage range ("0" state): -30 to+5 V DC
Input voltage range ("1" state): 15-30 V DC
Input impedance: 3.5 k Ω
Isolation method: Group isolation
Filter time (optional): 2, 4, 8, 16 ms
Maximum on-site cable length: 600 m (656 yards)
Rated insulation voltage: 50 V
Dielectric test voltage: 500 V
Power consumption: Typical 2.2 W
Module bus current (+5V): 70 mA
Module bus current (+24V): 0 mA
Supporting wire specifications:
Solid wire: 0.05-2.5 mm ² (30-12 AWG)
Stranded wire: 0.05-1.5 mm ² (30-12 AWG)
Recommended torque: 0.5-0.6 Nm
Stripping length: 6-7.5 mm
Working temperature: 0~+55 ° C (certification range+5~+55 ° C)
Storage temperature: -40 to+70 ° C
Pollution level: IEC 60664-1 Grade 2
Anti corrosion grade: ISA-S71.04 G3
Relative humidity: 5-95% (no condensation)
Maximum ambient temperature: 55 ° C (40 ° C when installed vertically)
Protection level: IP20 (compliant with IEC 60529)
Mechanical standard: IEC/EN 61131-2
EMC standards: EN 61000-6-4 and EN 61000-6-2
Overvoltage category: IEC/EN 60664-1, EN 50178
Equipment Class: IEC 61140 Class I (Grounding Protection)
RoHS compliance: Directive 2011/65/EN (EN 50581:2012)
WEEE compliance: Directive 2012/19/EU
Dimensions (width x depth x height): 86.1 x 58.5 x 110 mm
Weight: 0.24 kg

FAQ

Packaging & Shipping

▶ We will ship the items within 3 working days after the payment is reached.

▶ All the goods will be tested before shipment.

▶Packing in professional anti-static bag.
