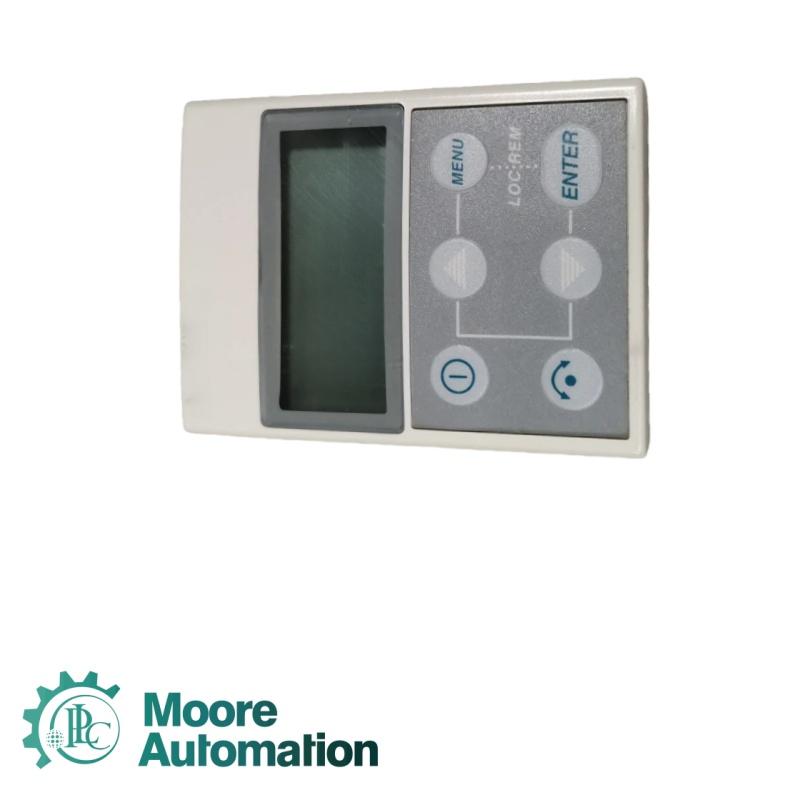

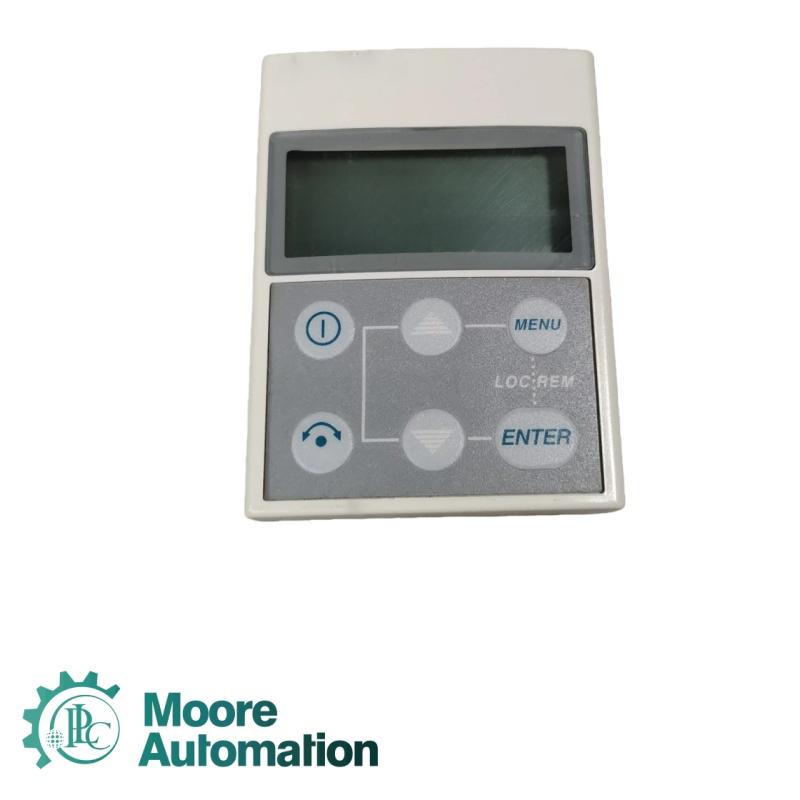

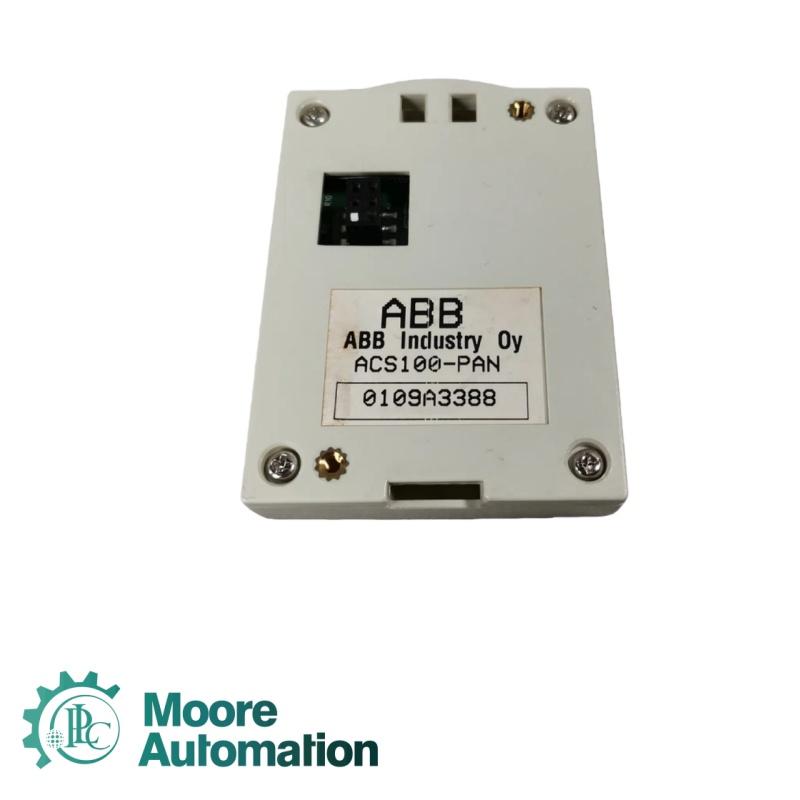

ABB ACS100-PAN operation panel

Product Name: ACS100-PAN

Brand Name:ABB

Product Origin:Switzerland

Payment: T/T

Shipping Port: Xia men

Delivery time: 1-3 days

✅ Email: sales3@askplc.com

✅ Mobile(Whats App): 86-18150117685

Display Type: 4-digit 7-segment LED display
Display Color: Red (segment color)
Operation Buttons: 6 function keys (Run/Stop, Forward/Reverse, Reset, Mode, Up, Down)
Connection Interface: 8-pin plug-in terminal
Supply Voltage: DC 24 V ±10%
Power Consumption: ≤ 2 W
Operating Temperature Range: 0 ... +50 °C
Storage Temperature Range: -20 ... +60 °C
Humidity Resistance: 5 ... 95 % RH (non-condensing)
Protection Class: IP40 (front panel)
Product Dimensions (W×H×D): 72 mm × 44 mm × 25 mm
Net Weight: Approximately 0.05 kg
Mounting Type: Panel Mount (cutout size: 68 mm × 40 mm)
Compatible Inverter Series: ABB ACS100 series
Functionality: Frequency setting, running status monitoring, fault reset, direction control
LED Status Indicators: 2 indicator lights (Power, Fault)
Operating Altitude: Up to 2000 m (no derating)
Compliance Standards: IEC 61010-1, EN 61010-1
