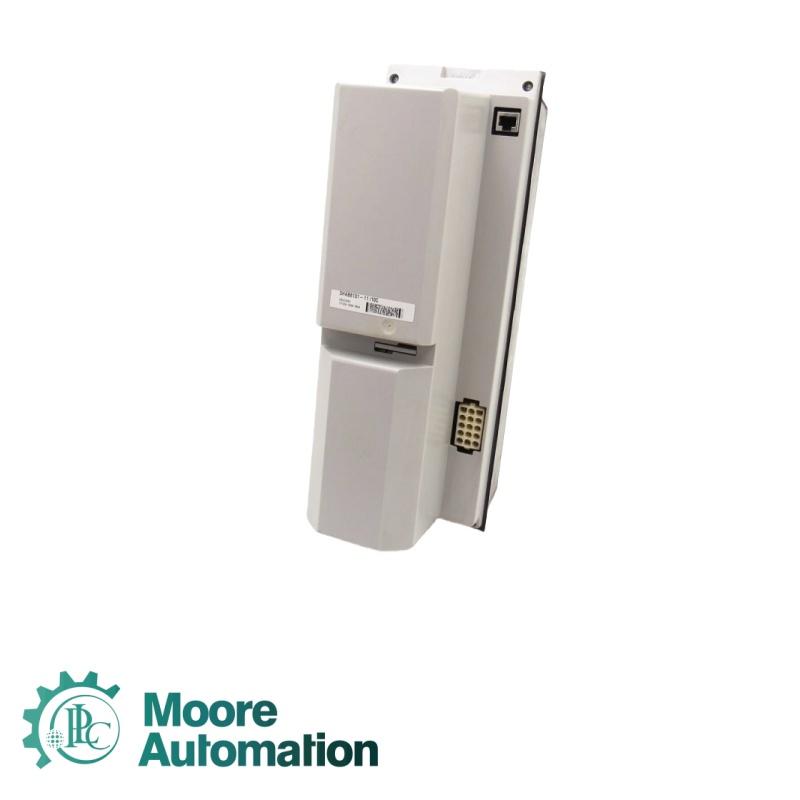

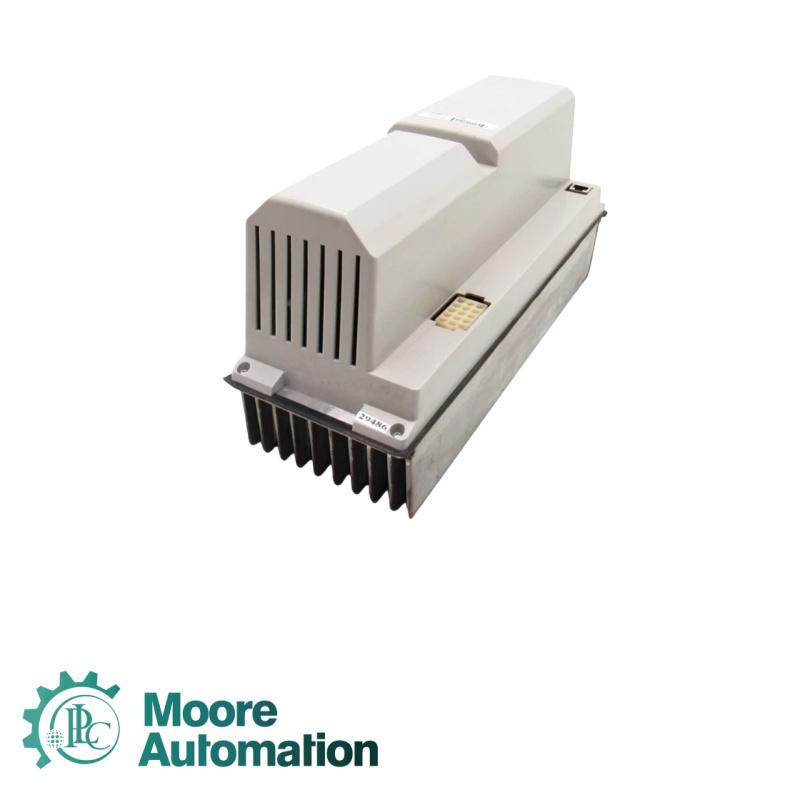

ABB 3HAB8101-11/10C DSQC346E AC Servo Drive Unit

Key Features & Benefits

Product parameter:

Rated Input Voltage: 3-phase AC 400–480 V (±10%); 50/60 Hz
Input Current (RMS): 18 A (max.)
Output Current: Continuous 15 A; Peak 45 A (3x overload, 2 seconds)
Power Rating: 7.5 kW (400 V AC input, matched with ABB IRB series robot servo motors)
Position Control Accuracy: ±0.0008° (for robot joint rotation); Repeatability: ±0.001 mm (matching robot end-effector precision)
Speed Regulation Range: 0–4500 RPM (rated motor speed range)
Digital Inputs: 8 configurable channels (24 V DC, sinking type); Input impedance 10 kΩ; Response time ≤ 3 µs (for emergency stop signal)
Digital Outputs: 6 channels
Supply Voltage (Control Circuit): 24 V DC ±10% (redundant power input support); Power consumption: Typical 10 W, Max. 15 W
Potential Separation: Between power stage and control/communication circuit: 3.5 kV AC
Isolation Test Voltage: 3.5 kV AC
