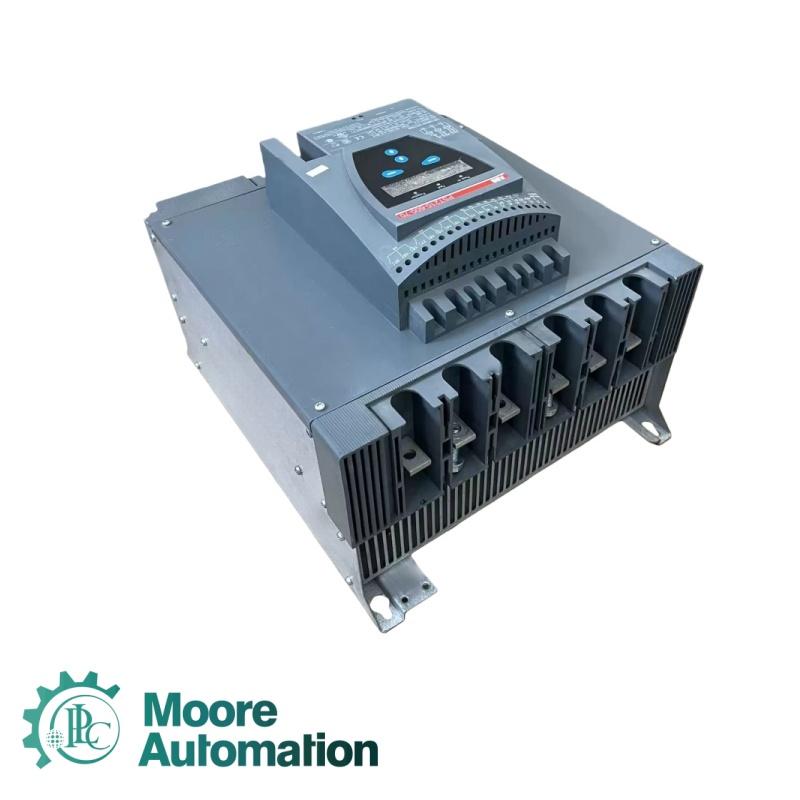

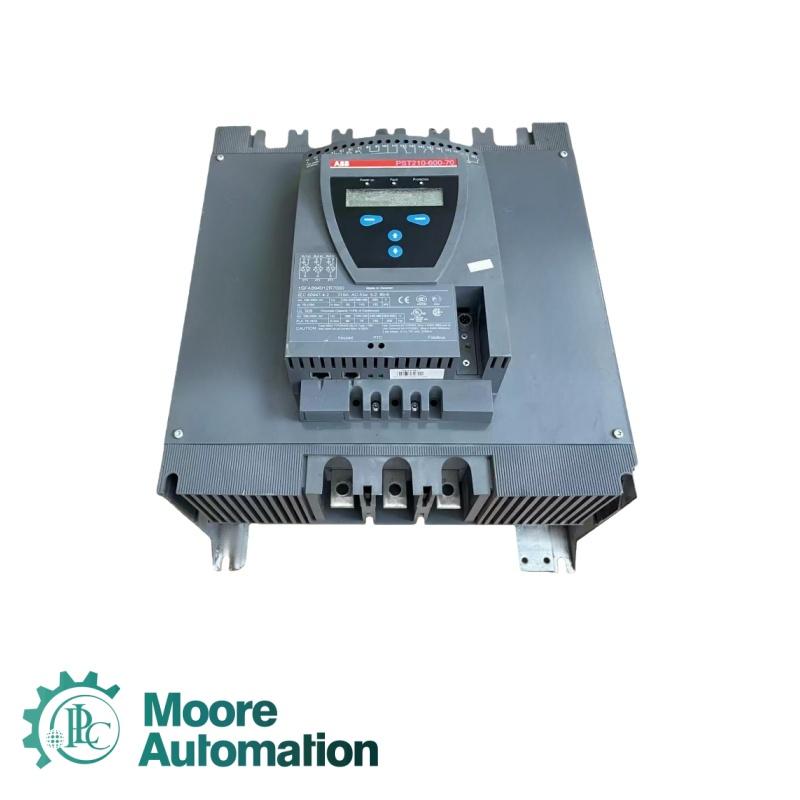

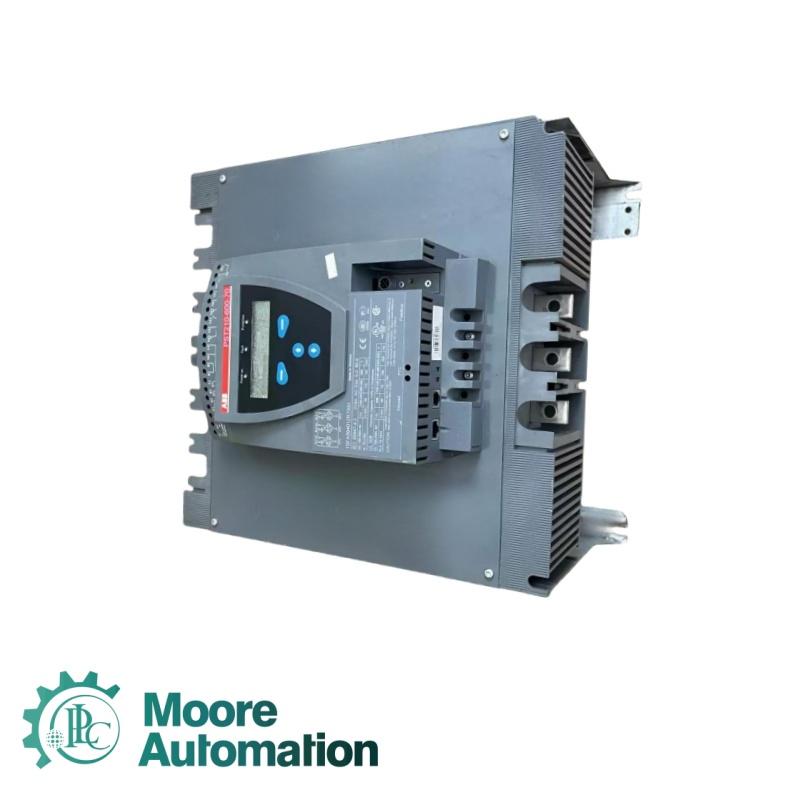

ABB 1SFA894012R7000 PST210-600-70 soft starter

Model:1SFA894012R7000 PST210-600-70

Product Type:   soft starter

Product parameter:

Dimensions
Product Net Width: 360 mm
Product Net Height: 420 mm
Product Net Depth / Length: 270 mm
Product Net Weight: 21.5 kg
Technical Data
Rated Operational Voltage: Main Circuit 208 ... 600 V AC
Rated Control Supply Voltage (Us): 100 ... 250 V AC
Rated Control Circuit Voltage (Uc): DC Operation 24 V
Rated Frequency (f): 50 / 60 Hz
Main Circuit Frequency: 50 / 60 Hz
Rated Operational Power – In-Line Connection (Pe):
(400 V) 110 kW
(500 V) 132 kW
Rated Operational Current – In-Line Connection (Ie): 210 A
Rated Operational Power – Inside Delta Connection:
at 400 V: 184 kW
at 500 V: 250 kW
Rated Operational Current – Inside Delta Connection: 360 A
Service Factor Percentage: 115 %
Overload Protection: Built-in electronic overload protection
Integrated Electronic Overload: Yes
Starting Capacity at Maximum Rated Current (Ie): 3 × Ie for 15 s
Ramp Time: 0 ... 120 s / 1 ... 120 s
Initial Voltage During Start: 30 ... 70 %
Step Down Voltage (Special Ramp): 100 ... 30 %
Current Limit Function: 1.5 ... 7 × Ie
Switch for Inside Delta Connection: Yes
Relay Functions:
Run Signal Relay: Yes
By-pass Signal Relay: Yes
Fault Signal Relay: Yes
Overload Signal Relay: Yes
Analog Outputs:
0…10 V
0…20 mA
4…20 mA
Signal Indications (LED):
Ready to Start / Standby ON: Green
Protection: Yellow
Fault: Red
Number of Starts per Hour (at 3.5 × Ie for 7 s, 50% Duty Cycle): 30
Communication: FieldBusPlug (Standard)
Degree of Protection:
According to IEC 60529, IEC 60947-1, EN 60529 — Main Terminals: IP00
Terminal Type: Main Circuit: Bars
Connecting Capacity (Main Circuit):
Hole Diameter: 10.2 mm
Width & Thickness: 20 × 5 mm
Connecting Capacity (Control Circuit):
Rigid 1 × 2.5 mm²
Rigid 2 × 1.5 mm²
Connecting Capacity (Supply Circuit):
Rigid 1 × 2.5 mm²
Tightening Torque:
Control Circuit: 0.5 N·m
Main Circuit: 28 N·m
Supply Circuit: 0.5 N·m
Product Main Type: PST210
Environmental Conditions
Ambient Air Temperature (Operation): 0 ... +50 °C
Ambient Air Temperature (Storage): −25 ... +70 °C
