AB 2711P-T15C21D8S PanelView Plus 7 terminal

Contact info

Product info

Part Number:  2711P-T15C21D8S

Manufacturer: Allen-Bradley

Condition: Brand New & in Stock

Origin: USA
Service One-stop
Shipping Detail: Fedex and UPS etc
Warranty: 12 months
Product Type: managed Layer 2 IE switch

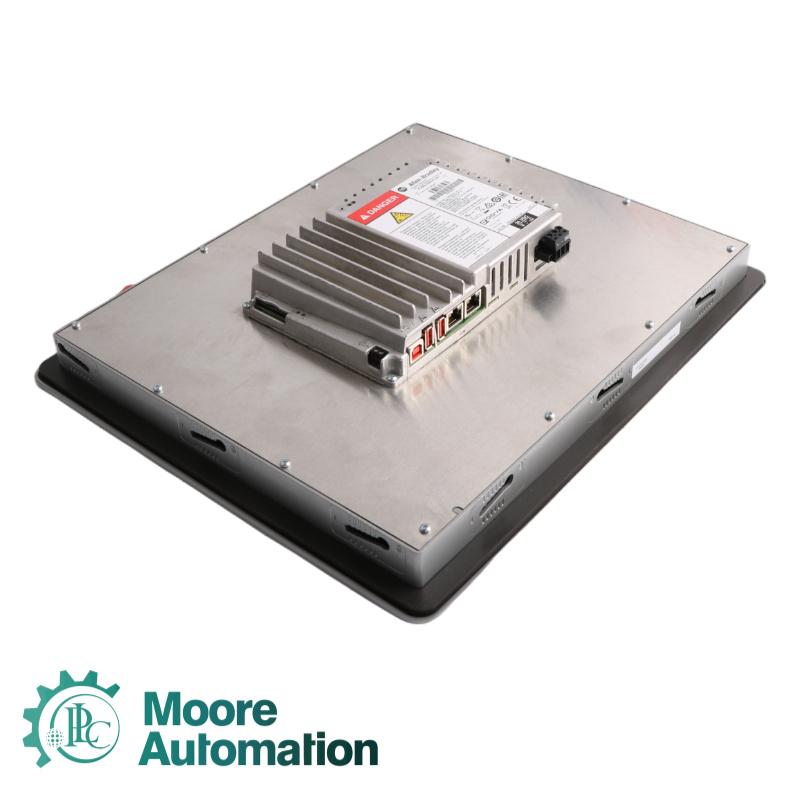

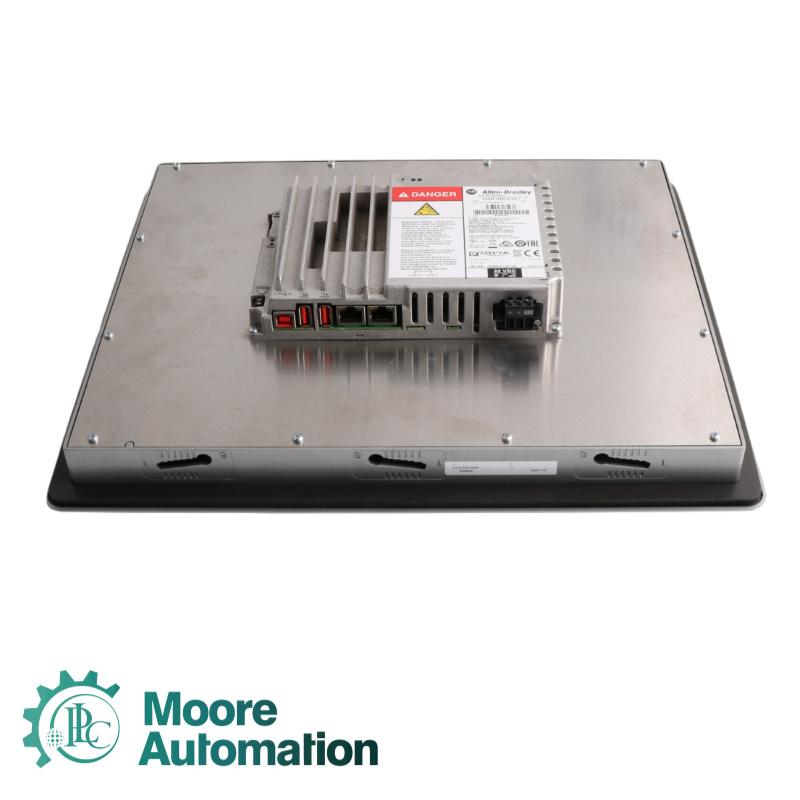

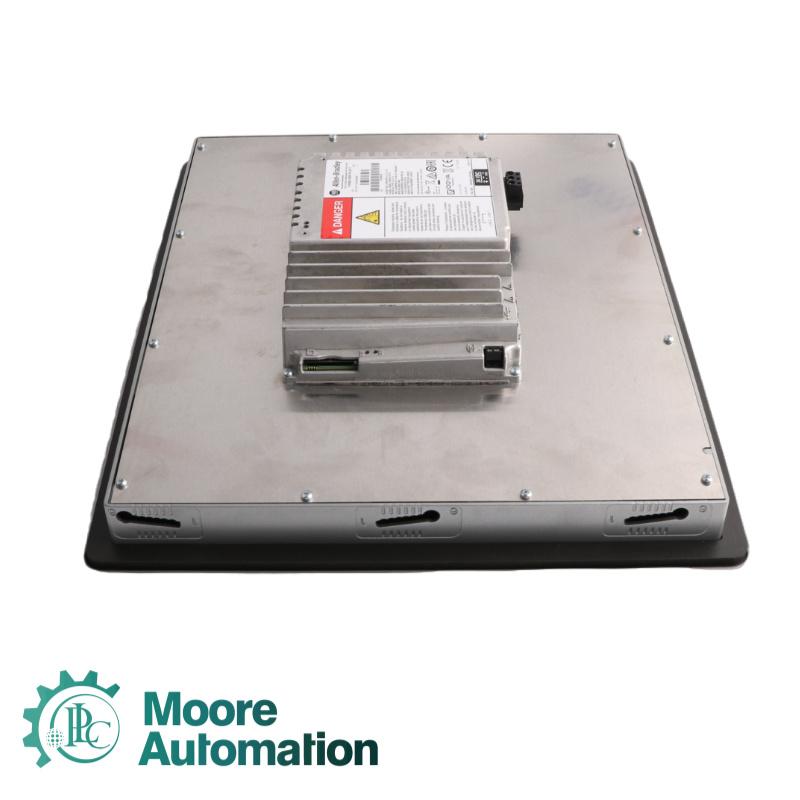

This device is a 2711P-T15C21D8S PanelView Plus 7 terminal that features:

The Allen-Bradley 2711P-T15C21D8S terminal is a PanelView Plus 7 series terminal. It is a standard type of PanelView Plus 7 terminal that can display application data. The 2711P-T15C21D8S terminal’s screen is 15 inches wide with color graphics. It operates with DC power. The 2711P-T15C21D8S terminal comes with 512 MB of RAM and with 512 MB of non-volatile memory.
Manufacturer: Allen Bradley
Category: Panelviews
Product Line: Panelview Plus 7
Part Number: 2711P-T15C21D8S
UPC: 887172715440
Weight: 5.00 lbs (2.27 kg)
Display Size: 15 in.
Product Family: PanelView Plus 7 Standard terminals
Operator InputL: Touch
Display Type: Color active-matrix TFT
Display Area: 304 x 228 mm
Resolution: 1024 x 768 XGA, 18-bit color graphics
Touch: Analog resistive Actuation: 1 million presses; operating force: 100 g
System Memory: 512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory)
Communication ports: One (1) Ethernet, Two (2) USB host
Input Voltage range: 18-30 VDC
Power Consumption: 50 W max (2.1 A at 24V DC)
Backlight: White light-emitting diode, solid state Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable
Input Type:Touchscreen
Display Color:TFT Color Display
Memory:512 Mb
Input Voltage:24 VDC
