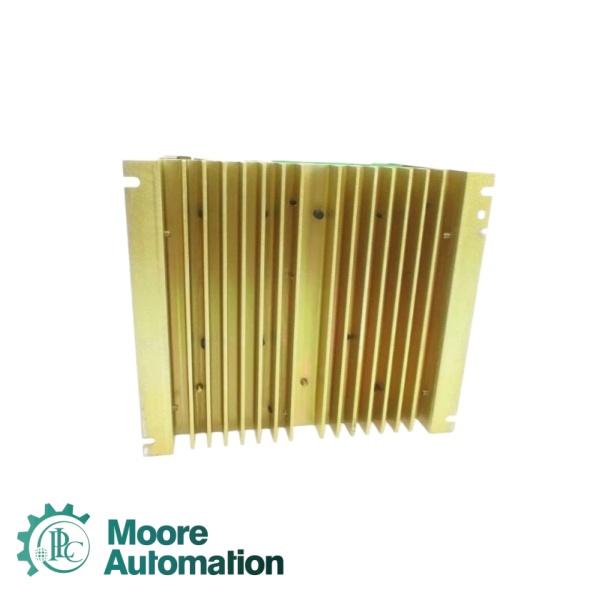

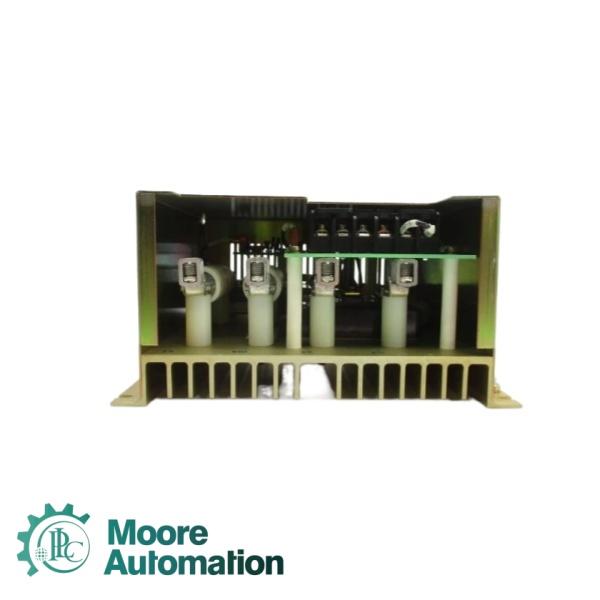

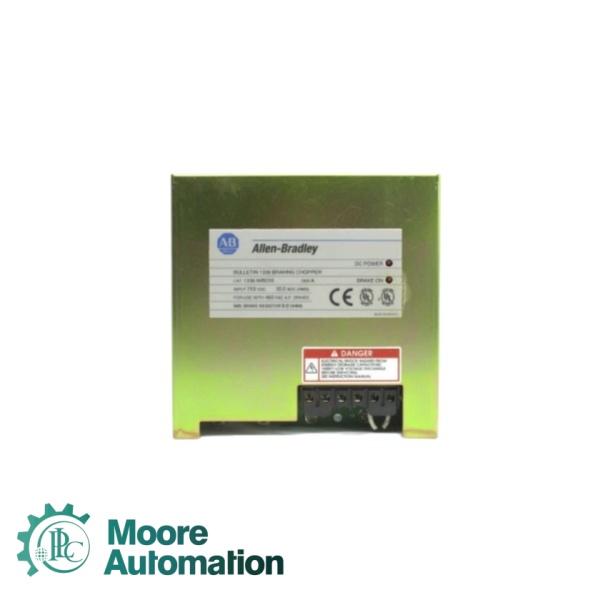

AB 1336-WB035 Dynamic Braking Units

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Product Origin:
USA
Lead Time:
3-5 days

Product Detail

Ask For Quotation

Name：Yuki

Email：

sales6@askplc.com

Whatsapp：

+86 17359287459

Item Info

★The Allen-Bradley 1336-WB035 is a heavy-duty Dynamic Braking Chopper Module manufactured. It is specifically designed to expand the braking capabilities of Allen-Bradley Bulletin 1336 adjustable frequency AC drive systems, including the popular 1336 PLUS, PLUS II, IMPACT, and FORCE variable frequency drives (VFDs).The core operational function of this module is to handle the regenerative energy created when an electric motor decelerates rapidly or experiences a heavy overhauling load. During these deceleration phases, the motor acts as a generator, pushing electrical energy back into the drive and threatening to cause a DC bus overvoltage fault. The 1336-WB035 acts as an automatic voltage supervisor: its high-speed Insulated Gate Bipolar Transistor (IGBT) chopper logic continuously monitors the internal DC bus. As soon as the DC bus hits its activation threshold of 750V DC, the transistor turns on instantly, routing the excess electrical energy safely out of the drive and into an external, high-power dynamic braking resistor bank.

Data Info

DC Bus Turn-on / Conduction Voltage:	750 V DC
Continuous Current Rating:	35 A DC (RMS Continuous)
Maximum Module Heat Dissipation:	Approximately 115 W at peak switching threshold
Operating Ambient Temperature Limits:	-10°C to +40℃(14℉to104℉) without derating
Storage / Transit Temperature Limits:	-40℃to+70°C(-40℉to158℉)

FAQ

Q: What is the core advantage of the Allen‑Bradley (AB) ecosystem over mixing components from different brands?

A: The main advantage is deep, seamless integration across the entire automation chain.

AB’s Logix control platform (e.g., ControlLogix, CompactLogix) shares a common development environment (Studio 5000), tag-based memory structure, and network protocols. This eliminates the need for custom gateways, reduces programming complexity, and provides unified diagnostics. When you use AB drives (PowerFlex), HMIs (PanelView), and safety controllers, you get plug‑and‑play interoperability, faster commissioning, and single‑source support – something that is very difficult to achieve with a multi‑vendor approach.

Q: How does Allen‑Bradley handle cybersecurity in modern industrial control systems?

A: AB has embedded cybersecurity at multiple levels.

· Defense-in-depth design includes features like controller-level identity validation, digital signatures for firmware, and user role-based access control (Rockwell Automation Security Framework).

· Converged Plantwide Ethernet (CPwE) architectures, developed jointly with Cisco, provide network segmentation, firewalls, and intrusion detection.

· AB controllers also support secure communication protocols (e.g., CIP Security™ over EtherNet/IP) and secure firmware updates.

For critical assets, the FactoryTalk® AssetCentre centralizes security policies, audit logs, and disaster recovery. Regular security advisories and patching tools are provided through Rockwell’s Knowledgebase.

Q: Does Allen‑Bradley offer high availability and redundancy for mission‑critical processes?

A: Yes, AB provides several redundancy solutions:

·ControlLogix Redundancy uses two chassis (primary/secondary) with synchronised memory and bumpless switchover for I/O, controller, and network failures. Typical switchover time is less than 20 ms.

·For applications requiring high process availability, the PlantPAx® DCS (Distributed Control System) builds on ControlLogix with redundant power supplies, I/O (e.g., 1756‑Redundant I/O), and Ethernet infrastructure.

·Drives like PowerFlex 755 offer embedded redundancy options.

These solutions are widely used in oil & gas, water/wastewater, and power generation where unexpected downtime is not acceptable.
