Introduction

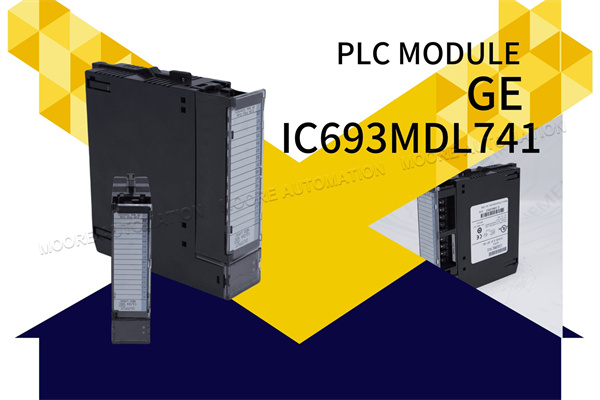

The GE IC693MDL741 is a 16-point DC output module specifically designed for the Series 90-30 Programmable Logic Controller (PLC). Operating on 12/24V DC negative logic, this module delivers 0.5A per output point to drive various industrial loads. With its high reliability and efficient current sinking capability, it's widely used in automation systems requiring precise control of solenoids, relays, and other DC devices.

This article provides detailed information about the key features, technical specifications, and typical applications of the IC693MDL741, helping you understand its advantages in industrial control systems.

PLC Module Overview

Programmable Logic Controller (PLC) modules are core components in industrial automation, providing digital and analog I/O connections for machinery control. The GE Series 90-30 PLC is a robust and flexible system, and the IC693MDL741 module further enhances its functionality by adding 16 high-performance DC output points.

Key advantages of this module include:

✔ Negative logic operation (current sinking) for safer and more reliable control

✔ Two isolated output groups (8 points per group) with independent common terminals

✔ Compact design for easy integration into PLC racks

✔ High current capacity (0.5A per point) for demanding loads

IC693MDL741 Technical Specifications

The GE IC693MDL741 is a 16-point 12/24V DC current-sinking output module with the following specifications:

Electrical Characteristics

Voltage range: 12-24V DC

Output type: Negative logic (current sinking)

Current rating: 0.5A per point (1A per common group)

Maximum inrush current: 2A per point (100ms duration)

Isolation voltage: 500V AC between field and logic sides

Mechanical & Environmental Characteristics

Operating temperature: 0°C to 60°C

Storage temperature: -40°C to 85°C

Humidity range: 5% to 95% (non-condensing)

Mounting: Compatible with Series 90-30 PLC racks

Compatibility & Wiring

Compatible systems: GE Series 90-30 PLC

Wiring method: Screw terminals for easy installation

LED indicators: Per-point status display for troubleshooting

GE IC693MDL741 Applications

This module is suitable for various industrial automation scenarios, including:

1. Machinery Control

Controlling solenoid valves, relays, and contactors in manufacturing equipment

Driving conveyor belts, packaging machines, and assembly lines

2. Process Automation

Managing pump and motor control systems in water treatment plants

Operating HVAC systems and industrial fans

3. Material Handling

Powering sorting mechanisms and robotic arms in warehouses

Controlling loading/unloading equipment in logistics systems

GE IC693MDL741 Key Advantages

✅ High reliability: Industrial-grade design with strong noise immunity

✅ Easy integration: Perfect compatibility with Series 90-30 PLCs reduces installation complexity

✅ Efficient current sinking: Safer operation by sinking current rather than sourcing

✅ LED diagnostics: Per-point status indicators simplify troubleshooting

Conclusion

The GE IC693MDL741 PLC module is a versatile and rugged solution for industrial automation, offering 16 high-current DC outputs with negative logic operation. Its durable design, easy integration, and diagnostic features make it the preferred choice for engineers using GE Series 90-30 PLCs.

Whether used for machinery control, process automation, or material handling, this module ensures reliable performance in demanding industrial environments.

Need replacement modules or technical support? Contact authorized GE suppliers, or consider upgrading to VersaMax or RX3i modules for enhanced capabilities.
